0916 287 068 Amply Mixer 240W Fonestar PROX-240S
Trang Chủ >>
Âm thanh thông báo >> Âm thanh Fonestar >> Amply Mixer 240W Fonestar PROX-240S
Mã số:23415524

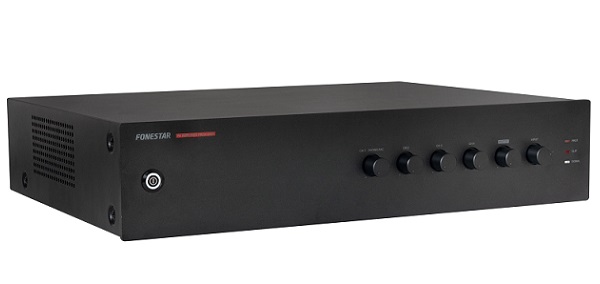

Amply Mixer 240W Fonestar PROX-240S
- Tích hợp sẵn cổng USB/Đầu phát FM
- Công suất ngõ ra: 240W
- Đáp tuyến tần số: 40-20.000 Hz (-10 dB)
- Điều chỉnh âm sắc Bass/Treble
- Độ méo tiếng THD+N: < 1% @ 1 kHz
- Trở kháng: 4Ω và 100 V euroblock
- Nguồn điện: 230V AC
- Kích thước: 433 x 89 x 360 mm
Thông số kỹ thuật
| Model | PROX-240S |
| Features | PA Amplifier Microphone inputs with mix, gain and priority level control. Tone controls. 100 V and 4 Ω outputs. |
| Power | 240 W RMS |
| Response | 40-20,000 Hz (-10 dB) |
| Distortion | THD+N: < 1% @ 1 kHz |
| S/n ratio | >77 dB |
| Protections | Overcurrent, DC and short-circuit at the output |
| Inputs | CH 1 balanced mic/line with 48V Phantom, Combo connector (XLR + 6.3mm) and euroblock CH 2, 4 and 4 mic/line balanced with 48V Phantom. Euroblock connector Mic signal level: 6 mV RMS (-44 dBV) / 600 Ω Line signal level: 250 mV RMS (-12 dBV) / 100k Ω 2 AUX. 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω 1 emergency. Euroblock connector. Signal level loudspeaker line 100 V 1 Mute (Emergency Priority) by contact closure. Euroblock connector |
| Outputs | 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV) 100 V or 4 Ω speaker output. Connector screw terminals |
| Impedance | 4 Ω and 100 V (42 Ω) line |
| Functions | Input priority (voice over VOX inputs): 100V Emergency input with highest priority, attenuates all other inputs. Mute by contact closure, attenuates all inputs except the 100 V Emergency input. Channel 1 with priority over all other inputs, level selectable. Channel 2, 3 and 4 with priority over auxiliary inputs, level selectable. Other functions: Power on, protection, signal peak and output signal indicator lights Temperature-controlled forced ventilation cooling |
| Controls | Microphone volume Mic/line/phantom selector Master volume Aux input selector Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz) Microphone gain Priority activation signal level (VOX) |
| Operating temperature | Operation: 0º ~ 40ºC |
| Maximum humidity | 95% |
| Power supply | 230/115 V AC 50-60 Hz, 480 W Fuse AC 230 V 4 A / 115 V 8 A |
| Dimensions | 433 x 89 x 360 mm depth. 2U 19” rack |
| Weight | 11.3 kg |
- Bảo hành: 24 tháng.
Giá: Vui lòng gọi
