0916 287 068 802.11ax (WiFi 6) Dual-Radio PoE Access Point ZyXEL NWA90AX
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng ZyXEL >> 802.11ax (WiFi 6) Dual-Radio PoE Access Point ZyXEL NWA90AX
Mã số:04334858

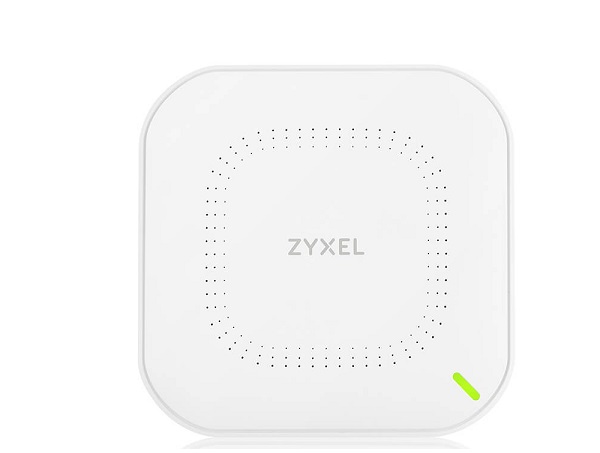

802.11ax (WiFi 6) Dual-Radio PoE Access Point ZyXEL NWA90AX
- The NWA90AX is truly the right choice for SMB users looking to upgrade to 11ax (WiFi 6) access points without an expensive price tag. It supports WiFi 6 in both 2.4 GHz and 5 GHz frequencies, which is aimed to empower you to enjoy all the best things WiFi 6 has to offer such as faster speeds even when congested or in high density environments, expanded range in your wireless network, and increased capacity for IoT deployments.
- Wireless speed: 575Mbps (2.4GHz), 1200Mbps (5GHz).
- Antenna type: 2x2 + 2x2 MIMO embedded antenna.
- Ethernet port: 1 x 10/100/1000M LAN.
Đặc tính kỹ thuật
| Wireless | |
| Standard | IEEE 802.11 ax/ac/n/g/b/a |
| MIMO | MU-MIMO |
| Wireless speed | 2.4GHz: 575Mbps 5GHz: 1200Mbps |
| Frequency band | 2.4GHz: • USA (FCC): 2.412 to 2.462 GHz • Europe (ETSI): 2.412 to 2.472 GHz 5GHz: • USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz |
| Bandwidth | 20-, 40-, 80-MHz |
| Conducted typical transmit output power | US (2.4 GHz/5 GHz): 23/26 dBm EU (2.4 GHz/5 GHz): 20/25 dBm |
| RF Design | |
| Antenna type | 2x2 + 2x2 MIMO embedded antenna |
| Antenna gain | 2.4GHz: 3dBi 5GHz: 4dBi |
| Minimum receive sensitivity | Min. Rx sensitivity up to -99 dBm |
| WLAN Feature | |
| Band steering | Yes |
| WDS/Mesh | Yes |
| Fast roaming | Yes |
| DCS | Yes |
| Security | |
| Encryption | WEP/WPA/WPA2-PSK/WPA3 |
| Authentication | WPA/WPA2-Enterprise/EAP/IEEE 802.1X/RADIUS authentication |
| Access management | L2-isolation/MAC filtering/Rogue AP detection |
| Networking | |
| IPv6 | Yes |
| VLANs | Yes |
| WMM | Yes |
| U-APSD | Yes |
| Management | |
| Operating mode | Cloud managed/standalone |
| ZON Utility | • Discovery of Zyxel switches, APs and gateways • Centralized and batch configurations + IP configuration + IP renew + Device reboot + Device locating + Web GUI access + Firmware upgrade + Password configuration |
| Zyxel Wireless Optimizer | WiFi AP planning |
| Web UI/CLI | Yes |
| Physical Specifications | |
| Dimensions (WxDxH) | 140 x 140 x 37.5 mm |
| Weight | 290g |
| Included accessories | • Power adapter • Mount plate • Mounting screws |
| MTBF (hr) | 1,010,980 |
| Physical Interfaces | |
| Ethernet port | 1 x 10/100/1000M LAN |
| Power | Input: AC 100 - 240 V - 50/60 Hz 0.3A; Output: DC +12V 1.5A PoE (802.3at): power draw 16W |
| Environmental Specifications | |
| Operating | Temperature: 0°C to 50°C/32°F to 122°F Humidity: 10% to 90% (non-condensing) |
| Storage | Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 10% to 90% (non-condensing) |
| Certifications | |
| Radio | FCC Part 15C, FCC Part 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2 |
| EMC | FCC Part 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438 |
| Safety | EN 60950-1, IEC 60950-1; BSMI CNS14336-1 |
- Bảo hành: 36 tháng.
Giá: Vui lòng gọi
