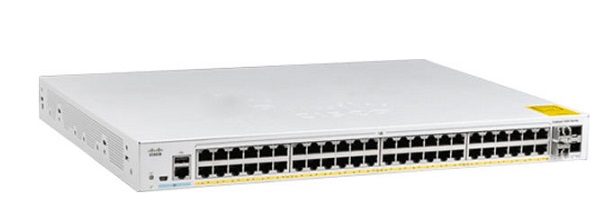

48-port Gigabit Ethernet + 4-port 10G SFP Uplinks PoE Switch Cisco C1000-48P-4X-L

Trang Chủ >> Thiết bị mạng >> Thiết bị mạng Cisco >> 48-port Gigabit Ethernet + 4-port 10G SFP Uplinks PoE Switch Cisco C1000-48P-4X-L
Mã số:04216103
48-port Gigabit Ethernet + 4-port 10G SFP Uplinks PoE Switch Cisco C1000-48P-4X-L

48-port Gigabit Ethernet + 4-port 10G SFP Uplinks PoE Switch Cisco C1000-48P-4X-L

- 48 x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4 x 10G SFP+ uplinks.

- CLI and/or intuitive web UI manageability options.

- Network monitoring through sampled flow (sFlow).

- Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard.

- Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console acces.

- Reliability with a higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty support (E-LLW).

Specifications

Model C1000-48P-4X-L
General
Gigabit Ethernet / FE ports 48 10/100/1000 RJ45 PoE+
Uplink interfaces 4 SFP+
PoE+power budget 370W
Fanless N
Dimensions (WxDxH) 17.48 x 13.78 x 1.73 inch
Weight 5.43kg
RJ-45 Ethernet 1
USB mini-B 1
USB-A port for storage and Bluetooth console 1
Memory and processor
CPU ARM v7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Performance
Forwarding bandwidth 88Gpbs
Switching bandwidth 176 Gbps
Forwarding rate (64‑byte L3 packets) 130.94 Mpps
MAC addresses 16000
IPv4 unicast direct routes 542
IPv4 unicast indirect routes 256
IPv6 unicast direct routes 414
IPv6 unicast indirect routes 128
IPv4 multicast routes and IGMP groups 1024
IPv6 multicast groups 1024
IPv4/MAC security ACEs 600
IPv6 security ACEs 600
Maximum active VLANs 256
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Dying Gasp Yes
MTBF in hours 856,329
Environmental
Up to 5,000ft (1500 m) -5 to 45 deg C
Upto 10,000 (3000 m) -5 to 40 deg C
Operating altitude 10,000 ft (3,000m)
Operating relative humidity 5% to 90% at 40 deg C (non-condensing)
Storage temperature -13 to 158F (-25 to 70C)
Storage altitude 15,000 ft (4500m)
Storage relative humidi 5% to 95% at 65 deg C (non-condensing)
Electrical
Voltage (auto ranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.37A to 0.64A
Power rating (maximum consumption) 0.48 kVA
Safety and compliance
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011
EMC: Emissions 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. government certifications USGv6 and IPv6 Ready Logo
Connectors and interfaces
Indicator LEDs Per-port status: link integrity, disabled, activity
System status: System
Console cables CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Models have external power supply

- Bảo hành: 12 tháng.

Giá: 78.888.000 VND (Đã bao gồm VAT)
