26-Port Smart PoE+ Switch LINKSYS LGS326MP-AP

Trang Chủ >> Thiết bị mạng >> Thiết bị mạng LINKSYS >> 26-Port Smart PoE+ Switch LINKSYS LGS326MP-AP
Mã số:04032865

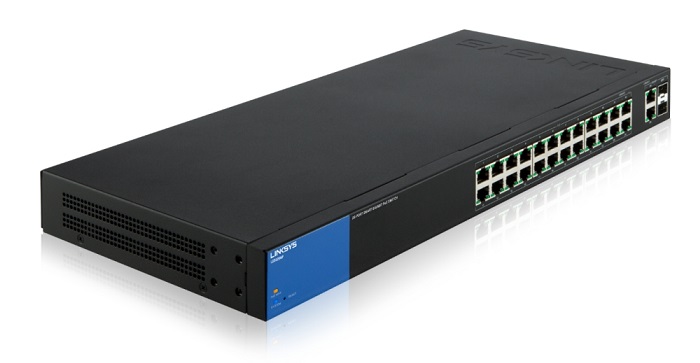

26-Port Smart PoE+ Switch LINKSYS LGS326MP-AP

26-Port Smart PoE+ Switch LINKSYS LGS326MP-AP

Ports

- Total System Ports: 26GE

- Copper FE/GE Ports (RJ45): g01–g12, g13–g24

- Combo Ports (RJ45 + SFP): 2 combo on ports g25, g26

- Number of Ports with PoE+ Support: 24

Forwarding Rate

- 38.69 Mpps

Switching Capacity

- 52 Gbps

MAC Address Table Size

- 8K

Link Aggregation

- IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group

VLAN

- Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication

Number of VLANs Supported

- 128 active VLANs (4,096 range)

Auto Voice VLAN

- Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

IGMP Snooping

- IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups

HOL Blocking Prevention

- Head of line (HOL) blocking prevention

Port Mirroring

- Traffic on multiple ports (up to 4 ports) can be mirrored to another port for analysis with a network analyzer

Security Features

- 802.1x Radius authentication

- DHCP snooping

- IP-MAC binding

- Port security supports limited dynamic lock and locked MAC address

- Management access control

Storm Control

- Broadcast, flooding, and multicast

Quality Of Service

- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based

Quality Of Service

- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based

RMON

- Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis

Management Interface

- HTTP

- HTTPS

Other Management

- Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP

SNMP

- Version 1

- Version 2c

- Version 3

General

- Power Input: 100–240V

- Power Dedicated to PoE+: 384W

- Dimensions (LxWxH): 440 x 200 x 44 mm

- Weight: 3.14kg

- Bảo hành: 36 tháng.



Giá: Vui lòng gọi (Đã bao gồm VAT)

Số lượng :

Thêm vào giỏ Mua ngay
