0916 287 068 26-port Gigabit Smart Managed PoE Switch D-Link DGS-1100-26MPV2
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng D-Link >> 26-port Gigabit Smart Managed PoE Switch D-Link DGS-1100-26MPV2
Mã số:04052659

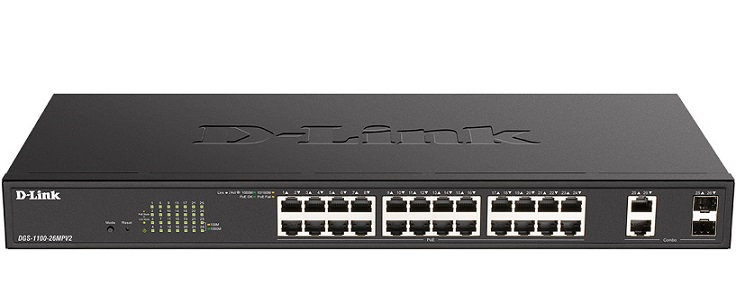

26-port Gigabit Smart Managed PoE Switch D-Link DGS-1100-26MPV2
Physical
- 24 x 10/100/1000Base-T 802.3af/802.3at PoE
- Port 1-24 up-to 30W per port
- 2 x Combo GE/SFP
Green Technology
- Link status detection
- IEEE 802.3az Energy-Efficient Ethernet compliant
- Time-based PoE
Advanced Features
- IGMP Snooping
- Bandwidth Control
- IEEE 802.1Q VLAN traffic segregation
- Port-based VLAN
- IEEE 802.1p Quality of Service
- Surveillance VLAN
- Voice VLAN
Management Features
- Client-based utility or web-based GUI
- Built-in SNMP MIB
Đặc tính kỹ thuật
| Model | DGS-1100-26MPV2 |
| General | |
| Hardware Version | A1 |
| Size | 11-inch desktop (rackmount kit included), 1U height |
| Number of Ports | 24 x 10/100/1000Mbps (PoE) 2 x Combo GE/SFP |
| Port Functions | IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3af/at/bt IEEE 802.3az compliant Auto-negotiation Auto MDI/MDIX IEEE 802.3x Flow Control supports full-duplex mode Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps) |
| Performance | |
| Switching Capacity | 52 Gbps |
| Maximum Forwarding Rate | 38.69 Mpps |
| MAC Address Table Size | 8K entries |
| Packet Buffer | 4.1 Mbits |
| Flash Memory | 16 Mbytes |
| PoE | |
| PoE Standard | IEEE 802.3af/ 802.3at |
| PoE Capable Ports | Ports 1 to 24 |
| PoE Power Budget | 370 W |
| Power Consumption | |
| Standby Mode | 15.2 W |
| Maximum Power Consumption | 454.1 W (PoE on) 26.5 W (PoE off) |
| Physical | |
| Power Input | 100 to 240 VAC, 50 to 60 Hz internal power supply |
| MTBF | 317,777 hours |
| Acoustics | 50.5 dB(A) (high speed) 35.2 dB(A) (low speed) |
| Heat Dissipation | 287.0 BTU/hr |
| Weight | 2.8 kg |
| Dimensions | 440 x 208 x 44 mm |
| Ventilation | Smart Fan |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 0% to 95% non-condensing |
| Storage Humidity | 0% to 95% non-condensing |
- Bảo hành: 3 năm.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
