0916 287 068 16-Port Gigabit Smart Managed Switch D-Link DGS-1100-16V2
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng D-Link >> 16-Port Gigabit Smart Managed Switch D-Link DGS-1100-16V2
Mã số:04058074

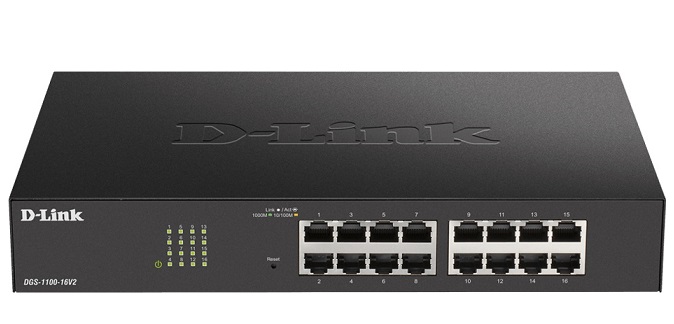

16-Port Gigabit Smart Managed Switch D-Link DGS-1100-16V2
Physical
- 16 x 10/100/1000BASE-T ports
- Fanless design for silent operation
Green Technology
- Link status detection
- IEEE 802.3az Energy-Efficient Ethernet compliant
Advanced Features
- IGMP Snooping
- Bandwidth Control
- IEEE 802.1Q VLAN traffic segregation
- Port-based VLAN
- IEEE 802.1p Quality of Service
- Surveillance VLAN
- Voice VLAN
Management Features
- Client-based utility or web-based GUI
- Built-in SNMP MIB
Đặc tính kỹ thuật
| Model | DGS-1100-16V2 |
| General | |
| Hardware Version | A1 |
| Size | 11-inch desktop (rackmount kit included), 1U height |
| Number of Ports | 16 x 10/100/1000 Mbps |
| Port Functions | IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3z for Gigabit fiber IEEE 802.3az compliant Auto-negotiation Auto MDI/MDIX IEEE 802.3x Flow Control supports full-duplex mode Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps) |
| Performance | |
| Switching Capacity | 32 Gbps |
| Maximum Forwarding Rate | 23.81 Mpps |
| MAC Address Table Size | 8K entries |
| Packet Buffer | 4.1 Mbits |
| Flash Memory | 16 Mbytes |
| Power Consumption | |
| Standby Mode | 3.4 W |
| Maximum Power Consumption | 10.1 W |
| Physical | |
| Power Input | 100 to 240 V AC, 50 to 60 Hz internal power supply |
| MTBF | 710,519 hours |
| Acoustics | 0 dB(A) |
| Heat Dissipation | 34.46 BTU/hr |
| Weight | 1.21 kg |
| Dimensions | 280 x 180 x 44 mm |
| Ventilation | Fanless |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 0% to 95% non-condensing |
| Storage Humidity | 0% to 95% non-condensing |
- Bảo hành: 3 năm.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
