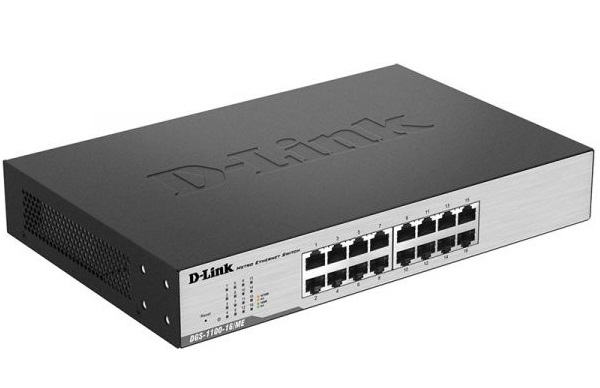

16-Port 1000Base-T Managed L2 Metro Ethernet Switch D-Link DGS-1100-16/ME

16-Port 1000Base-T Managed L2 Metro Ethernet Switch D-Link DGS-1100-16/ME

Size

- 11-inch Desktop/Rackmount Size, 1U Height

Number of Ports

- 16 10/100/1000 Mbps

Port Functions

- IEEE 802.3 compliant

- IEEE 802.3u compliant

- IEEE 802.3ab compliance

- IEEE802.3af/802.3at (only for DGS-1100-24P/ME, ports 1 through 12)

- Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)

- Auto-negotiation

- Auto MDI/MDIX

- IEEE 802.3x Flow Control supports Full-Duplex mode

- IEEE 802.3az compliant

Performance

- Switching Capacity: 32 Gbps

- Maximum Forwarding Rate: 23.81 Mpps

- MAC Address Table Size: 8K Entries

- Packet Buffer: 512 Kbits

- Flash Memory: 8 Mbyte

LEDs

- Power (per device)

- Link/Activity/Speed (per port)

Power Consumption

- Maximum Power Consumption: 9.31 watts

- Standby Mode: 9.31 watts

Software Features

VLAN

- Port-based VLAN

- 802.1Q Tagged VLAN

- Auto Surveillance VLAN

- Voice VLAN

- Asymmetric VLAN

- VLAN Group

- Supports 128 static VLAN groups

- Max. 4094 VIDs

- Multicast VLAN

L2 Features

- Flow Control

- 802.3x Flow Control

- HOL Blocking Prevention

- Jumbo Frames up to 9216 Bytes

- IGMP Snooping

- IGMP v1/v2/v3 awareness Snooping

- Supports 64 Groups

- IGMP Snooping Querier

- MLD Snooping

- MLD v1/v2 awareness snooping

- Supports 64 groups

- MLD snooping querier

- 802.3ad Link Aggregation:

- Loopback Detection

- Cable Diagnostics

- LLDP

- Port Mirroring

- One-to-One

- Many-to-One

- Statistics

- Tx Ok

- Tx Error

- Rx Ok

- Rx Error

- Spanning Tree Protocol

- 802.1D STP

- 802.1w RSTP

Quality of Service (QoS)

- 802.1p Quality of Service

- 4 queues per port

- Queue Handling

- Strict

- Weighted Round Robin (WRR)

- Port-based Bandwidth Control (Rate Limiting)

- Ingress: 8Kbps, Egress: 64Kbps

Security

- D-Link Safeguard

- Traffic Segmentation

- DoS Attack Prevention

- Broadcast/Multicast/Unknown Unicast Storm Control

Management

- Command line interface (via Telnet)

- D-Link Network Assistant Utility

Green Technology

- Power Saving by

- Link Status

- LED Shut-Off

- Port Shut-Off

- System Hibernation

- Compliant with IEEE 802.3az Energy Efficient Ethernet

- Bảo hành: 36 tháng.
