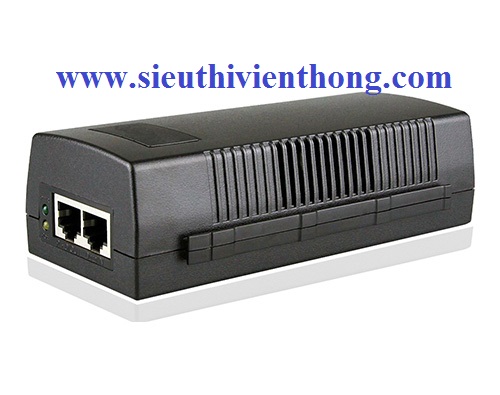

0916 287 068 01-Port 10/100Mbps PoE injector NETONE NO-AT-N482
01-Port 10/100Mbps PoE injector NETONE NO-AT-N482
- 01-Port 10/100Mbps PoE injector.
- Nguồn điện: 48VDC/2A.
- Dùng cấp nguồn qua mạng cho các thiết bị như Camera IP, thiết bị Wifi…
- Công suất: 30 Watt.
- 2x 10/100Mbps RJ45 ports
- Compatible with IEEE802.3 AF/AT standard
- Single port power: 30W
- Support network port, the power input port features lightning-proof (meet the secondary lightning protection)
- Support power supply through spare line pairs4/5 (+), 7/8 (-) or data line pairs1/2(+), 3/6(-)
- Supply power to millions HD webcam through Cat5 Ethernet cable
- No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall
Specifications
|
Product Name |
Single Port 100M PoE Injector |
|
Model |
NO-AT-N482 |
|
Connector Type |
10/100M copper cable RJ45 PoE port |
|
Network Media |
1000BASE-TX: 5Cat and more UTP (≤100 meters) |
|
LED Display |
PoE working status |
|
Power output |
output voltage: DC48V2A |
|
PoE Ports |
Single port support PoE |
|
PoE Port Power |
30W per PoE port |
|
PoE Standard |
IEEE 802.3af/at |
|
Working Environment |
Operating Temperature: 0°～ 55°C , Storage Temperature: -20°～ 75°C;Working Humidity: 10%～90%, non-condensing; Storage Humidity: 10%～95%, non-condensing |
|
Certification |
CE mark,commercial,FCC Part 15 Class B，RoHS |
|
Transmission Distance |
≤100 meters |
|
Power Supply Type |
mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized) |
|
Product Size |
118x60x38(mm) |
- Sản xuất tại Taiwan.
- Bảo hành: 12 tháng.
