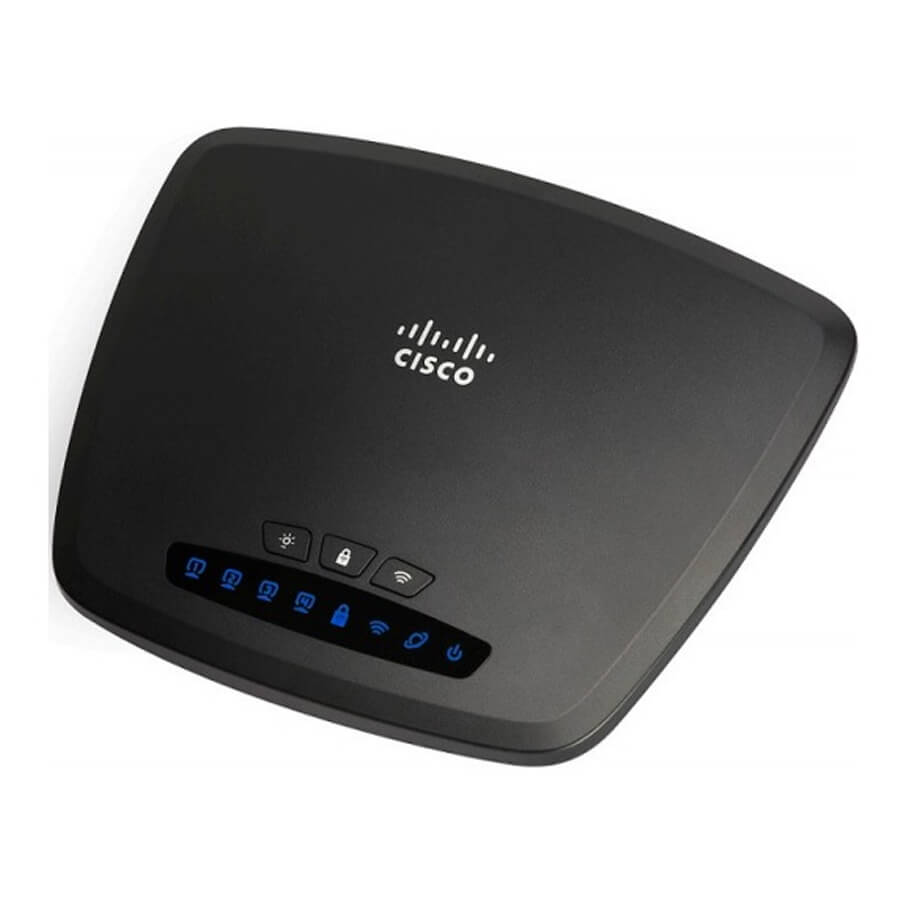

Wireless-N VPN Router Cisco CVR100W-E-K9-EU
- Wireless N SMB VPN Router for EU Standard.
- High-speed networking: Four integrated 10/100 Fast Ethernet LAN interfaces provide high-speed access for network devices such as computers, network-attached storage (NAS), IP phones, and cameras. High speed, standard-based 802.11n wireless connectivity with two built-in omnidirectional antennas helps employees stay productive while away from their desks.
- Ease of use: Cisco Simple Connect technology allows Android and iOS smart devices to access the Internet without the need to manually type a password. The Wi-Fi control button allows you to enable or disable the wireless function with just one click. The Do Not Disturb button turns the LEDs on the front panel on and off to avoid light pollution and be more energy efficient.
- Secured connection: VPN remote access allows remote workers to securely access corporate resources over IP Security (IPsec) VPN tunnels with Cisco QuickVPN software. IPsec site-to-site VPN provides highly secure connectivity between remote offices and headquarters.
- Business-grade features: Support for multiple VLANs enables you to segregate the network into LANs that are isolated from one another, using service set identifiers (SSIDs). This feature enables you to control access to sensitive information and to set up highly secure wireless guest access. A proven SPI firewall and advanced wireless security, plus strong URL filtering and access control by schedule, help keep business assets safe.
- Future network readiness: Support for IPv6 addressing helps small businesses comply with upcoming network standards and prepare for building a next-generation network.
Specifications
| System Specifications | |
| WAN | One 10/100 Mbps RJ-45 connector for WAN port |
| LAN | Four 10/100 Mbps RJ-45 connectors for LAN ports |
| Wireless | Built-in 802.11n wireless access point (two antennas) |
| LED | LAN1-4, WPS, Wireless, WAN, Power, and Do-Not-Disturb indication |
| Buttons/switches | Power, RESET, WPS, Wireless, and Do-Not-Disturb mode control |
| Product dimensions (W x H x D) | 8.02 in. x 6.67 in. x 1.39 in. (203.7 mm x 169.3 mm x 35.4 mm) |
| Weight | 0.84 lb (0.38 kg) |
| Power supply | 12V/0.5A |
| Cabling type | Category 5e or better |
| Operating environments | Operating temperature: 0° to 40°C (32° to 104°F) Storage temperature: –30° to 60°C (–22° to 140°F) Operating humidity: 10% to 85% noncondensing Storage humidity: 5% to 95% noncondensing |
| Product Specifications | |
| Routing | Static routing Routing Information Protocol (RIP) versions 1 and 2 Inter-VLAN routing |
| Layer 2 | 802.1Q-based VLAN 6 active VLANs (VLAN ID Range: 4 to 4094) |
| Layer 3 | Dynamic Host Configuration Protocol (DHCP) Server Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) pass-through Layer 2 Tunneling Protocol (L2TP) pass-through DHCP relay agent IGMP proxy and snooping Dynamic Domain Name System (DynDNS): oray.com and 3322.org Network Access Translation (NAT) and Port Address Translation (PAT) Port management Port mirroring |
| IPv6 | IPv4/IPv6 dual stacks IPv6 to IPv4 tunneling Multicast Listener Discovery (MLD) for IPv6 (RFC2710) Stateless address auto-configuration (SLAAC) DHCPv6 Server for LAN IPv6 clients DHCPv6 Client WAN connection Internet Control Message Protocol (ICMP) version 6 IPv6 static routing RIP Next Generation (RIPng): IPv6 Dynamic Routing |
| Security | Stateful packet inspection (SPI) firewall Port forwarding and port triggering Access control lists (ACL) and content filtering DoS prevention Wireless MAC address filtering Static URL or keyword filtering Access control by schedule Web-based configuration utility (HTTP and HTTPS) Self-signed SSL certificate |
| VPN | Up to 3 IPsec VPN tunnels by using the Cisco QuickVPN software PPTP, L2TP, and IPsec VPN passthrough 1 IPsec site-to-site tunnel |
| Quality of service | 802.1p-based priority on LAN ports and application-based priority on WAN ports 4 queues Differentiated services code point (DSCP) Class of service (CoS) Bandwidth control |
| Management | Local logs, system logs, and remote logs Upgrade the firmware from the web-based device manager Import and export system configuration (.txt) Remote management using the HTTP or HTTPS protocol Bonjour and Universal Plug and Play (UPnP) Network diagnostics: Ping, traceroute, and DNS lookup |
| Performance | NAT throughput: 90 Mbps Maximum new connections: 750 Maximum concurrent connections: 15,000 VPN throughput: 5 Mbps |
| Wireless Specifications | |
| Wireless adjustment | Press the Wireless button to enable or disable the wireless module Adjustable Wi-Fi power: OFF, 50%, 100% |
| Wireless Distribution System (WDS) | Up to 3 wireless access points to repeat the wireless signals |
| Wi-Fi Multimedia (WMM) | WMM (802.11e) and WMM Power Save (U-APSD) |
| Maximum number of connected wireless client stations | 32 active wireless client stations simultaneously |
| Maximum number of active SSIDs | 4 active SSIDs simultaneously |
| Isolation | Station isolation |
| Security | Wi-Fi Protected Setup (WPS) 2.0 Wired Equivalent Privacy (WEP) Wi-Fi Protocted Access (WPA)-Personal/Enterprise WPA2-Personal/Enterprise |
- Bảo hành: 12 tháng.
