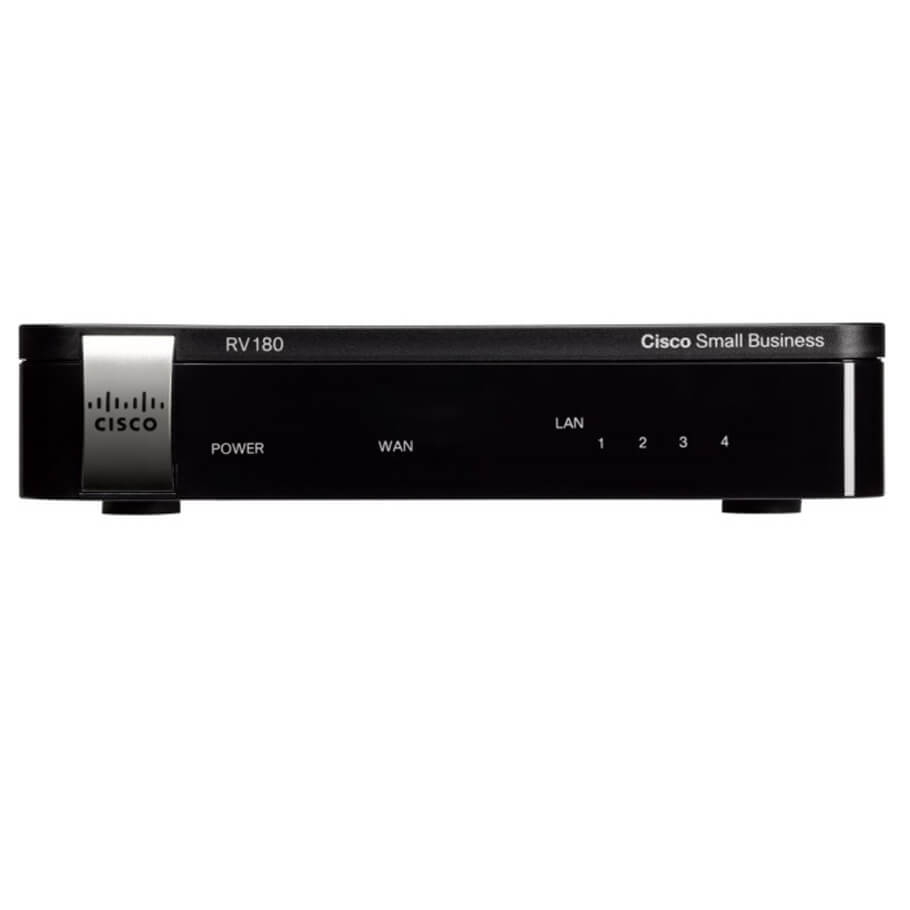

VNP Router Cisco RV180W-E-G5-K9
- Cisco RV180W Wireless-N Multifunction VPN Router. Hỗ trợ 10VPN Point to Point.
- Affordable, high-performance Gigabit Ethernet ports allow large file transfers and accommodates media rich applications.
- IP Security (IPsec) site-to-site VPN provides highly secure connectivity for remote employees and multiple offices.
- Integrated firewall, robust authentication, and access control safeguard sensitive business data.
- Easy to set up and use with wizard-based configuration.
- Built-in 4-port Gigabit managed switch delivers faster data transfer for bandwidth-intensive applications.
- Sophisticated QoS prioritizes network traffic for demanding voice, video, and data applications.
- IPSec VPN tunneling support lets you extend secure network connectivity to remote offices and users with advanced encryption and authentication.
- Separate virtual network support helps enable secure guest access and helps safeguard sensitive data.
- IPv6 support lets you employ future networking applications and operating systems without costly upgrades.
- Browser-based setup and configuration wizards help enable fast, simple deployment.
- Smooth, tested interoperability with other Cisco networking products makes it easy to add switches, phone and voice, and video surveillance.
Specifications
| Specifications | Description |
| Standards | IEEE, 802.3, 802.3u, 802.1D, 802.1p, 802.11e, 802.11w (Rapid Spanning Tree) 802.1X (security authentication), 802.1Q (VLAN),IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) |
| Ports | LAN, WAN |
| Switch | Power button (on/off) |
| Buttons | Reset |
| Cabling type | Category 5e or better |
| LEDs | Power, WAN, LAN (ports 1–4) |
| Operating system | Linux |
| Network | |
| Network Protocols | Dynamic Host Configuration Protocol (DHCP) server Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) Layer 2 Tunneling Protocol (L2TP) DNS proxy DHCP relay agent IGMP Proxy and multicast forwarding Dynamic Domain Name System (TZO, DynDNS, 3322.org) Network Address Translation (NAT), Port Address Translation (PAT) One-to-One NAT Port management Software configurable DMZ to any LAN IP address Session Initiation Protocol (SIP) Application Layer Gateways (ALG) |
| LAN | Four (4) 10/100/1000 Mbps Gigabit LAN ports with managed switch |
| WAN | One (1) 10/100/1000 Mbps Gigabit WAN port |
| Routing Protocols | Static routing Dynamic routing RIP v1 and v2 Inter-VLAN routing |
| Network Address Translation (NAT) Protocol |
Port Address Translation (PAT), Network Address Port Translation (NAPT) |
| VLAN Support | Port-based and 802.1Q tag-based VLANs |
| Number of VLANs | 4 active VLANs (3-4096 range) |
| IPv6 | Dual-stack IPv4 and IPv6 6 to 4 tunneling Multicast Listener Discovery (MLD) for IPv6 (RFC2710) Stateless address auto-configuration DHCPv6 Server for IPv6 Clients on LAN DHCP v6 client for WAN connectivity Internet Control Message Protocol (ICMP) v6 Static IPv6 Routing Dynamic IPv6 Routing with RIPng |
| Network Edge (DMZ) | Software configurable to any LAN IP address |
| Layer 2 | 802.1Q-based VLANS, 4 active VLANS |
| Security | |
| Firewall | Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ DoS attacks prevented: + SYN Flood Detect Rate (max/sec) + Echo Storm (ping pkts/sec) + ICMP Flood (ICMP pkts/sec) + Block UDP Flood + Block TCP Flood + Block Java, Cookies, Active-C, HTTP Proxy |
| Access Control | IP access control lists; MAC-based wireless access control |
| Content Filtering | Static URL blocking or keyword blocking |
| Secure Management | HTTPS, username/password complexity |
| Certificate Management | Self-signed SSL certificate, import/export certificate using Privacy-Enhanced Mail (PEM) format |
| User Privileges | 2 levels of access: admin and guest |
| VPN | |
| IPsec VPN | 10 gateway-to-gateway IPsec tunnels |
| QuickVPN | 10 Quick VPN tunnels using Cisco QuickVPN client |
| PPTP VPN | 10 PPTP tunnels for remote client access |
| Encryption | Triple Data Encryption Standard (3DES), Advanced Encryption Standard (AES) |
| Authentication | MD5/SHA1 |
| VPN Pass-through | IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through |
| Quality of Service | |
| QoS | 802.1p port-based priority on LAN port, application-based priority on WAN port 4 queues Differentiated Services Code Point support (DSCP) Class of Service (CoS) Bandwidth Management for service prioritization |
| Jumbo Frame Support | Supports Jumbo Frame on Gigabit ports–at least 1536B |
| Performance | |
| NAT Throughput | 800 Mbps |
| Concurrent Sessions | 12,000 |
| IPsec VPN Throughput (3DES/AES) | 50 Mbps |
| Environmental | |
| Power | 12V-1A |
| Certifications | FCC class B, CE, IC, Wi-Fi |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | –20° to 70°C (–4° to 158°F) |
| Operating Humidity | 10 to 85 percent noncondensing |
| Storage Humidity | 5 to 90 percent noncondensing |
- Bảo hành: 12 tháng.
