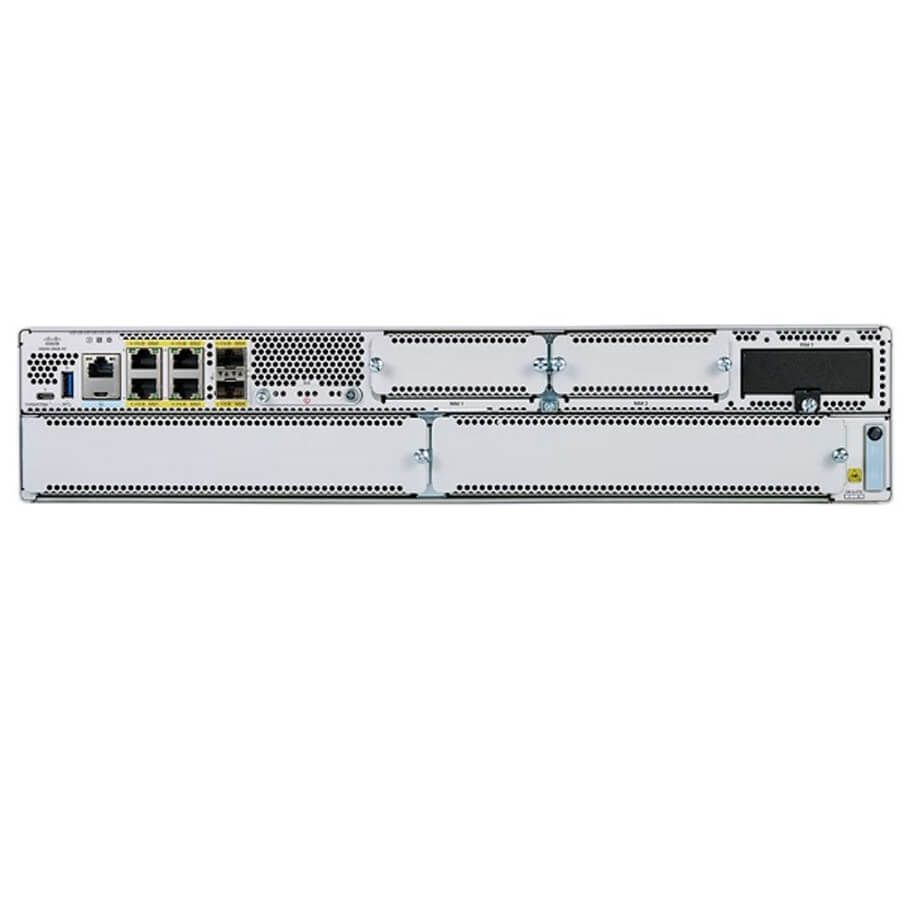

Catalyst 8300 Series Edge Platform Router CISCO C8300-2N2S-4T2X
- CISCO C8300-2N2S-4T2X là thiết bị định tuyến thuộc dòng 8300 Series Edge Platform của thương hiệu Ciso. Được trang bị 2 khe SM, 2 khe NIM, 2 cổng 10GE, 4 cổng 1GE và bộ xử lý đa lỗi Intel x86 CPU với bộ nhớ mặc định 8GB. Cung cấp tốc độ lên đến 5G.
- Bộ xử lý đa lỗi: Intel x86 CPU với bộ nhớ mặc định 8GB.
Thông số kỹ thuật
| Platform specifications | |
| C8300 2RU w/ 10G WAN (2 SM and 2 NIM slots, and 2 x 10-Gigabit Ethernet and 4 x 1-Gigabit Ethernet ports) |
10G port density: 2 |
| 1G port density: 4 | |
| Slots: 2 SM; 2 NIM; 1 PIM | |
| Memory (DRAM) default: 8 GB | |
| Storage (M.2 SSD) default: 16 GB | |
| General | |
| Typical power (watts) | 275W |
| Software requirements | Cisco IOS XE Software Release 17.3.2 |
| Dimensions (H x W x D) | 3.5 in. x 17.25 in. x 18.52 in. |
| Rack Units (RU) | 2RU |
| Chassis weight with 2X AC power supplies and fan tray | 40 lbs |
| Acoustics: Sound pressure (Typical/maximum) | 59 dBa/73 dBa (Non-NEBS) 63 dBa/75 dBa (NEBS) |
| Acoustics: Sound power (Typical/maximum) | 74 dBa/87 dBa (Non-NEBS) 77 dBa/89 dBa (NEBS) |
| Input voltage | AC: 85 to 264 VAC DC: -40 to 72V; 48V nominal |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | -40 to 150°F (-40 to 70°C) |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5 to 85% Ambient (noncondensing) nonoperating and storage: 5 to 95% |
| Altitude | 0 to 10,000 feet (0 to 3050 meters) |
| Mean Time Between Failures (MTBF) | 710,300 hours |
| Platform Performance | |
| SD-WAN performance | |
| SD-WAN IPsec Throughput (1400Bytes) | Up to 18.8Gbps |
| SD-WAN IPsec Throughput with IQDF** (1400Bytes) | Up to 18.8Gbps |
| SD-WAN IPsec Throughput (IMIX*) | 7.6Gbps |
| SD-WAN IPsec Throughput with IQDF** (IMIX*) | 5.6Gbps |
| SD-WAN Overlay Tunnels scale | 6000 |
| Note | * IMIX is average packet size of 352 Bytes packet size ** IQDF traffic pattern: IPSec + Quality of Service (QoS) + Deep Packet Inspection (DPI) + Flexible Netflow (FNF) |
| SD-WAN, Multi-layer security performance use cases * | |
| 50% IQDF* + 50% (DIA w. NAT + NGFW + IPS + URLF + AMP) | 5.9Gbps |
| DIA w. NAT + NGFW + IPS + URLF + AMP | 4.9Gbps |
| Autonomous mode (non SD-WAN) performance specifications | |
| IPv4 Forwarding Throughput (1400Bytes) | Up to 19.7Gbps |
| IPsec Throughput (1400Bytes) | Up to 18.9Gbps |
| IPsec Throughput (IMIX*) | 9.3Gbps |
| Note | * IMIX is average packet size of 352 Bytes packet size |
| Autonomous mode (non SD-WAN) system scalability | |
| Number of IPsec SVTI Tunnels | 4000 |
| Number of ACLs per system | 4000 |
| Number of IPv4 ACEs per system | 72K |
| Number of IPv4 Routes | 1.6M w/ default 8GB, up to 4M w/ 32GB |
| Number of IPv6 Routes | 1.5M w/ default 8GB, up to 4M w/ 32GB |
| Number of Queues | 16K |
| Number of NAT Sessions | 1.2M w/ default 8GB, up to 2M w/ 32GB |
| Number of Firewall Sessions | 512K |
| Number of VRFs | 4000 |
- Bảo hành: 12 tháng.
