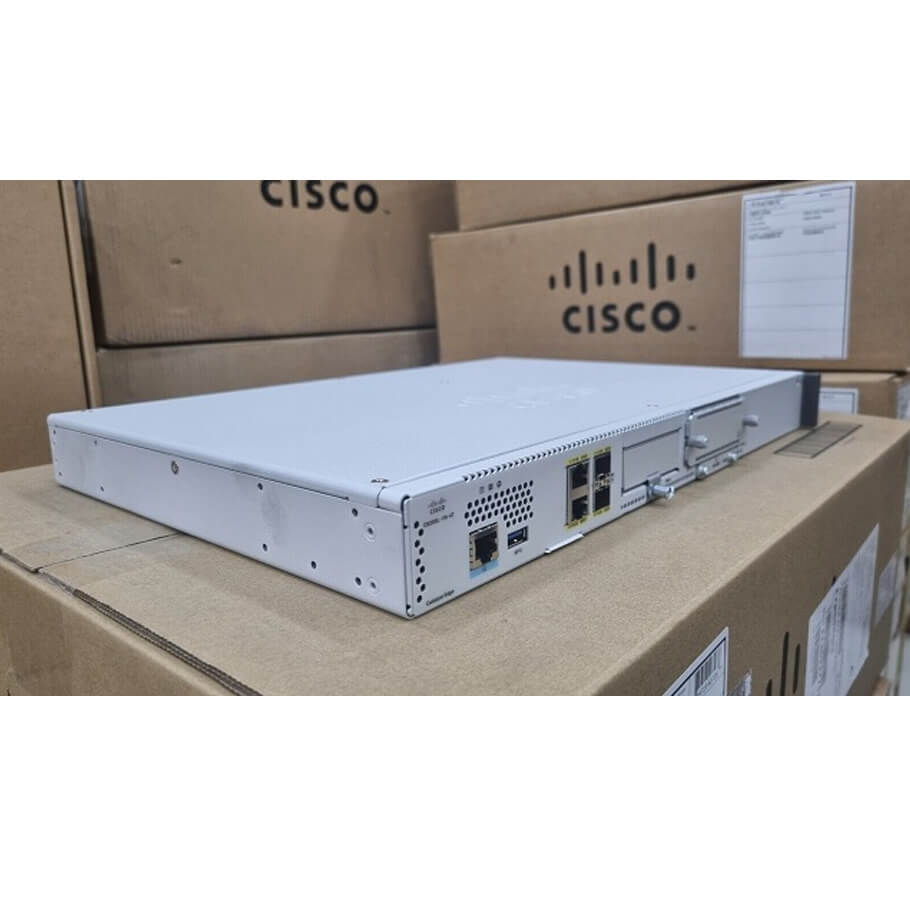

Catalyst 8200 Series Edge Platform Router CISCO C8200L-1N-4T
- Multicore processors: Intel x86 CPU with 4GB DRAM memory default.
- Embedded IPsec VPN hardware acceleration:
+ Enables up to 500 Mbps IPsec traffic;
+ Increases scalability for IPsec throughput requirements;
+ SSL and crypto hardware acceleration.
- Integrated Gigabit Ethernet ports:
+ Provides four built-in Ethernet WAN ports;
+ Two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports, enabling fiber as well as copper connectivity.
- Flash memory support: Both models have an integrated onboard 8-GB flash which is not upgradable. M.2 storage provides flash upgrade options.
- M.2 storage: The C8200L-1N-4T does not ship with a default M.2 storage but can be upgraded to 16G, 32G USB and 600G M.2 Non-Volatile Memory Express (NVMe) Storage.
- Power supply:
+ Both models use an internal, fixed AC power supply;
+ Power over Ethernet (PoE) is available as an option;
+ PoE ports added in the Network Interface Module (NIM) slot will require an additional external PoE power supply.
- Modularity and form factor:
+ 1-Rack Unit (1RU) form factor;
+ Supports NIM and Pluggable Interface Module (PIM) slots.
- Integrated security: Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug and Play to verify the identity of the hardware and software.
Thông số kỹ thuật
| Platform specifications | |
| C8200L 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports | 1G port density: 4 |
| Slots: 1 NIM, 1 PIM | |
| Memory (DRAM) default: 4 GB | |
| Storage (M.2 SSD) default: No | |
| Platform performance | |
| SD-WAN IPsec throughput (1400 bytes) (SD-WAN) | Up to 500 Mbps |
| SD-WAN IPsec throughput (IMIX) (SD-WAN) | 400 Mbps |
| SD-WAN overlay tunnels scale (SD-WAN) | 1500 |
| IPv4 forwarding throughput (1400 bytes) (non SD-WAN) | Up to 3.8 Gbps |
| IPsec throughput (1400 bytes) (non SD-WAN) | Up to 500 Mbps |
| Number of IPsec Static Virtual Tunnel Interface (SVTI) tunnels (non SD-WAN) | 1500 |
| Number of Access Control Lists (ACLs) per system (non SD-WAN) | 4000 |
| Number of IPv4 Access Control Entries (ACEs) per system (non SD-WAN) | 72,000 |
| Number of IPv4 routes (non SD-WAN) | 800,000 with default 4 GB, up to 4M with 32 GB |
| Number of IPv6 routes (non SD-WAN) | 800,000 with default 4 GB, up to 4M with 32 GB |
| Number of queues (non SD-WAN) | 16,000 |
| Number of Network Address Translation (NAT) sessions (non SD-WAN) | 600,000 with default 4 GB, up to 2M with 32 GB |
| Number of firewall sessions (non SD-WAN) | 512,000 |
| Number of Virtual Route Forwarding (VRF) instances (non SD-WAN) | 2000 |
| General | |
| Dimensions (H x W x D) | 4.39 x 43.81 x 29.97 cm |
| Rack Units (RU) | 1RU |
| Chassis weight | 4.54kg |
| Input voltage | AC: 90 to 264 VAC |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -40° to 150°F (-40° to 70°C) |
| Acoustics, both models: Sound pressure (Typical/maximum) | 54 dBA/69 dBA |
| Acoustics, both models: Sound power (Typical/maximum) | 68 dBA/80 dBA |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 85% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Altitude | 0 to 10,000 feet (0 to 3050 meters) |
| Mean Time Between Failures (MTBF) | 692,577 hours |
- Bảo hành: 12 tháng.
