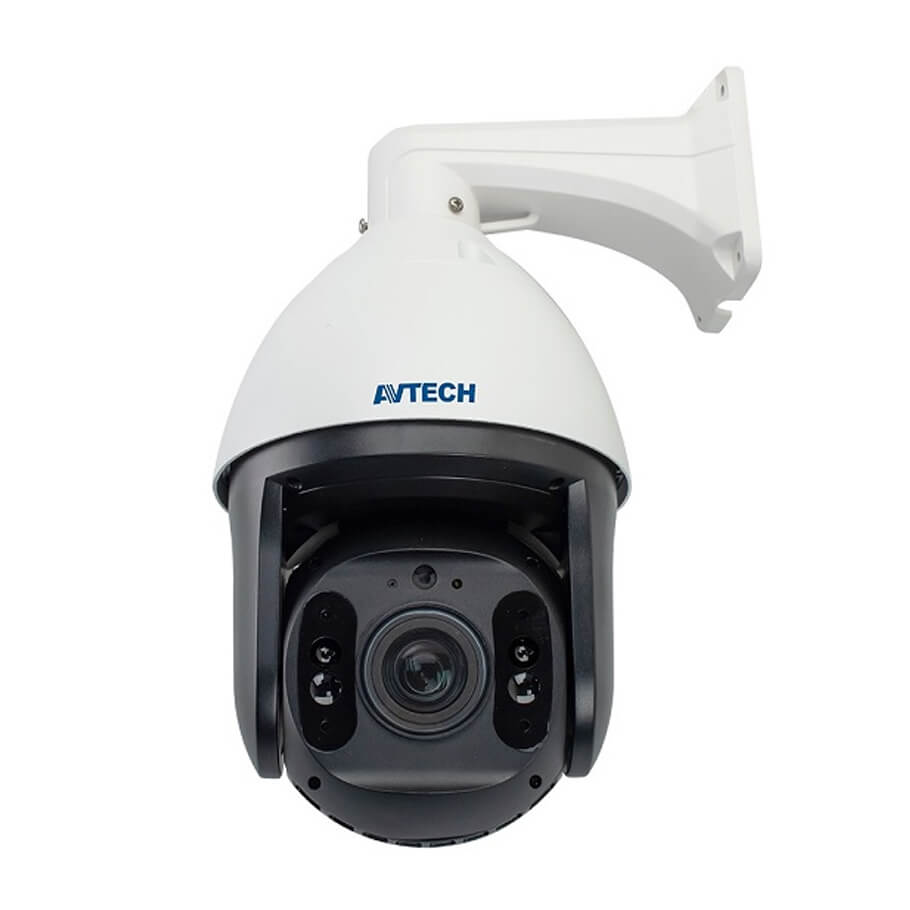

Camera IP Speed Dome hồng ngoại 2.0 Megapixel AVTECH DGM2937SVAT
- Cảm biến hình ảnh: 1/2.8” Sony CMOS.
- Độ phân giải: 2MP @30FPS (1920x1080).
- Hỗ trợ công nghệ Starlight cho hình ảnh vượt trội so với các camera quan sát khác cùng phân khúc.
- Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.
- Ống kính zoom quang: 20x (4.7 ~ 94 mm), lấy nét tự động AF và ống kính zoom động cơ.
- Độ nhạy sáng: 0.001 Lux / F1.5 (Wide) ~ F4.0 (Tele), 0 Lux (IR LED ON) khi bật hồng ngoại.
- Tầm quan sát hồng ngoại: 120m.
- Chế độ AI Human Detection phân biệt giữa người và động vật, vật thể.
- Tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng, chống gợn, chống ngược sáng 120WDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC.
- Tích hợp Micro thu âm.
- Chuẩn Onvif quốc tế.
- Hỗ trợ tên miền miễn phí trọn đời.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn cấp: DC12V và POE.
Đặc tính kỹ thuật
| Model | DGM2937SVAT |
| Device | |
| Image Sensor | 1/2.8” SONY CMOS |
| Max. Resolution | 1920 x 1080 |
| Lens | f4.7 ~ 94mm / F1.6 - F3.5 |
| Viewing Angle | Tele 2.9° ~ Wide 64° (Diagonal) |
| Min Illumination | 0.001 Lux (LED off), 0 Lux (LED on) |
| Shutter Speed | AUTO, 1/25s ~ 1/100000s |
| LED | 8 units |
| IR Effective Distance | Up to 120 meters |
| Day / Night | Yes |
| WDR Mode | YES (120dB) |
| RTC (real-time clock) | Yes |
| Video | |
| Compression | H265 / H.264 |
| Video Resolution | Main Stream: 2MP (1080P) / 720P / D1 Sub Stream: D1 / VGA / 640x360 / CIF |
| Frame Rate | 2MP @ 30FPS |
| Video Profile | High profile / Main profile / Base profile |
| Bitrate Control | 512Kbps - 12Mbps, VBR/CBR |
| Image Enhancement | WDR / BLC / HLC / 2D DNR / 3D DNR / AWB / MWB / AGC |
| Day / Night Switch | Auto / Color / (B/W) / Timing |
| Forced Anti-flicker | Yes |
| Defog | Yes |
| White Balance | Auto / Manual |
| Image Orientation | Rotate / Mirror |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| OSD Title | Location / font size / text configurable; text input (English & Chinese characters) and image upload (BMP) supported |
| Audio | |
| Microphone built-in | Yes |
| Line out | Yes |
| Encoding | G.711-u / G.711-a |
| Audio Adjustment | Yes |
| Alarm & Event | |
| Detection Mode | Motion / Human Detection |
| Detection Schedule | Yes |
| Motion Detection Area | 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18 |
| Detection Alert | Audio alert with customized mp3 audio file(s) |
| Network | |
| LAN Port | RJ45 connector x 1 / 4KV lightning-proof |
| LAN Speed | 100Mbps Based-T Ethernet |
| Supported Protocols | HTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP |
| ONVIF Compatible | Onvif 17.06 compatible |
| Number of Online Users | 6 |
| Remote Access | Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
| PTZ | |
| Pan Range | 360° continuous rotation |
| Pan Speed | 0.5° ~ 60° |
| Tilt Range | -15° ~ 90°/s |
| Zoom Ratio | 20X Optical Zoom |
| Proportional Zoom | Yes |
| Preset Points | Up to 255 preset points |
| General | |
| Web Interface Language | English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean |
| Operating Temperature | -30℃ ~ 60℃ |
| Operating Humidity | 10%-90%RH |
| POE | IEEE 802.3af |
| Power Source (±10%) | PoE / DC12V |
| Power Consumption (±10%) | < 20W |
| Weight | 2.5kg |
| Casing | IP66 |
- Bảo hành: 18 tháng.
