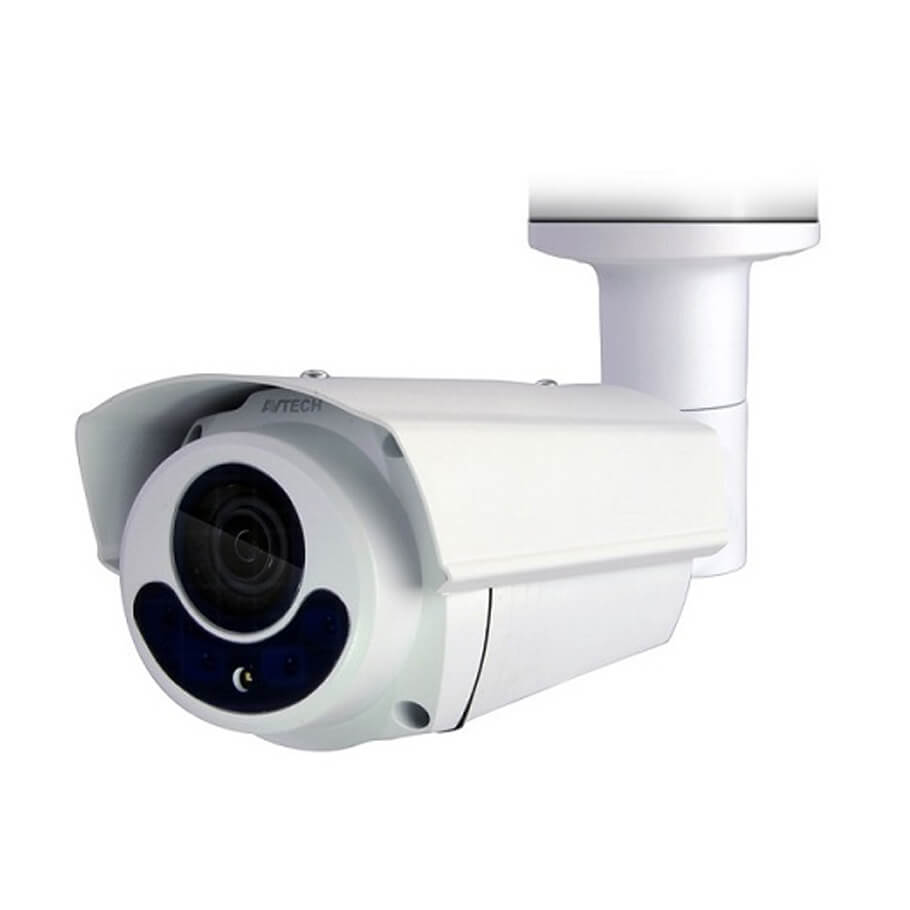

Camera IP hồng ngoại 2.0 Megapixel AVTECH DGM2643SV
- DGM2643SV là dòng camera IP hồng ngoại 2.0 Megapixel.
- Cảm biến hình: 1/2.8-inch CMOS image sensor.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng tối thiểu: 0.1Lux/F1.6(Wide)-F2.8(Tele), 0Lux (IR Led on).
- Ống kính: Motorized f2.8 ~ f12mm/ F1.6 ~ F2.8 (Auto Focus).
- Số đèn Led: 4 Led.
- Tầm quan sát hồng ngoại: Lên đến 50 mét.
- Chức năng chống ngược sáng DWDR.
- Starlight: Cung cấp hình ảnh màu sắc rỏ nét ban đêm.
- Hỗ trợ ONVIF.
- Số người online: 10.
- Hỗ trợ dùng trên iPad, iPhone và các thiết bị sử dụng hệ điều hành Android.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Hỗ trợ cung cấp nguồn qua Ethernet PoE (Power over Ethernet).
- Nguồn điện: 12V/1A(±10%).
Đặc tính kỹ thuật
| Model | DGM2643SV |
| General | |
| Image Sensor | 1/2.8-inch CMOS image sensor |
| Min Illumination | 0.001 Lux / F1.6 (Wide) ~ F2.8 (Tele), 0 Lux (IR LED ON) |
| Shutter Speed | 1/2 to 1/10,000 sec |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | motorized f2.8 ~ f12mm / F1.6 ~ F2.8 (Auto Focus) |
| Viewing Angle | Wide: 87° (Horizontal) / 50° (Vertical) / 93° (Diagonal) Tele: 33° (Horizontal) / 19° (Vertical) / 37° (Diagonal) |
| IR LED | 4 Units |
| IR Effective Distance | Up to 50 meters |
| IR Shift | Yes |
| Smart Light Control | Yes |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| Sharpness | Yes |
| DWDR | Yes |
| PoE | Yes (IEEE 802.3af) |
| Vertical View Mode | Yes |
| Weather-proof | IP66 |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | 12V/1A |
| Current Consumption (±10%) | 180mA (IR OFF) / 440mA (IR ON) |
| Power Consumption (±10%) | PoE & PoN: 7.2W; DC adapter: 5.8W |
| Net Weight (kg) | 94kg |
| Network | |
| LAN Port | Yes |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4/ Ipv6, Bonjour, UpnP, DNS, UDP, IGMP, QoS, SNMP |
| ONVIF Compatible | Yes (Profile S) |
| Number of Online Users | 10 |
| Security | (1) Multiple user access levels with password (2) IP address filtering (3) Digest authentication |
| Remote Access | (1) Internet Explorer on Windows operating system (2) CMS Lite, 32CH CMS software for Windows operating system (3) EagleEyes on iOS & Android mobile devices |
| Video | |
| Network Compression | H.265/ H.264/ MJPEG |
| Video Resolution | 1920 x 1080/ 1280 x 720/ 704 x 480/ 352 x 240 |
| Frame Rate | 30fps |
| Multiple Video Streaming | 4 (H.265/ H.264/ MJPEG) |
| Others | |
| EaZy Networking | Yes |
| Mobile Surveillance | iOS & Android mobile devices |
| Motion Detection | Yes |
| Event Notification | FTP/ Email/ SMS |
| RTC (real-time clock) | Yes |
| Digital Pan/ Tilt/ Zoom | Yes |
| Minimum Web Browsing Requirements | Intel core i3 or higher, or equivalent AMD 2GB RAM AGP graphics card, Direct Draw, 32MB RAM Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later Internet Explorer 7.x or later (Windows Edge not supported) |
| Certification | CE |
- Sản xuất tại Đài Loan.
- Bảo hành: 24 tháng.
