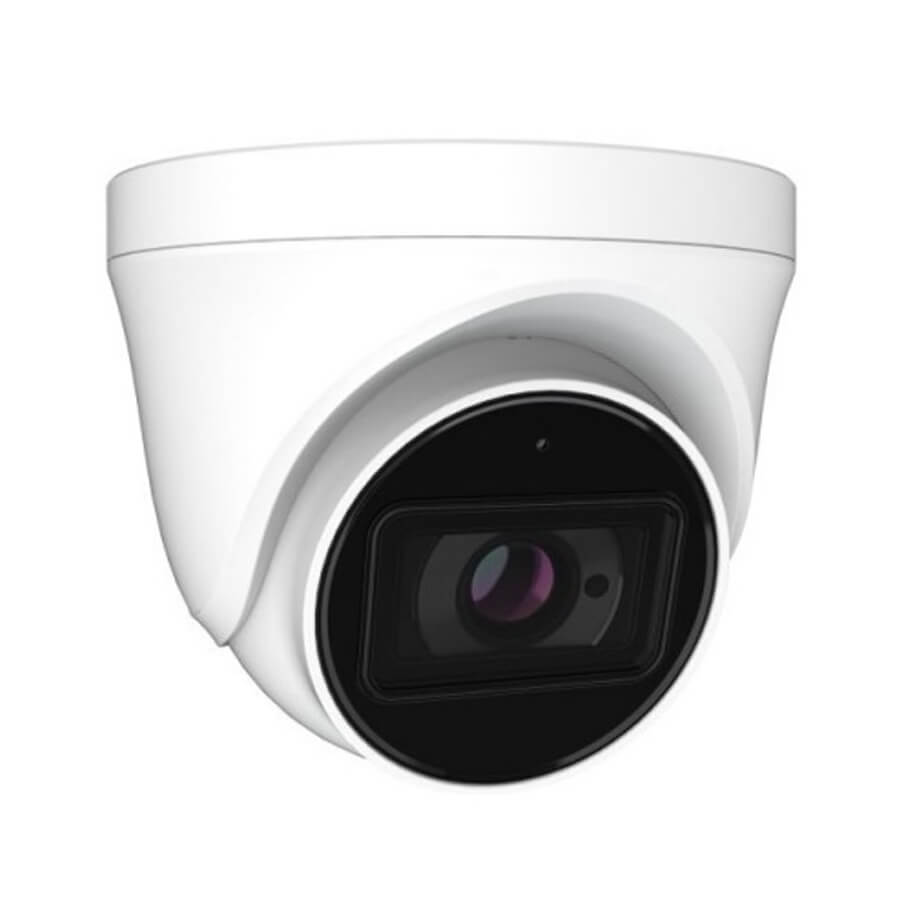

Camera IP Dome hồng ngoại 5.0 Megapixel AVTECH DGM5407TP/F28
- Cảm biến hình ảnh: 1/2.9 inch CMOS.
- Độ phân giải: 5MP (2592 x 1944)
- Chuẩn nén: H.265 / H.264 / MJPEG.
- Ống kính: f2.8mm/ F1.6.
- Độ nhạy sáng tối thiểu: 0.01 Lux/ F1.6, 0 Lux (IR LED ON).
- Tầm quan sát hồng ngoại: 30 mét.
- Hỗ trợ Audio Line in/out.
- Hỗ trợ khe cắm thẻ nhớ lên đến 128GB.
- Chức năng chống ngược sáng Digital WDR.
- Tiêu chuẩn chống bụi nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 12VDC/ PoE.
Đặc tính kỹ thuật
| Device | |
| Image Sensor | 1/2.9 inch CMOS |
| Max. Resolution | 2592 x 1944 (5MP) |
| Min Illumination | 0.01 Lux / F1.6, 0 Lux (IR LED ON) |
| Shutter Speed | AES |
| Lens | f2.8mm/ F1.6 |
| Viewing Angle | 106.8° (Horizontal) / 68.8° (Vertical) / 134.2° (Diagonal) |
| IR LEDs | 3 units |
| IR Effective Distance | 30m |
| Day / Night | Yes |
| WDR Mode | DWDR |
| RTC (real-time clock) | NTP / Manual |
| Micro SD Card Slot | Yes (up to 128GB) |
| Video | |
| Compression | H.265 / H.264 / MJPEG |
| Video Resolution | 2592 x 1944 / 2560 x 1440 / 2048 x 1536 / 1080P / 720P / D1 / VGA / 640 x 360 / CIF |
| Frame Rate | 25 IPS @ 2592 x 1922, 2560 x 1440 & 2048 x 1536 30 IPS @ 1920 x 1080, 1280 x 720, 640 x 480 & 320 x 240 |
| Video Profile | High profile / Main profile / Baseline |
| Multiple Video Streaming | 2 streams |
| S/N Ratio | More than 52dB (AGC off) |
| Bitrate Control | CBR / VBR |
| Image Mode | Normal / Super Starlight / Forced Frame Rate |
| Image Enhancement | DWDR / BLC / HLC / 2D DNR / 3D DNR |
| Day / Night Switch | Auto / Schedule / Manual |
| Forced Anti-flicker | Yes |
| Defog | Yes |
| White Balance | AWB |
| Image Orientation | Flip / Mirror |
| Privacy Mask | 4 customized areas |
| Text Overlay | Yes |
| OSD Title | Location / font size / text configurable; English & Chinese characters supported |
| Audio | |
| Line in | Yes |
| Line out | Yes |
| Encoding | G711 / G711A / AAC |
| Audio Adjustment | Input & Output |
| Event | |
| Detection Mode | Human (Day & Night) / Motion |
| Detection Schedule | Yes |
| Motion Detection Area | 1x1, 2x2, 3x3, 3x4, 4x4, 8x8, 16x16, 22x18 |
| Human Detection Alert | Audio alert with customized mp3 audio file(s) |
| Storage | |
| On-Board Storage | Built-in memory card slot, supports microSD / SDHC / SDXC card up to 128GB |
| Overwrite | Yes |
| Maximum Recoding Time / per File | 2, 5, 10, 20 & 30 minutes configurable |
| Recording Schedule | Yes |
| Network | |
| LAN Port | RJ45 connector x 1 |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, NTP, IPv4, IPv6, HTML5, ONVIF |
| ONVIF Compatible | YES (Profile S) |
| Number of Online Users | 6 |
| General | |
| Operating Temperature | -30℃ ~ 85℃ |
| Operating Humidity | 30% ~ 90% |
| POE | YES (IEEE 802.3af) |
| Power Source (±10%) | PoE (IEEE 802.3af) / DC12V |
| Power Consumption (±10%) | 1.4W Max. |
| Casing | IP67 |
- Bảo hành: 18 tháng.
