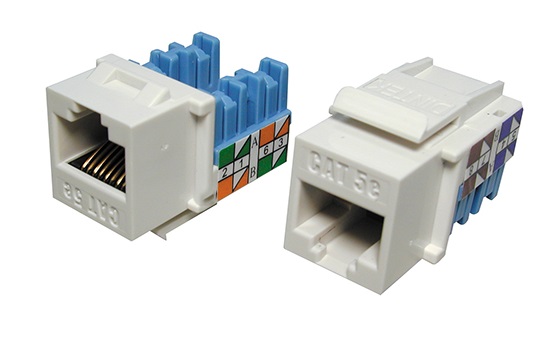

Modular Jack-Ổ cắm Dintek CAT.5E Keystone Jack (1305-03030)

Modular Jack-Ổ cắm Dintek CAT.5E Keystone Jack (1305-03030)

- Product code: 1305-03030

- Modular Jack - ổ cắm CAT.5e Keystone Jack, Krone type

- Cat.5e horizontal type Keystone E-Jack, T568A/ B, white

Industry Standard

- UL, listed

- Meets FCC parts 68

- EN50173

- ISO/IEC 11801

- Meets EIA/TIA T568B: Cat.5e Hardware transmission performance

Physicals

- IDC connector accept 22-26 AWG solid wire

- Jack wiring:50 u” gold plated over 100 u” nickel

- Housing: High impact flame retardant plastic UL 94V-0 rated

- IDC connector suitable for 110 punch down and Krone tool

Mechanical

- Plug insertion life:750 cycle min.

- Plug retention force:30 lbs min.

Electrical

- Current rating: 1.5 Amps

- Insulation resistance: 500Mega-ohms min.

- Contact resistance: 20 milli-ohms max.

- DC resistance: 0.1 ohms max.

- Data transmission rates up to 100Mbps
