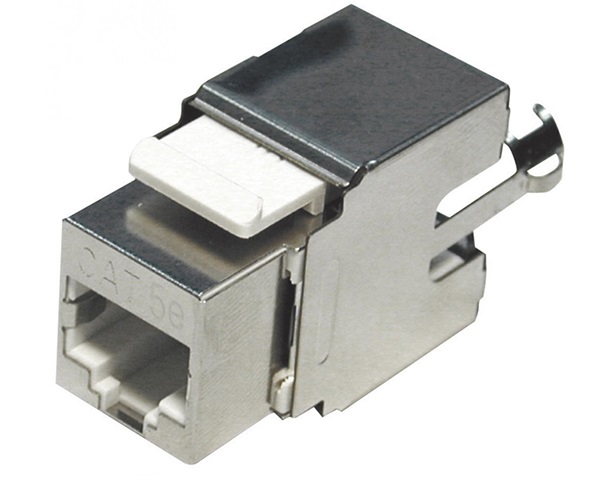

Modular Jack-Ổ cắm chống nhiễu Dintek CAT.5E Fully shielded Keystone Jack (1305-03024)

Modular Jack-Ổ cắm chống nhiễu Dintek CAT.5E Fully shielded Keystone Jack (1305-03024)

- Product code: 1305-03024

- Modular Jack - ổ cắm CAT.5e chống nhiễu Fully shielded Keystone Jack, Krone type

- Cat.5e 110/ Krone horizontal type fully shielded keystone Jack, T568A/B Component level.

Electrical

- Electrical insulation resistance: 10 mega ohms min.

- Dielectric with standing voltage: 1,000 V, RMS, 60Hz,1min.

- Contact resistance: 20 milli ohms max.

- Current rating: 1.5 AMPS at 20°C

Transmission performance

- Meets all cat.5e channel performance requirements specified in TIA/EIA-568B.2

Physical

- Housing: High-impact, flame-retardant plastic, UL94V-0 rated.

- Spring wire/contact blades:

- Material: Phosphor bronze alloy.

- Plating: 24 Carat hard gold (50u” plating thickness) over 100u” nickel.

- Shell: Brass alloy plated with 100u” nickel.
