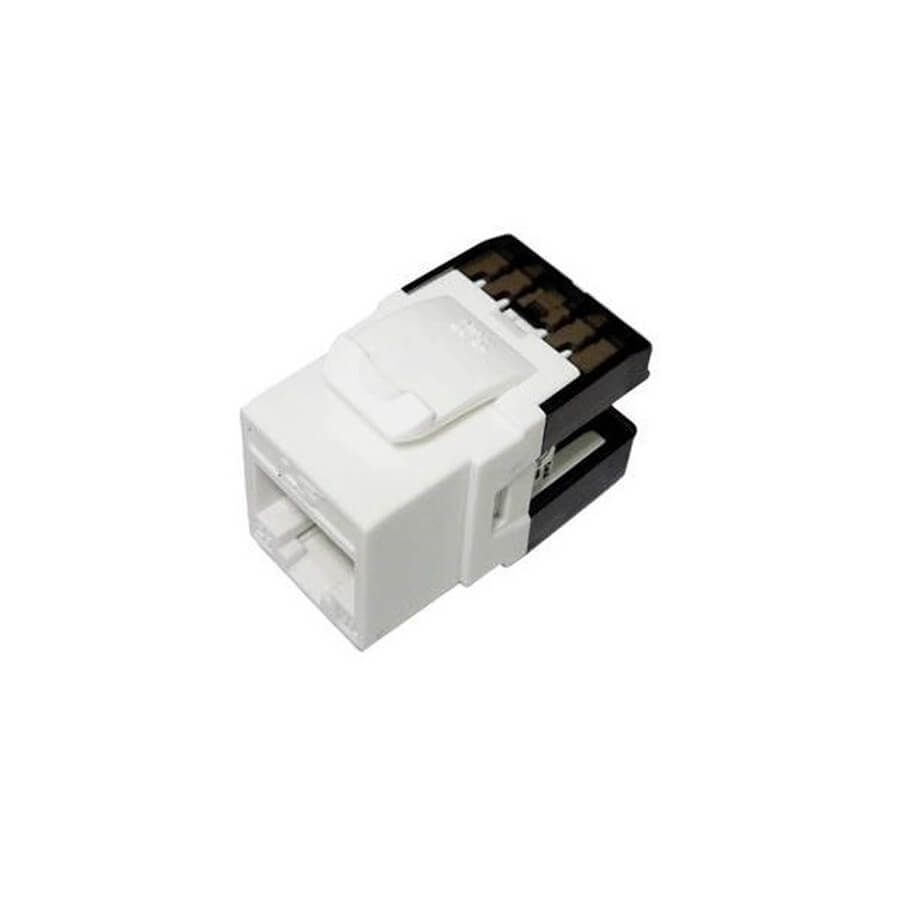

0916 287 068 Modular Jack LS Unshielded Cat6A UTP ERI
Modular Jack LS Unshielded Cat6A UTP ERI
- Part Number: LS-MJ-UC6A-xx-ERI.
- 180º Unshielded CAT6A Modular Jack, ERI type.
Description
- LS Simple™ Unshielded Modular Jack.
- User instructions and basic wiring layout for standard configuration are included.
- 180º slim Modular Jack.
- Designed and manufactured to meet demanding of international standards.
- Individually terminated using slim-IDC (Insulation Displacement Connectors).
- T568A or T568B configuration.
- 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2(Category 6A) and ISO/IEC 11801 compliant.
- High impact flame retardant plastic housing.
- Easy installation & smart cabling arrangement by dedicated termination tool.
- RoHS compliant.
Application
- Horizontal Distribution & Backbone Cabling.
- 4/16 Mbps Token Ring(IEEE 802.5).
- 10/100/1000/10G BASE-T(IEEE 802.3).
- 155 Mbps ATM.
- 100Mbps TP-PMD.
- ISDN, ADSL.
- ATM LAN 1.2G.
Specification
| Part Number | LS-MJ-UC6A-xx-ERI |
| Electrical / Mechanical Characteristics | |
| Current Rating | 1.5 A |
| Insulation Resistance | 500 MΩ |
| DC Resistance | 0.1 Ω Max |
| Voltage | 150 VAC Max |
| Insertion Life | 750 Mating Cycles |
| Plug Retention Force | 20 lbs (89N) |
| Temperature | -40ºC ~ 68ºC |
| Humidity | 10% ~ 90% RH |
| IDC Accept | 22 ~ 26 AWG Solid Wire |
| Dimension | 0.64 x 0.66 x 1.5 inch |
| Materials | |
| Housing | High Impact Flame Retardant Plastic, UL 94V-0 Rated |
| Spring Wire | Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 80 Micro-inch (2.54 microns), Thick Nickel Undercoat |
| IDC Plastic | Polycarbonate or ABS, UL 94V-0 Rated over |
| IDC Contact | Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Thick Tin |
| Approvals | |
| Category | ANSI/TIA-568-C.2 Category 6A, ISO/IEC 11801 Class EA |
| Wiring Scheme | T568A/T568B |
| Meet | FCC CFR 47 Parts 68 |
- Sản xuất tại Đài Loan.
