0916 287 068 Máy dò hồng ngoại PIR HONEYWELL ADPRO PRO E-400H (CH10100001)
Trang Chủ >>
Báo cháy-Báo trộm >> Báo động HONEYWELL >> Máy dò hồng ngoại PIR HONEYWELL ADPRO PRO E-400H (CH10100001)
Mã số:13681241

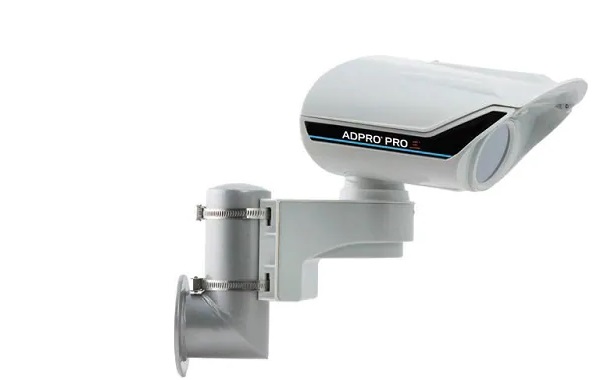

Máy dò hồng ngoại PIR HONEYWELL ADPRO PRO E-400H (CH10100001)
- Detection principle: Curtain, superior long-range/ precision glass mirror.
- Nominal range (L x W): 200 x 5.1 m.
- Angle of beam: 1.3°.
- Alarm indicator: Internal LED (during commissioning).
- Data-Interface: RS-485, 9600 baud/s // on-board.
- Supply voltage: 10.5 - 30 VDC, 24 VAC ±15% auto-sensing.
- IP-Rate: IP66.
- Dimensions (L x W x H): 358 x 188 x 290 mm.
- Weight: Approx. 1.65kg.
Thông số kỹ thuật
| Model | PRO E-400H |
| Detection principle | Curtain, superior long-range/ precision glass mirror |
| Nominal range (L x W), width at nominal range | 200 m x 5.1 m |
| Angle of beam (angle of aperture, AA) | 1.3° |
| 360PROtectTM - Near Surrounding Area Surveillance | -1 m up to +8 m (-3 ft up to +26 ft) |
| Spectral response | 8-14μ, double filtered |
| Filter (Front Window) | Silicon Wafer |
| Pyroelectric Sensor (differential) | triple-channel |
| Detection speed range | 1 - 3 m/s (3.3 - 9.8 ft/s) |
| Alarm outputs (free programmable) | 5 |
| Alarm settings (free programmable) | Alarm in Main Zone; Alarm Creep Zone (360PROtect); Pulse Count; Alarm Tamper Bracket Switch, Alarm Cover Switch, Alarm Detector Alignment, Alarm Antimasking, Alarm Fault (Power Supply, Temperature, Heating) |
| Output load (max.) | 5x Solid State Relais 75 mA max. @ 60 VDC |
| Alarm indicator | Internal LED (during commissioning) |
| Data-Interface | RS-485, 9600 baud/s // on-board |
| Cable feed (diameter) | Rubber seal for 4x 5-8mm cables and 4x 1-2mm wires |
| Cable termination (screw terminals) | Ø: 0.255 - 1.29 mm; A: 0.05 - 1.31 mm²; AWG: 30 - 16 |
| Supply voltage | 10.5 - 30 VDC, 24 VAC ±15% auto-sensing |
| Supply current | approx. 18 mA @ 12 VDC, 12 mA @ 24 VDC, 30mA @ 24 VAC (@ +25°C), excluding heater |
| Heater power | approx. 0.5 W / ~41 mA @ 12 VDC and -40°C |
| Operating temperature and temperature compensation | -40 °C to +60 °C (-40 ºF to +140 ºF) Full compensation over entire operating temperature range |
| Housing material | Luran® S (ASA) |
| IP-Rate | IP66 |
| Mounting | Wall and pole mounting - cable managed bracket (CMB) included |
| Weight (incl. cable managed bracket) | approx. 1.65 kg |
| Dimensions (L x W x H) | 358 mm x 188 mm x 290 mm |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
