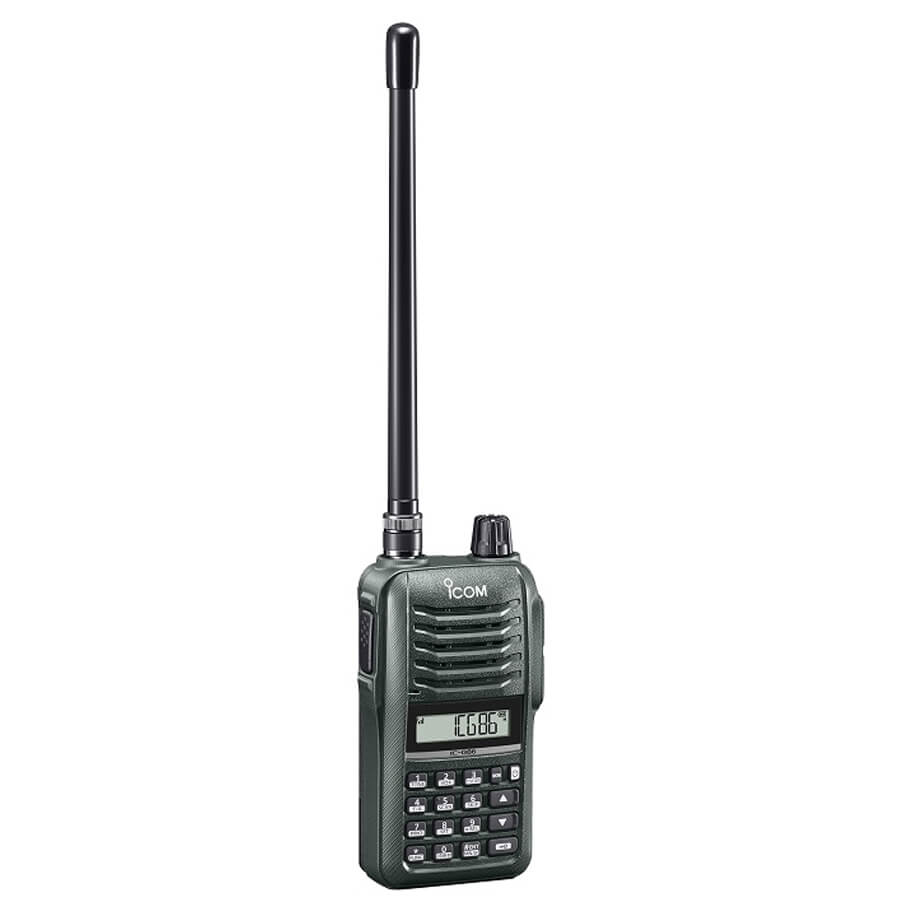

Máy bộ đàm ICOM IC-G86 VHF
- Dải tần hoạt động: VHF.
- Dung lượng kênh: 207 kênh.
- Công suất hoạt động: 5W.
- Công suất âm thanh: 1500mW.
- Tiêu chuẩn chống bụi và nước: IP54.
- Màn hình LCD 5 ký tự.
- Phụ kiện kèm theo: Pin BP-298 Li-ion 2250mAh, BC-240, BC-242, Anten FA-B57V, bát cài.
Thông số kỹ thuật
| General | |
| Frequency range (TX/RX guaranteed range) | 136–174 MHz |
| Type of emissions | F2D, F3E (FM, FM-N) |
| Number of channels | 200 channels |
| Antenna impedance | 50 Ω |
| Power supply requirement | 7.5 V DC |
| Operating temperature range | -20˚C to +60˚C, -4°F to +140°F |
| Frequency stability | ±2.5 ppm |
| Dimensions (W×H×D) | 58.6 × 112 × 30.5 mm (with BP-298) |
| Weight | 300g (with BP-298, FA-B57V) |
| Transmitter | |
| Output power | 7.0/5.5/2.5/0.5 W (EX Hi/Hi/Mid/Low) |
| Maximum frequency deviation | ±5.0 kHz/±2.5 kHz (Wide/Narrow) |
| Spurious emissions | -80 dB typical |
| External microphone connector | 3-conductor 2.5 (d) mm (1/10')/2.2 kΩ |
| Receiver | |
| Sensitivity | -124 dBm typical |
| Squelch sensitivity | -126 dBm typical |
| Selectivity (Wide/Narrow) | 75 dB typical/70 dB typical |
| Intermodulation | 65 dB typical |
| Audio output power | Internal speaker: 1500 mW typical External speaker: 450 mW typical (single end) |
| External speaker connector | 3-conductor 3.5 (d) mm (1/8ʺ)/ 8 Ω |
| Ingress Protection Standard | |
| Dust & Water | IP54 |
- Bảo hành: 12 tháng.
