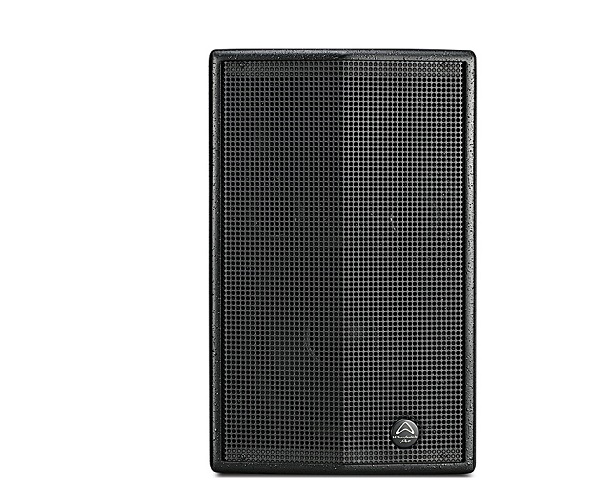

Loa 2 đường tiếng WHARFEDALE PRO SIGMA-X12
Loa 2 đường tiếng WHARFEDALE PRO SIGMA-X12
- With its discreet and unobtrusive design SIGMA-X12 features the latest proprietary Wharfedale Pro driver technology. In addition, SIGMA-X12 uses a newly developed angled corner port system so that the dimensions have been reduced without compromising the overall sound quality. Available in black or white and with comprehensive rigging options SIGMA-12 and the new SIGMA SERIES is already a versatile and favourite choice for installers.
Key Features
- 300W RMS/ 600W Program/ 1200W Peak.
- 129dB Max SPL.
- 60Hz – 20kHz frequency response.
- Discreet and unobtrusive design.
- Newly developed angled corner port system to reduce dimensions.
- Multiple M8 rigging points and a 35mm speaker pole mount for easy installation.
- Crossovers tailored for vocal intelligibility.
- Chip resistant Rhino Rock paint.
- High performance HF driver with aluminium rear cover for maximum heat dissipation.
- Double roll surround LF driver for stability and power.
- 2.5-inch voice coil.
- 5 models available in black or white in the range for maximum flexibility.
- Color: Black.
- Unit: Pair.
Specifications
Model | SIGMA-X12 |
System Type | Passive |
Configuration | Two-way |
Frequency Response (+/-3dB) | 55Hz-18kHz |
Frequency Range (-10 dB) | 60Hz-20kHz |
Sensitivity (2.83v/1m) | 98dB |
Calculated Maximum SPL @1m | 129dB |
System Rated Impedance | 8Ω |
Low Frequency Transducer | |
Size | 305mm/ 12-inch |
Voice-Coil Size | 64mm/ 2.5-inch |
Rated Impedance | 8Ω |
LF Power (re:AES2-2012) | 300W |
High Frequency Transducer | |
HF Driver Type | Compression Driver |
Voice-Coil Size | 44mm/ 1.75-inch |
Exit Size | 1-inch |
Diaphragm Material | Titanium |
Rated Impedance | 8Ω |
HF Power (re:AES2-2012) | 40W |
Nominal Coverage (H x V) | 90° x 60° |
Power | |
System Continuous Power | 300W |
System Programme Power | 600W |
System Peak Power | 1200W |
Crossover frequency | 2.2kHz |
Input Connector | 2 x NL4 (speakON compatible) |
Hardware | Dual-angle (0° or 10°) 35mm pole socket M8 x 5 2 handles on sides |
Enclosure | |
Enclosure Material | 15mm MDF |
Finish | Black or white |
Grille Material & Finish | 1.2mm steel, painted |
Dimensions - Unpacked | |
Height | 537mm/ 21-inch |
Width Front | 354mm/ 14-inch |
Width Rear | 218mm/ 8-inch |
Depth | 359mm/ 14-inch |
Dimensions - Packed | |
Height | 625mm/ 24.6-inch |
Width Front | 468mm/ 18.4-inch |
Width Rear | 260mm/ 10.2-inch |
Depth | 404mm/ 15.9-inch |
Weight | |
Net Weight | 18.2kg/ 40lbs |
Gross Weight | 20.9kg / 45lbs |
- Bảo hành: 12 tháng.
