0916 287 068 Keystone Jack VIVANCO CAT.6 VCCJSNF6S (Shielded, Silver)

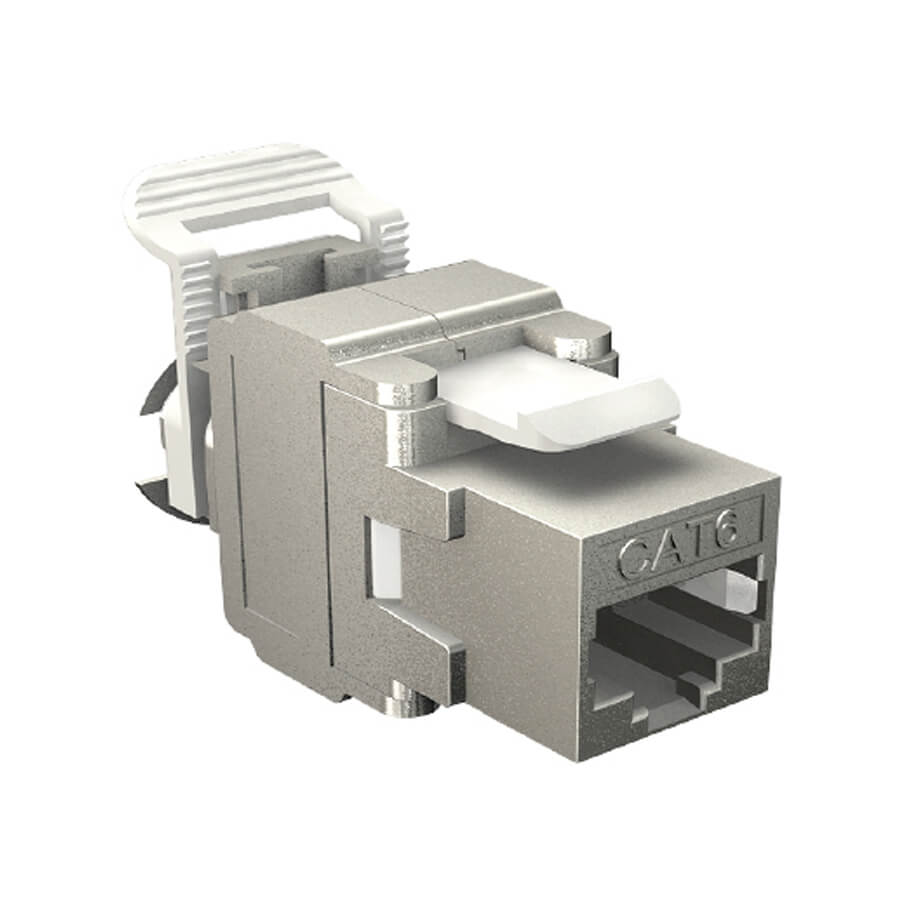

Keystone Jack VIVANCO CAT.6 (Shielded, Silver)
- Cat.6 shielded RJ45 keystone jack (Silver).
- Part number: VCCJSNF6S
Compliance
- ANSI/TIA 568-C.2 Category 6
- ISO/IEC 11801 Class E
Features and Benefits
- Adopt a 360-degree fully shielded design to optimize the shielding effect, and effectively prevent EMI
- Achieve the best impedance matching via PCB
- Gold plated, to prevent surface oxidation and improve the performance of the contact so as to ensure the performance and service life
|
Electrical Performance |
|
|
Compressive strength |
DC 1000V(AC750V) 1min, No breakdown and arcing phenomena |
|
DC Resistance（Ω） |
≤300 mΩ |
|
Connecting reactance（Ω） |
≤20mΩ |
|
Insulation Resistance （Ω） |
Under normal atmospheric pressure ≥500 mΩ |
|
Physical Performance |
|
|
IDC |
phosphor bronze |
|
Golden pin |
Phosphor bronze with gold plating 50U |
|
Method of shielding |
Zinc Alloy |
|
Plug insertion |
≥1000 |
|
IDC insertion life spam |
≥250 |
|
AWG |
22~26AWG |
|
Wiring |
T568A/ T568B |
- Hãng sản xuất VIVANCO của Germany.
- Sản xuất tại Trung Quốc.
