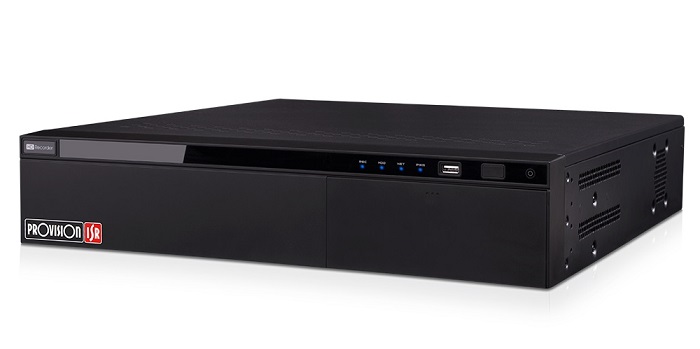

Đầu ghi hình camera IP 32 kênh Provision-ISR NVR8-32800RFA(2U)

Trang Chủ >> Camera quan sát >> Đầu ghi hình Provision-ISR >> Đầu ghi hình camera IP 32 kênh Provision-ISR NVR8-32800RFA(2U)
Mã số:02151396
Đầu ghi hình camera IP 32 kênh Provision-ISR NVR8-32800RFA(2U)

Đầu ghi hình camera IP 32 kênh Provision-ISR NVR8-32800RFA(2U)

- Video input: 32 Channel via Standard network connection (1 x RJ-45 Network Port)

- Video Output:

o VGA (HDMI Mirror): 1280x1024, 1920x1080 (1080P)

o HDMI1: 1280x1024, 1920x1080 (1080P)

o HDMI2: 1280x1024, 1920x1080 (1080P), 3840x2160 (4K)

- Bandwidth Incoming/Outgoing: 256Mbps

- Decoding Support: H.265 / H.265+ / H.265S / H.264

- DDA, Face recognition, LPR and FishEye support

- Playback:

o Local: 16 Channels Simultaneously

o Remote: 32 Channels Simultaneously

- Audio: 2-way audio

- Alarms: 8 in / 4 out + Depends on Camera

- Storage: 8 x SATA (Up to 8TB Each)

- USB Port: 2 x USB2.0, 1 x USB3.0

- Network: 2xRJ-45 (2x1000Mbps Each)

Thông số kỹ thuật

Model NVR8-32800RFA(2U)
Video
Input 32Ch Over Network
Output HDMI1 (4K 30/60Hz, 1080P1280x1024), HDMI2 + VGA (1280x1024, 1080P)
View Mode Independent, Up to 32ch Per Monitor
Decoding Format H.265 / H.265+ / H.265S / H.264
Decoding Capabilities 1Ch - 8MP; 4Ch - 2x8MP + 2x5MP; 9/16Ch - 1MP; 32Ch - D1
Audio
Input 1CH RCA (Linear, 1kΩ) + IPC Inputs
Output 1CH RCA (2.0 Vp-p, 1 kΩ) + IPC Inputs
Compression G.711A/G.711U
Two Way Audio Yes
Analytics
Analytics Channels 32Ch (Requires supporting IPC)
Supported Analytics Camera Tampering, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR
Face Recognition Rate 180 Faces per minute (All Channels) / 3 Faces per second (Single Channel)
Bandwidth
Incoming 256Mbps
Outgoing 256Mbps
Record/ Remote App (Main stream)
Real-Time Recording 32CH 8MP Real-Time
Record Type Video / Video + Audio
8MP 960FPS (NTSC)/800FPS (PAL)
5MP and lower 960FPS (NTSC)/800FPS (PAL)
Master stream over network Up to 32CH@Recording Resolution
Recording Modes Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations
User Access 20 Users Online with Professional Autorithy Management
Mobile App Provision Cam2 for iOS/Android
PC/Mac Software Ossia VMS Standard / Enterprise
Plug-in free Web-Browser Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View / Playback)
Plug-in based Web-Browser Internet Exporer
Playback
Local Playback 16Ch
Remote Playback (Web, App, VMS) 16Ch
Search Mode DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS
Backup
USB 2 USB 2.0 Port + 1 USB 3.0 Port
Backup Format AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)
Alarm
Input 8+IPC
Output 4+IPC
Storage
HDD 8
E-SATA None
Max Capacity 64TB (Up to 8TB Each)
RAID Yes (0/1/5/6/10)
PTZ
Connection Via Network
Supported Controls Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
RS-485  Yes (C06 Keyboard Connection)
Ethernet
Ethernet 2x1000/100/10Mbps self-adaptive Ethernet interface with Fault Tolerance / Dual Network Confguration
Protocols TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)
ONVIF Full Device Support (Profle T/G, ONVIF Version 20.12)
Others
Power Supply AC100-240V
Power consumption (No
HDD)		 15W
Dimension W430xD445xH97mm
Operation Temperature 0°~50°C

- Bảo hành: 24 tháng.

Giá: Vui lòng gọi
