Đầu dò báo khói địa chỉ Analog kèm đế NOHMI FDKU026-D-X

Trang Chủ >> Báo cháy-Báo trộm >> Báo cháy NOHMI >> Đầu dò báo khói địa chỉ Analog kèm đế NOHMI FDKU026-D-X
Mã số:13604116

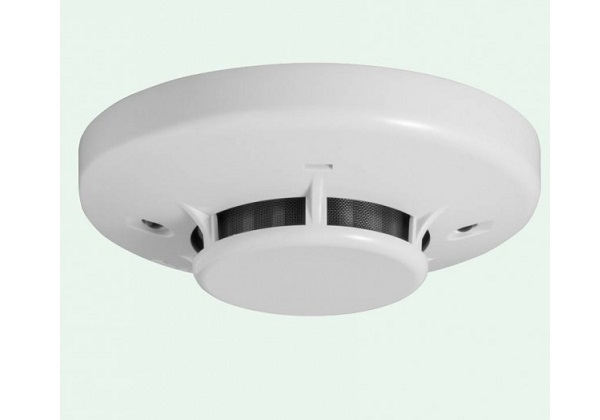

Đầu dò báo khói địa chỉ Analog kèm đế NOHMI FDKU026-D-X

Đầu dò báo khói địa chỉ Analog kèm đế NOHMI FDKU026-D-X

- The Photoelectric Smoke Detector (FDKU026-D-X) is an Analog/Addressable smoke detector compatible with any fire alarm control panel of Integlex Multicrest series. The detector and base (not included) are made of a durable plastic in an eggshell white (off white) to blend in with the ceiling.

- The new Nohmi circuit integration technology was introduced to the FDKU026-D-X. This state-of-the-art technology was able to simplify the product circuits and down-size the product structure significantly.

- The FDKU026-D-X has an alarm set-point range of 3.4 to 11.6%/m(1.05 to 3.69% per foot)and is UL listed. The FDKU026-D-X can be configured for drift compensation and has built in dirty detector warning as well as. The FDKU026-D-X and the control panel communicate over a proven and robust digital communication path and the system analyzes the level of alarm at the particular device. The total polling speed is less than five (5) seconds, well under the UL requirements.

- The FDKU026-D-X has two LEDs that allow for 360° viewing. The detector is compatible with any of the Nohmi bases indicated in this sheet and simply twists on. The FDKU026-D-X is addressed using the hand held programmer or the control panel addressing function.

Features

- Very Low Profile (28.7mm/1.13-inch only in height)

- Wide Alarm Set-point Range of 3.4 to 11.6%/m (1.05 to 3.69%/foot).

- True Analog Detector.

- UL listed Smoke Calibration and Sensitivity.

- Simple and Accurate Address Setting without Mechanical Switches.

- LEDs for 360° Viewing.

Đặc tính kỹ thuật

Model  FDKU026-D-X
Working voltage range 22.0 to 24.0 V
Standby current 250 μA
Alarm indicator 2 LEDs
Alarm indicator current 1.5 mA D.C
Alarm set-point range 3.4 to 11.6 %/m (1.05 to 3.69 %/foot)
Installation temperature range 0°C to 49°C (32°F to 120°F)
Operating relative humidity range 0% to 93% (Non-condensing)
Start-up time Max. 1 sec.
Color Eggshell White
Weight (without base) 75g (2.65 oz)
Dimensions (without base) Height: 28.7mm (1.13 inch) Diameter: 99mm (4.0 inches)

- Bảo hành: 12 tháng.

Giá: Vui lòng gọi
