Công tắc cảm ứng ánh sáng THEBEN LUNA 122 top3 RC EL

Trang Chủ >> Báo cháy-Báo trộm >> Công tắc cảm ứng THEBEN >> Công tắc cảm ứng ánh sáng THEBEN LUNA 122 top3 RC EL
Mã số:13134828

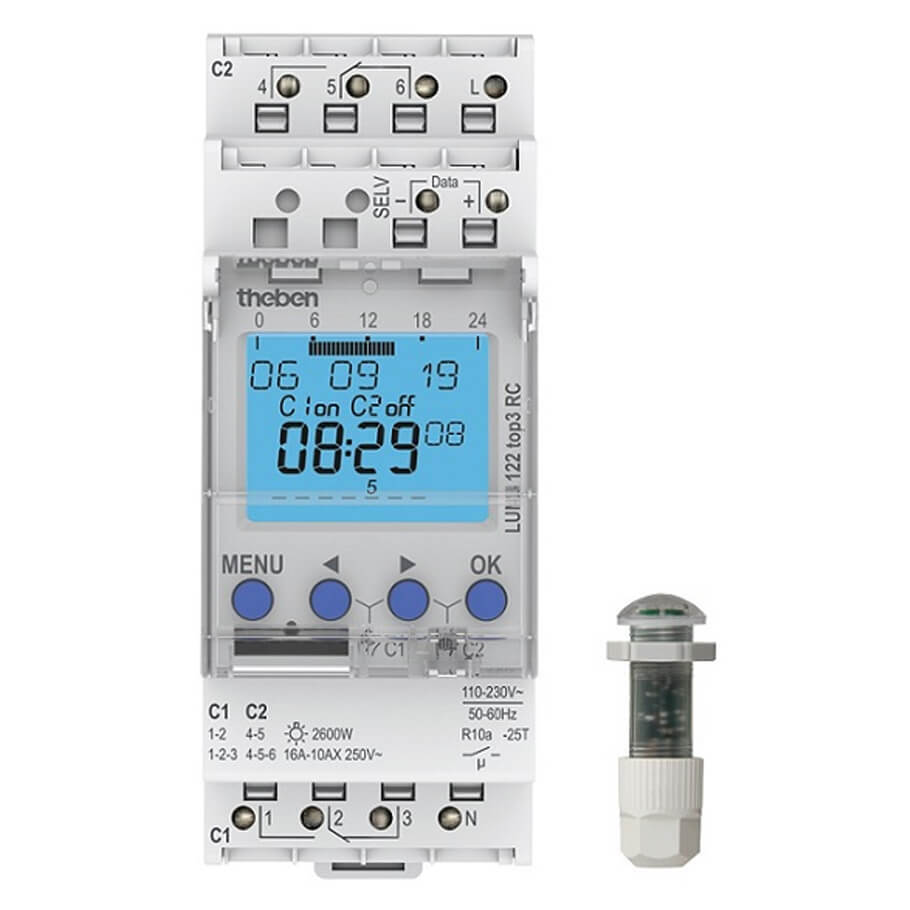

Công tắc cảm ứng ánh sáng THEBEN LUNA 122 top3 RC EL

Công tắc cảm ứng ánh sáng THEBEN LUNA 122 top3 RC EL

Part Number: 1220230

- Twilight switch with integrated weekly timer

- External light sensor included in delivery

- 2 channels

- Time synchronisation option via connection of an external DCF or GPS antenna

- 3 special programs (small annual program)

- 84 memory locations

- Programming by app possible

- Safe transfer via optional Bluetooth Low Energy OBELISK top3

- Maximum manipulation security, time switch programs can only be transferred from the app to the device when the Bluetooth OBELISK top3 is plugged into the device

- Switching brightness digitally adjustable

Thông số kỹ thuật

Operating voltage 110 – 230 VAC
Frequency 50 – 60 Hz
Number of channels 2
Number of memory locations 84
Stand-by consumption ~0.8 W
Program Weekly program
Additional program Extra/Holiday program
Time basis Quartz/DCF77
Setting range brightness 1 – 99000 lx
Preset brightness value 15 lx
Switch-on delay 0 – 59 min
Switch-off delay 0 – 59 min
Type of contact Two-way changeover contact
Width 2 modules
Installation type DIN rail
Type of connection DuoFix spring terminals
Display LCD-Display
Keyboards 4 touch buttons
Shortest switching times 1 min
Power reserve 10 years at 20 °C
Switching capacity 16 A at 250 V AC, cos φ = 1, 10 A at 250 V AC, cos φ = 0.6
Incandescent/halogen lamp load 2600 W
Halogen lamp load 2600 W
Fluorescent lamp load (conventional) not corrected 2600 VA
Fluorescent lamp load (conventional) parallel-corrected 130 µF
LED lamp < 2 W 50 W
LED lamp 2-8 W 600 W
LED lamp > 8 W 600 W
Lichtsensor Flush-mounted light sensor
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature -25°C ~ 55°C
Type of protection IP20
Protection class II, Sensor III
Max. cable length to sensor 100m

- Hãng sản xuất THEBEN của Đức.

- Bảo hành: 12 tháng.



Giá: Vui lòng gọi
