0916 287 068 Camera IP Speed Dome TandemVu hồng ngoại 4.0MP HIKVISION DS-2SE3C404MWG-E/14
Trang Chủ >>
Camera quan sát >> Camera IP HIKVISION >> Camera IP Speed Dome TandemVu hồng ngoại 4.0MP HIKVISION DS-2SE3C404MWG-E/14
Mã số:02590922

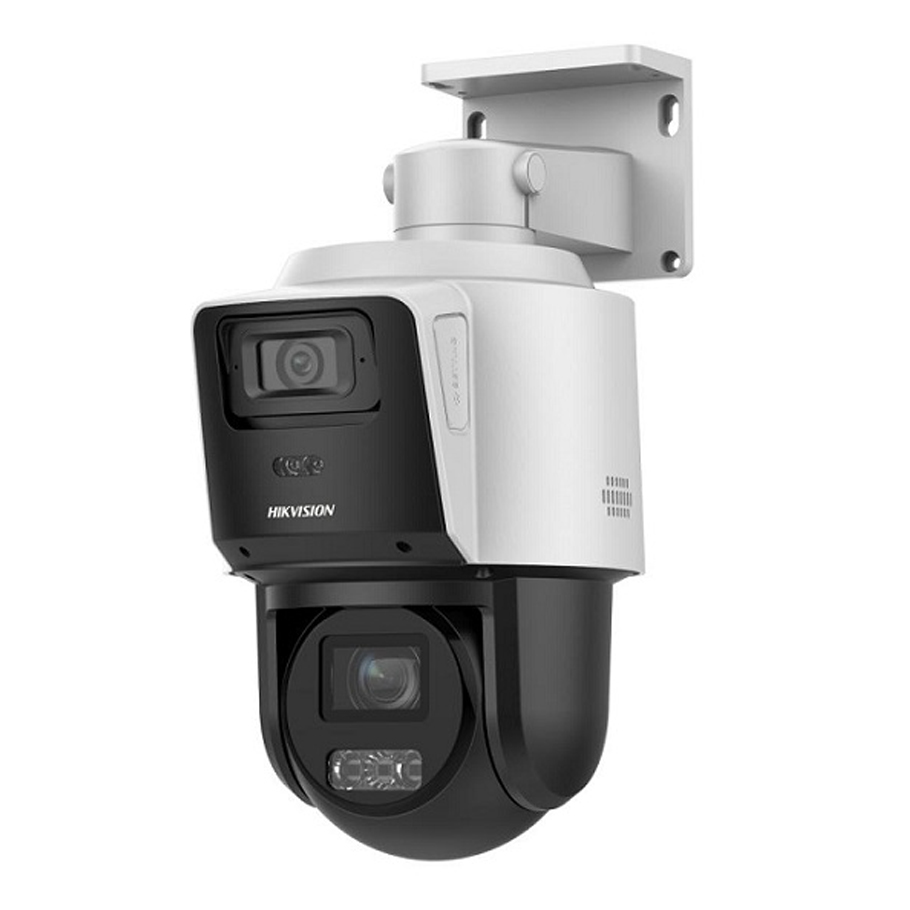

Camera IP Speed Dome TandemVu hồng ngoại 4.0 Megapixel HIKVISION DS-2SE3C404MWG-E/14
- Camera IP Speed Dome TandemVu 4× IR sử dụng cảm biến CMOS quét liên tục 1/2.8 inch. Với ống kính zoom quang học 4×, camera cung cấp hình ảnh chi tiết hơn trên các khu vực rộng lớn. Dòng camera này có thể được sử dụng rộng rãi cho các nhu cầu quan sát độ nét cao ở nhiều môi trường khác nhau như sông ngòi, đường phố, đường sắt, sân bay, quảng trường, công viên, điểm du lịch và các địa điểm khác.
- Bao quát một khu vực rộng lớn và thu được nhiều chi tiết cùng lúc.
- Hình ảnh chất lượng cao với độ phân giải 4 MP.
- Hiệu suất ánh sáng yếu tuyệt vời nhờ công nghệ DarkFighter.
- Bảo vệ một khu vực rộng lớn với zoom quang học 4× và zoom số 16×.
- Hỗ trợ WDR, HLC, BLC, 3D DNR, khử sương mù, phơi sáng theo khu vực, lấy nét theo khu vực.
- Hỗ trợ nguồn 12V DC & PoE+.
- Hỗ trợ phát hiện con người và phương tiện.
Thông số kỹ thuật
| Camera | |
| Image Sensor | [Bullet channel]: 1/2.8 inch Progressive Scan CMOS; [PTZ channel]: 1/2.8 inch progressive scan CMOS |
| Min. Illumination | [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Slow Shutter | yes |
| Zoom | [PTZ channel] 4 × optical, 16 × digital |
| Day & Night | ICR |
| Max. Resolution | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
| Lens | |
| Focus | auto, manual, semi-auto |
| Focal Length | [Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical |
| Zoom Speed | [PTZ channel]: approx. 3.3 s |
| FOV | [Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 130.7°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39° |
| Aperture | [Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9 |
| Illuminator | |
| Supplement Light Type | [Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR |
| Smart Supplement Light | Yes |
| Supplement Light Range | [PTZ channel]: IR Distance: up to 40 m; [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m |
| PTZ | |
| Movement Range (Pan) | 0° to 350° |
| Movement Range (Tilt) | [Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90° |
| Pan Speed | pan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s |
| Proportional Pan | yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Power-off Memory | yes |
| Park Action | preset,patrol scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Preset Freezing | yes |
| Scheduled Task | dome reboot,preset,patrol scan,dome adjust,aux output |
| Video | |
| Region of Interest (ROI) | 1 fixed regions for main stream |
| Main Stream | [Bullet channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) [PTZ channel]: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | [Bullet channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) [PTZ channel]: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | [Bullet channel]: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) [PTZ channel]: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | H.265,H.264,MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | main profile,baseline profile,high profile |
| H.265 Type | main profile |
| Scalable Video Coding (SVC) | yes |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC |
| Audio Bit Rate | MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps |
| Audio Sampling Rate | MP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz |
| Environment Noise Filtering | yes |
| Network | |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Network Storage | NAS (NFS, SMB/ CIFS),ANR, ANR |
| Protocols | TCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,N TP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP |
| Simultaneous Live View | 20 |
| User/Host | 32 |
| Security | 802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | IE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+ |
| Image | |
| Image Settings | sharpness, saturation, brightness, contrast |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | [Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks |
| Regional Focus | [Bullet channel] No, [PTZ channel] Yes |
| Regional Exposure | [Bullet channel] No, [PTZ channel] Yes |
| Image Parameters Switch | Yes |
| Interface | |
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB |
| Reset | yes |
| Event | |
| Basic Event | Motion detection,video tampering alarm,exception,alarm input and output |
| Smart Event | Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection |
| Linkage | [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
| General | |
| General Function | mirror,watermark,IP address filter,password protection |
| Power | 12 VDC, PoE+ |
| Operating Condition | -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing) |
| Demist | Demist by heating the glass |
| Material | PC |
| Dimension | 311.5 mm × 223.5 mm × 156 mm |
| Weight | Approx. 1.37 kg |
| Protection | IP66 Standard, Surge Protection and Voltage Transient Protection |
- Bảo hành: 24 tháng.
Giá: 3.993.000 VND
(Đã bao gồm VAT)
