0916 287 068 Camera IP Speed Dome hồng ngoại 8.0 Megapixel Hanwha Vision XNP-C9253R
Trang Chủ >>
Camera quan sát >> Camera IP Hanwha Vision >> Camera IP Speed Dome hồng ngoại 8.0 Megapixel Hanwha Vision XNP-C9253R
Mã số:02063109

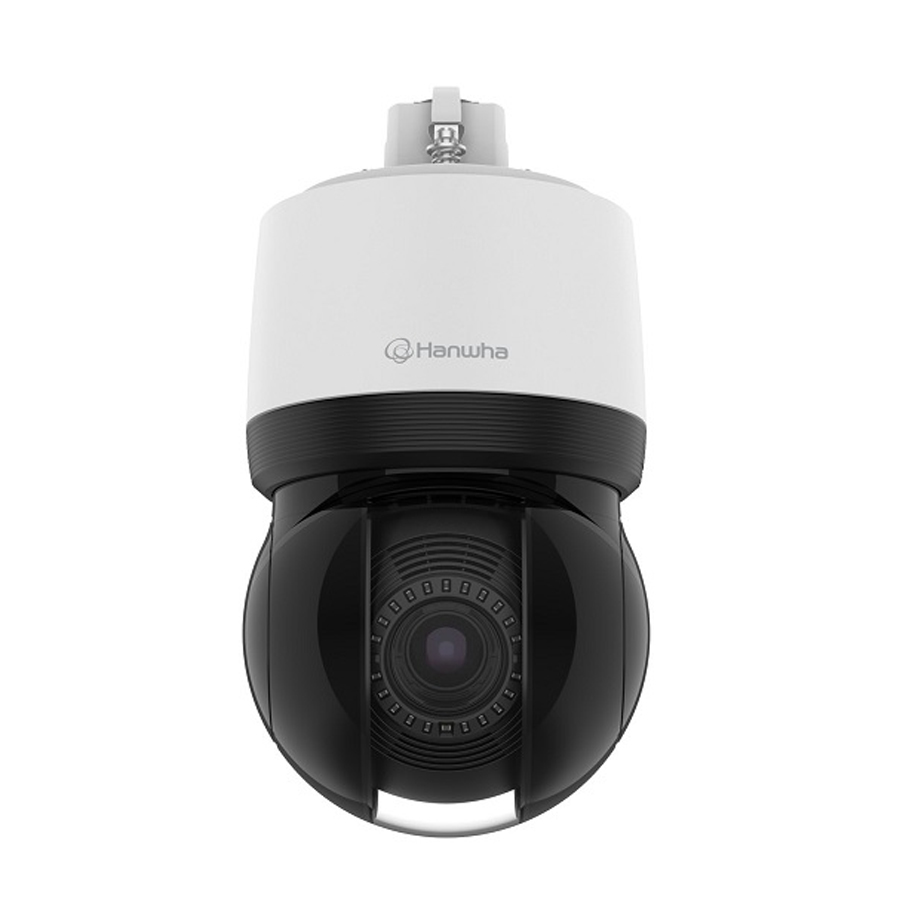

Camera IP Speed Dome hồng ngoại 8.0 Megapixel Hanwha Vision XNP-C9253R
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 8.0 Megapixel.
- Chuẩn nén hình ảnh: H.264, H.265, MJPEG.
- Ống kính: 5~125mm(25x) zoom (digital 32x, total 800x zoom).
- Tầm quan sát hồng ngoại: Wise IR 200m.
- Hỗ trợ các chức năng camera: Day & Night (ICR), Extreme WDR (120dB), Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking.
- Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch CMOS |
| Resolution | 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@8MP Max. 5fps) |
| Min. Illumination | Color: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 5~125mm(25x) zoom (digital 32x, total 800x zoom) |
| Max. Aperture Ratio | F1.6(Wide)~F3.73(Tele) |
| Angular Field of View | H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele) |
| Min. Object Distance | 5m(16.4ft) |
| Focus Control | Oneshot AF, Focus save |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Max. 700°/sec, Manual: 0.024°/sec~250°/sec |
| Tilt Range | 110°(90°~-20°) |
| Tilt Speed | Max. 500°/sec, Manual: 0.024°/sec~250°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | Up to ±0.1°, Pan/Tilt correction |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | Extreme WDR(120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, Quadrangle Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Off / Max gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine) |
| Video Rotation | Flip&Mirror |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Motion detection, Tampering, Fog detection, Shock detection, Virtual area(Appear/Disappear) * Audio detection, Sound classification(Via optional I/O box SPM-4210) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input((Via optional I/O box SPM-4210), Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - MQTT: publication * Alarm output / Audio clip playback(Via optional I/O box SPM-4210) |
| IR Viewable Length | Wise IR 200m |
| Water Removal | Support(Spin dry, Lens heater) |
| Auto Tracking | Support Object auto tracking(Person/Vehicle) Target lock tracking |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI Engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Web socket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | TPM(Trusted platform module), HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB (512GBx2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~100%RH(Condensing) Humidity control /w AIR sheet |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH |
| Certification | IP66, IK10, NEMA4X, NEMA-TS 2(2.2.7, 2.2.8, 2.2.9) |
| Input Voltage | PoE++(IEEE802.3bt, Class6, Type3, Injector included) |
| Power Consumption | Typical 24W, Max 40W |
| Mechanical | |
| Color / Material | Body: White / Aluminum Head: Black / Polycarbontate Hard-coated dome |
| RAL Code | White: RAL9003 / Black: RAL9005 |
| Product Dimensions / Weight | ø158x293.3mm/3200g |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471 |
| Environment | EN IEC 63000 IEC 60529 IP66, IEC 62262 IK10 NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9) NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 140.2m(460.0ft) / Tele: 3246.9m(10652.4ft) |
| Observe (63PPM/ 19PPF) | Wide: 56.1m(184.0ft) / Tele: 1298.7m(4261.0ft) |
| Recognize (125PPM/ 38PPF) | Wide: 28.0m(92.0ft) / Tele: 649.4m(2130.5ft) |
| Identify (250PPM/ 76PPF) | Wide: 14.0m(46.0ft) / Tele: 324.7m(1065.2ft) |
- Bảo hành: 24 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
