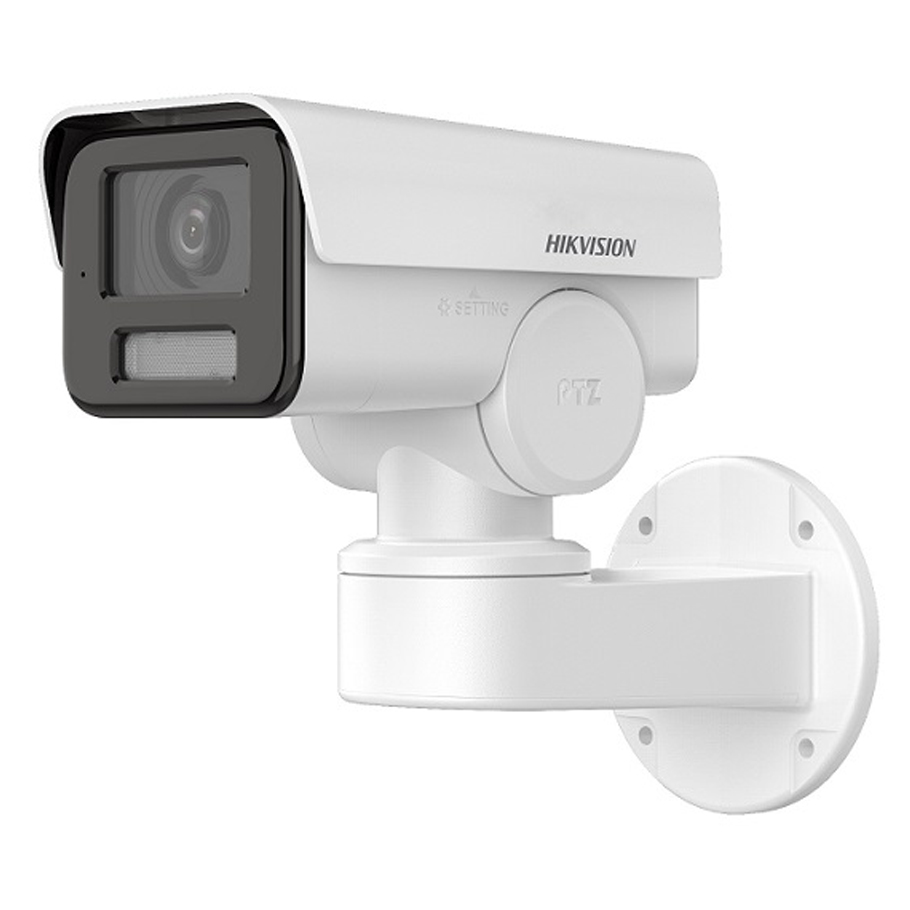

Camera IP PT 4.0 Megapixel HIKVISION DS-2CD1P47G2-L
- Cảm biến hình ảnh: 1/3 inch Progressive Scan CMOS.
- Độ phân giải: 4.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264
- Camera quan sát hình ảnh màu 24/7.
- Hỗ trợ đèn trợ sáng lên đến 30 mét.
- Hỗ trợ xoay ngang, dọc.
- Chức năng chống ngược sáng thực 120dB WDR.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Model | DS-2CD1P47G2-L |
| Camera | |
| Image Sensor | 1/3 inch Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Day &Night | 24/7 color imaging |
| Angle Adjustment | Pan: -100° to 100°, tilt: -20° to 45° |
| Lens | |
| Lens | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 113° 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 89° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | Max. F1.0 |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 20 fps (2560 × 1440); 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440); 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browse |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 regions of privacy mask |
| Network | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| API | Open Network Video Interface (Profile S, Profile T), ISAPI, SDK |
| Simultaneous Live View | Up to 6 channels |
| Client | iVMS-4200, Hik-Connect |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| Linkage | Send email, notify surveillance center, trigger capture |
| General | |
| General Function | Anti-banding, heartbeat, password protection, password reset via email |
| Power Supply | 12 VDC ± 25%, 0.91 A, max. 11 W, Ø 5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W |
| Material | Front cover: metal, body: plastic, bracket: plastic |
| Protection | IP66 |
| Startup and Operating Conditions | -30 °C to 60 °C. Humidity 95% or less (non-condensing) |
| Dimensions | 197.1 mm × 105 mm × 225.4 mm |
| Weight | 900 g |
- Bảo hành: 24 tháng.
Giá: 2.178.000 VND
(Đã bao gồm VAT)
