0916 287 068 Camera IP nhận diện biển số xe 5.0 Megapixel I-PRO WV-X5550LTPJ
Trang Chủ >>
Camera quan sát >> Camera IP I-PRO >> Camera IP nhận diện biển số xe 5.0 Megapixel I-PRO WV-X5550LTPJ
Mã số:02138616

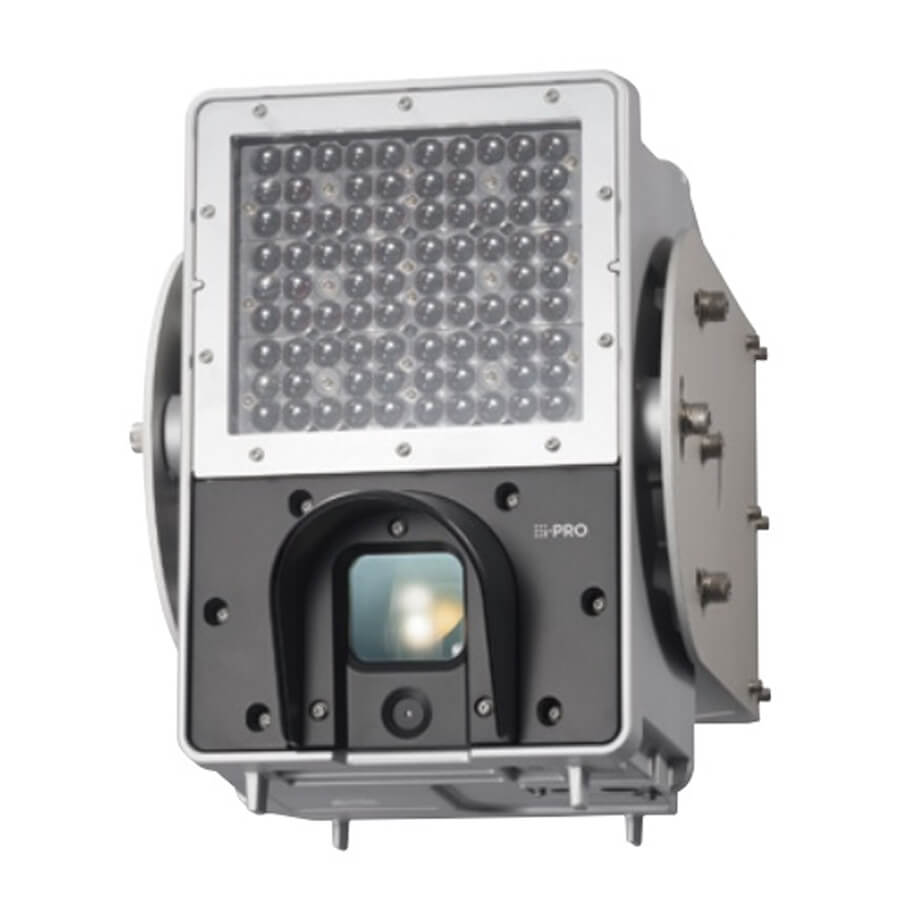

Camera IP nhận diện biển số xe 5.0 Megapixel I-PRO WV-X5550LTPJ
- Cảm biến hình ảnh: 2/3 type CMOS image sensor.
- Độ phân giải: 5.0 megapixels.
- Độ nhạy sáng tối thiểu: BW: 0lx.
- Hỗ trợ các tính năng camera: BLC, HLC, DNR, 120dB WDR.
- Hỗ trợ đèn hồng ngoại.
- Zoom quang: 1.7x.
- Nhiệt độ hoạt động: -40°C to +60°C.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10 (IEC 62262).
Thông số kỹ thuật
| Camera | |
| Image Sensor | 2/3 type CMOS image sensor |
| Minimum Illumination | BW : 0 lx |
| Intelligent Auto | On / Off |
| Multi-sampling Dynamic Range | 120 dB typ |
| Maximum shutter | [15fps/30fps mode] Max. 1/10000 s to Max. 1/30 s [12.5fps/25fps mode] Max. 1/10000 s to Max. 1/25 s |
| Auto contrast adjust | On / Off |
| Adaptive black stretch | The level can be set in the range of 0 to 255. |
| Back light compensation (BLC)/High light compensation(HLC) | BLC/ HLC/ Off ,The level can be set in the range of 0 to 31. (only when Intelligent auto: Off) |
| Maximum gain | The level can be set in the range of 0 to 11. |
| Day/Night | Auto*/ Day/ Night *The level can be set in the range of 0 to 9. |
| IR LED Light | On/ Off |
| Digital noise reduction | The level can be set in the range of 0 to 255. |
| Lens | |
| Optical zoom | 1.7 x (Motorized zoom / Motorized focus) |
| Focal length | 51 mm – 85 mm {2-9/16 inches – 3-11/32 inches} |
| Maximum Aperture Ratio | 1 : 1.6 |
| Focus range | 25 m ± 5 m |
| Angular Field of view | [4 : 3 mode] Horizontal : 5.5 ° (TELE) – 9.2 ° (WIDE) Vertical : 4.4 ° (TELE) – 7.3 ° (WIDE) |
| Adjusting angle | |
| Adjusting angle | Horizontal : ± 17 ° (can be adjusted with the installation angle of the TILT bracket) Vertical : -10 ° to +10 °, Yaw : none |
| Network | |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264 JPEG (MJPEG) | •H.265/ H.264 Dual sources [4:3] (15fps mode) Dual sources [4:3] (12.5fps mode) Single source [4:3] (30fps mode) Single source [4:3] (25fps mode) 2560×1920, 1600×1200, 1280×960, 640×480 •JPEG (MJPEG) 1280x960, 640x480 |
| H.265/ H.264 | Transmission Mode: VBR / Frame rate Transmission Type: Unicast port (AUTO) / Unicast port (MANUAL) / Multicast |
| Network | |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, NTP, IGMP, ICMP, ARP |
| Maximum concurrent access number | 14 (Number of sessions that can connect to cameras at the same time) *Depends on network conditions |
| Mobile Terminal Compatibility | iPad / iPhone, AndroidTM terminals |
| ONVIF Profile | S |
| General | |
| Safety | UL (UL62368-1), c-UL (CAN/CSA C22.2 NO.62368-1), CE (EN62368-1) |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassA, EN55024 |
| Power Source and Power Consumption | AC24 V 3.8 A, Approx. 68 W |
| Ambient Operating Temperature | -40 °C to +60 °C {–40 °F to +140 °F} {Power On range: –20 °C to +60 °C (–4 °F to +140 °F)} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC62262) (Except for front panels) |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Dimensions | Ceiling mount : 303 mm {11-15/16 inches} (W) 452 mm {17-25/32 inches} (H) 368 mm {14-1/2 inches} (D) Wall mount : 303 mm {11-15/16 inches} (W) 388 mm {15-9/32 inches} (H) 458 mm {18-1/32 inches} (D) Stationary mount : 303 mm {11-15/16 inches} (W) 435 mm {17-1/8 inches} (H) 368 mm {14-1/2 inches} (D) |
| Mass (approx.) | Main body : Approx. 11.5 kg {25.39 lbs} With TILT bracket : Approx. 16.0 kg {35.32 lbs} |
| Finish | Main body: Aluminum die cast, Silver Glass and Polycarbonate resin, Clear Outer fixing screws: Stainless steel (Corrosion-resistant treatment) TILT bracket: Aluminum plate and Aluminum die cast, Silver |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
