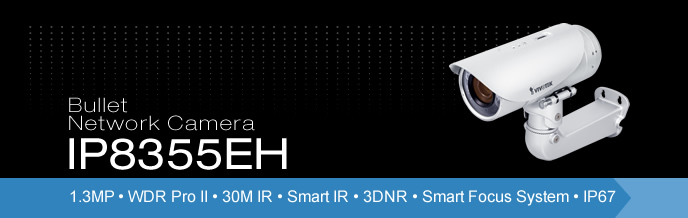

Camera IP hồng ngoại 1.3 Megapixel Vivotek IP8355EH

System Information

CPU

Multimedia SoC (System-on-Chip)

Flash/ RAM

256 MB/ 384 MB

Camera Features

Image sensor

1/3 inch Progressive CMOS

Maximum Resolution

1280 x 1024 (1.3MP)

Lens Type

Vari-focal, Remote Focus

Focal Length

f = 3 ~ 9 mm

Aperture

F1.2 ~ F2.3

Auto-iris

P-iris

Field of View

34° ~ 80° (horizontal), 27° ~ 62° (vertical), 44° ~ 101° (diagonal)

Shutter Time

1/5 sec. to 1/10,000 sec.

WDR Technology

WDR Pro II

Day & Night

Removable IR-cut filter for day & night function. Smart IR Technology to avoid overexposure

Minimum Illumination

0.07 Lux @ F1.2, 50 IRE ( Color ), 0.001 Lux @ F1.2, 50 IRE ( B/W )

Pan / Tilt / Zoom

ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)

IR Illuminators

Built-in IR illuminators, effective up to 30 meters IR LED x 4, with Smart IR Technology

On-board Storage

SD/SDHC/SDXC card slot

Video

Compression

H.264, MJPEG

Maximum Frame Rate

In both compression modes: 30 fps @ 1280 x 1024

Maximum Streams

2 simultaneous streams

S/N Ratio

64 dB

Dynamic Range

140 dB

Video Streaming

Adjustable resolution, quality and bitrate

Image Settings

Time stamp, text overlay, flip & mirror. Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, EIS, video rotation

Audio

Audio Capability

Two-way audio (full duplex)

Compression

AAC, G.711, G.726

Interface

External microphone input. Audio output

Network

Users

Live viewing for up to 10 clients

Protocols

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP

ONVIF

Supported

Interface

10Base-T/100 BaseTX Ethernet (RJ-45)

Intelligent Video

Video Motion Detection

Triple-window video motion detection

Alarm and Event

Alarm Triggers

Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection

Alarm Events

Event notification using digital output, HTTP, SMTP, FTP and NAS server. File upload via HTTP, SMTP, FTP and NAS server

General

Smart Focus System

Remote focus

Connectors

RJ-45 for Network/ PoE connection. Audio input/output. AV output. AC 24V power input. DC 12V power input. Digital input x 1. Digital output x 1

LED Indicator

System power and status indicator

Power input

DC12V/AC24V, IEEE 802.3af PoE

Power consumption

DC Max. 30W (Heater on) 8W (Heater off). AC Max. 30W (Heater on) 8.8W (Heater off) PoE Max. 11W

Dimensions

Ø: 91mm x 221 mm

Weight

Net: 1,314g (Body only)

Casing

Weather-proof IP67-rated housing

Safety Certifications

CE, LVD, FCC Class A, VCCI, C-Tick, UL

System Requirements

Operating System

Microsoft Windows 8/7/Vista/XP/2000

Browser

Mozilla Firefox 7~10 (Streaming only)

Internet Explorer 7/8/9/10

Other Players

VLC: 1.1.11 or above

QuickTime: 7 or above
