0916 287 068 Camera IP dùng dưới nước 4.0 Megapixel HIKVISION DS-2XC6244G0-L
Trang Chủ >>
Camera quan sát >> Camera IP HIKVISION >> Camera IP dùng dưới nước 4.0 Megapixel HIKVISION DS-2XC6244G0-L
Mã số:02596887

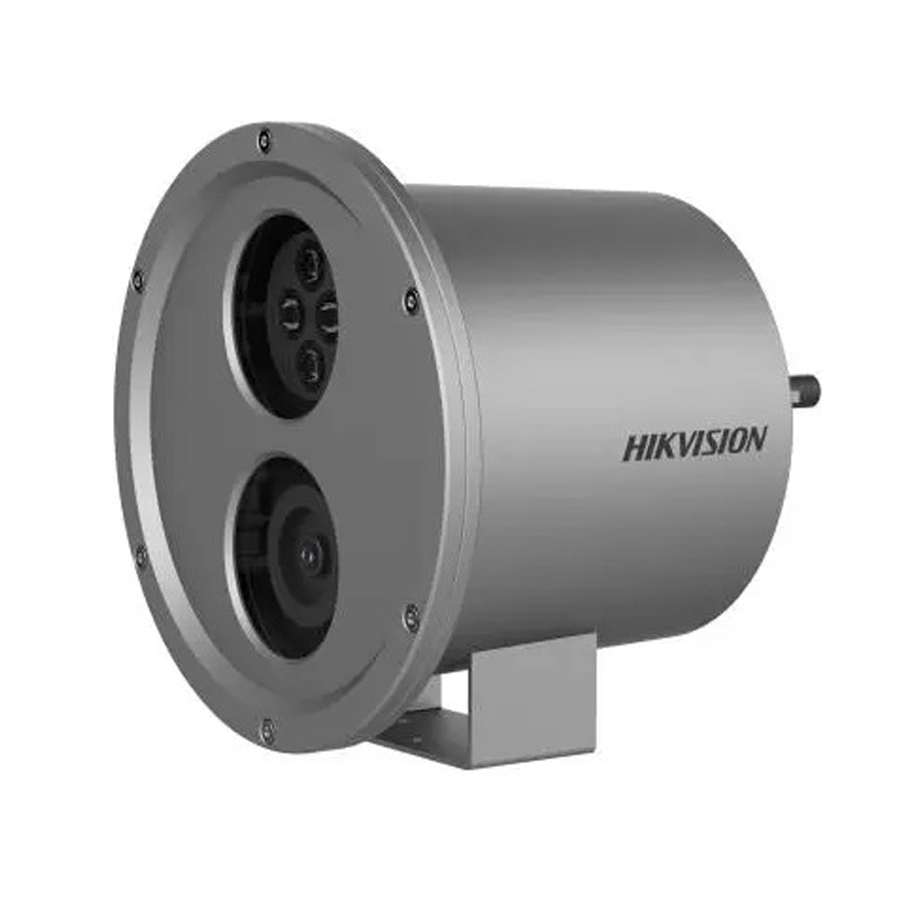

Camera IP dùng dưới nước 4.0 Megapixel HIKVISION DS-2XC6244G0-L
- Cảm biến hình ảnh: 1/1.8 inch Progressive Scan CMOS.
- Độ phân giải: 2688 × 1520.
- Độ phân giải tối thiểu: Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light.
- Hỗ trợ các tính năng camera: 120dB WDR, BLC, HLC, 3D DNR, defog.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264
- Tích hợp thẻ microSD/SDHC/SDXC, lên đến 128GB.
- Camera có thể sử dụng ở dưới nước lên đến 15 mét.
- Tiêu chuẩn chống bụi và nước: IP68 (thích hợp sử dụng trong nhà và ngoài trời).
- Điện áp: 36VDC, PoE.
- Kích thước: 210 x 210 x 205 mm.
- Trọng lượng: 8.3kg.
Thông số kỹ thuật
| Camera | |
| Image Sensor | 1/1.8 inch Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Lens | |
| Lens Type | Varifocal lens, 3 to 9 mm |
| Focal Length & FOV | 3 to 9 mm, horizontal FOV 87° to 45.8°, vertical FOV 46° to 25.6°, diagonal FOV 104° to 52.4° |
| Aperture | F1.0 |
| DORI | |
| DORI | Wide: D: 55.2 m, O: 21.9 m, R: 11.0 m, I: 5.5 m Tele: D: 124.1 m, O: 49.3 m, R: 24.8 m, I: 12.4 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 10m |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 5 fixed regions for each stream |
| Target Cropping | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI, ISUP 5.0 |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, 3D DNR, defog |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection, unattended baggage detection, object removal detection |
| General | |
| Power | 36 VDC ± 20%, 0.6 A, max. 17 W, two-core terminal block PoE (802.3.at, Class 3, 42.5 V to 57 V), 0.45 A to 0.3 A, 17 W |
| Material | SUS 316L Metal |
| Dimension | 210 mm × 210 mm × 205 mm |
| Weight | Approx. 8.300 kg |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 100% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, password protection, privacy mask, watermark, IP address filter, mirror |
| Cable Length | 15 m (49.2 ft.) (included) |
| Approval | |
| EMC | FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013) RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015 IC: IC-VoC (ICES-003 Issue 7:2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28) |
| Safety | UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014 CB: IEC 62368-1:2014 BIS: IS 13252 ( Part 1) 2010+A1:2013+A2:2015 LOA: SANS IEC60950-1 |
| Protection | IP68 (IEC 60529-2013) |
- Bảo hành: 24 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
