0916 287 068 Camera IP Dome hồng ngoại AVTECH AVM521CP

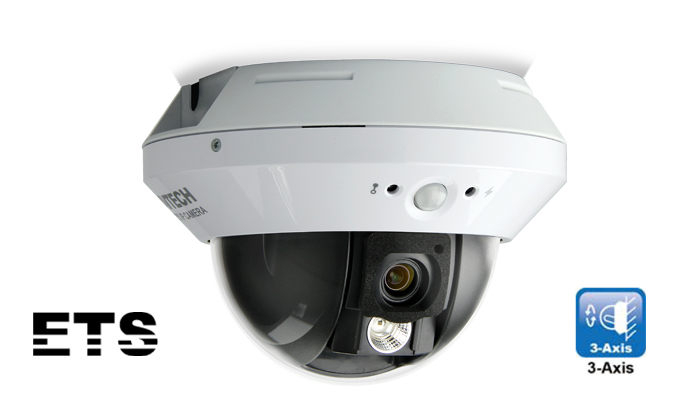

Camera IP Dome hồng ngoại AVTECH AVM521CP
- Cảm biến hình ảnh: 1/2.9” HD CMOS IMAGE SENSOR
- Kỹ thuật nén camera ip H.264 / MPEG4 / MJPEG
- Độ phân giải: 2 Megapixels
- Ống kính: f3.8mm / F1.5
- Tầm quan sát hồng ngoại: 15 mét.
- Hỗ trợ thẻ nhớ Micro SD.
- Chuẩn camera quan sát ONVIF.
- Chức năng cấp nguồn qua mạng PoE.
- Hỗ trợ giám sát qua iPhone, iPad, Blackberry, Windows Mobile, Symbian, Android…
- 3-axis mechanism for flexible ceiling and wall-mount installation
- MicroSD card support for video storage
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- External alarm I/O device connection
- ONVIF standard supported to simplify system integration
- WDR to increase image recognizability in overexposure and dark areas
- Remote Surveillance - Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system -- Push Video available on your iOS and Android devices when used with Push Video NVR series.
- Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
lSmart Light Control to dynamically adjust image performance for clear and accurate images
Specifications
|
Network |
|
|
Network Compression |
H.264 / MJPEG |
|
Multiple Video Streaming (Encode Modes, IPS, Resolution) |
4 (H.264, MJPEG) |
|
LAN Port |
YES |
|
LAN Speed |
10/100 Based-T Ethernet |
|
Supported Protocols |
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS |
|
ONVIF Compatible |
YES |
|
Frame Rate |
30/25fps |
|
Number of Online Users |
10 |
|
Security |
(1)Multiple user access levels with password |
|
(2)IP address filtering |
|
|
(3)Digest authentication |
|
|
Remote Access |
(1) Internet Explorer on Windows operating system |
|
(2) EagleEyes on iOS & Android devices |
|
|
(3) CMS software ( 36CH / 16CH version free download from AVTECH official website) for up to 36 network cameras control simultaneously |
|
|
Camera |
|
|
Image Sensor |
1/2.9' HD CMOS image sensor |
|
Video Resolution |
1080P to CIF |
|
Min Illumination |
0.1 Lux / F1.5, 0 Lux (LED ON) |
|
Shutter Speed |
1/10,000 ~ 1/7.5 (Slow shutter) |
|
S/N Ratio |
More than 48dB (AGC off) |
|
Lens |
f3.8mm / F1.5 |
|
Viewing Angle |
83.2° (Diagonal) / 73.2° (Horizontal) / 42.8° (Vertical) |
|
White Balance |
ATW |
|
IR LED |
1 Unit |
|
IR Effective Distance |
Default : up to 15 meters |
|
PIR Sensor |
Detection Range 76° wide angle with up to 5m long distance at 2.5m height (under 30℃) |
|
IR Shift |
YES |
|
WDR |
YES |
|
Smart Light Control |
YES |
|
General |
|
|
AGC |
Auto |
|
IRIS Mode |
AES |
|
POE |
YES (IEEE 802.3af) |
|
External Alarm I/O |
YES (1 in / 1 out) |
|
Line in / out |
YES |
|
MicroSD Card Slot |
YES |
|
Power Source (±10%) |
12V / 1A |
|
Operating Temperature |
0℃~40℃ |
|
Current Consumption (±10%) |
400mA |
|
Others |
|
|
Mobile Surveillance |
iOS & Android mobile devices |
|
Motion Detection |
YES |
|
Event Notification |
FTP / Email / SMS |
|
3-Axis |
YES |
|
RTC (real-time clock) |
YES |
|
Digital Pan / Tilt / Zoom |
|
|
Minimum Web Browsing Requirements |
Intel core i3 or higher, or equivalent AMD |
|
2GB RAM |
|
|
AGP graphics card, Direct Draw, 32MB RAM |
|
|
Windows 7, Vista & XP, DirectX 9.0 or later |
|
|
Internet Explorer 7.x or later |
|
- Sản xuất tại Đài Loan.
- Bảo hành: 24 tháng.
