0916 287 068 Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Vision XND-6080R/KAP
Trang Chủ >>
Camera quan sát >> Camera IP Hanwha Vision >> Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Vision XND-6080R/KAP
Mã số:02060178

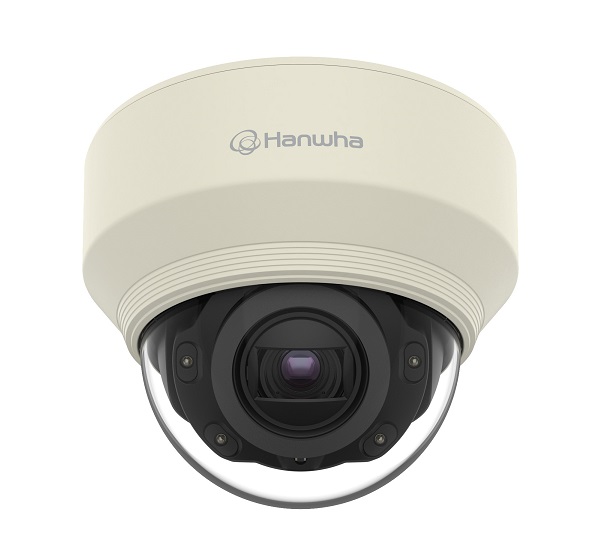

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Vision XND-6080R/KAP
-Cảm biến hình ảnh: 1/2.8 inch CMOS.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 512GB.
-Ống kính camera ip: 2.8 ~ 12mm.
-Góc quan sát theo chiều ngang: 119.5º ~ 27.9º; theo chiều dọc: 62.8º ~ 15.7º, phương chéo: 142.1º ~ 32º.
-Tầm quan sát hồng ngoại: 30 mét.
-Chức năng quan sát Ngày và Đêm (ICR).
-Chức năng chống ngược sáng WDR.
-Chức năng chống sương mù Defog.
-Chức năng giảm nhiễu số SSNRV (2D+3D).
-Chức năng phát hiện chuyển động: Off / On (8ea, 8point polygonal zones), Handover.
-1 ngõ vào báo động, 1 ngõ ra báo động.
-Kết nối mạng: RJ45 (10/100Base-T).
-Hỗ trợ LDC (Lens Distortion Correction).
-Nguồn điện: 12VDC ± 10%.
-Chức năng cấp nguồn qua mạng PoE.
-Kích thước: Ø140.8 x 113.0mm.
-Trọng lượng: 624g.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) |
| Effective Pixels | 2,616(H) x 1,976(V) |
| Scanning System | Progressive Scan |
| Min. Illumination | Color: 0.015Lux (F1.4, 1/30sec), B/W: 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8 ~ 12mm (4.3x) motorized varifocal |
| Max. Aperture Ratio | F1.4 (Wide) ~ F3.6 (Tele) |
| Angular Field of View | H : 119.5º ~ 27.9º/ V : 62.8º ~ 15.7º / D : 142.1º ~ 32.0º |
| Lens Type | DC auto iris, P-Iris |
| Mount Type | Board-in type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 354° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| IR Viewable Length | 30m |
| Camera Title | Off / On (Displayed up to 85 characters per line) |
| - W/W: English / Numeric / Special characters | |
| - China: English / Numeric / Special / Chinese characters | |
| - Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), | |
| Transparency, Auto scale by resolution | |
| Day & Night | True Day & Night |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement (DWDR) | SSNR (Off / On) |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Defog | Off / Auto (Input from fog detection) / Manual |
| Motion Detection | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Privacy Masking | Off / On (6ea rectangular zones) |
| Gain Control | Off / Low / Middle / High |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Off/On, Hallway view 90º / 270º |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Intelligent Video Analytics | Motion detection with metadata, Tampering, Defocus detection |
| Alarm I/O | Input 1 / Output 1 |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output |
| Pixel Counter | Support |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/ H.264: Max. 60fps at all resolutions, MJPEG : Max. 30fps |
| Smart Codec | WiseStreamII |
| Video Quality Adjustment | H.265 / H.264: Target bitrate level control, MJPEG: Quality level control |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Audio I/O | Line in/ Line out, Max output level : 1Vrms |
| Audio Compression Format | G.711 u-law / G.726 selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Audio Communication | Uni-directional audio |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at unicast mode |
| Storage | SD/SDHC/SDXC 2 slot (Up to 512GB) - Continuous recording (1st slot to 2nd slot) NAS (Network Attached Storage), Local PC for instant recording |
| Application Programming Interface | ONVIF profile S/G, HTTP API (SUNAPI) |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian |
| Web Viewer | Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10 |
| Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only | |
| Central Management Software | SmartViewer |
| Ingress Protection / Vandal Resistance | IK08 |
| ELECTRICAL | |
| Input Voltage / Current | 12VDC, PoE (IEEE802.3af, Class3) |
| Power Consumption | Max. 9W (12VDC), Max. 10W (PoE) |
| Color / Material | Ivory / Plastic |
| Dimensions | Ø140.8 x 113.0mm |
| Weight | 624g |
-Bảo hành: 24 tháng.
Giá: Vui lòng gọi
