0916 287 068 Camera IP Dome 2.0 Megapixel Vivotek MD8563-DEH
Trang Chủ >>
Camera quan sát >> Camera IP Vivotek >> Camera IP Dome 2.0 Megapixel Vivotek MD8563-DEH
Mã số:02020219

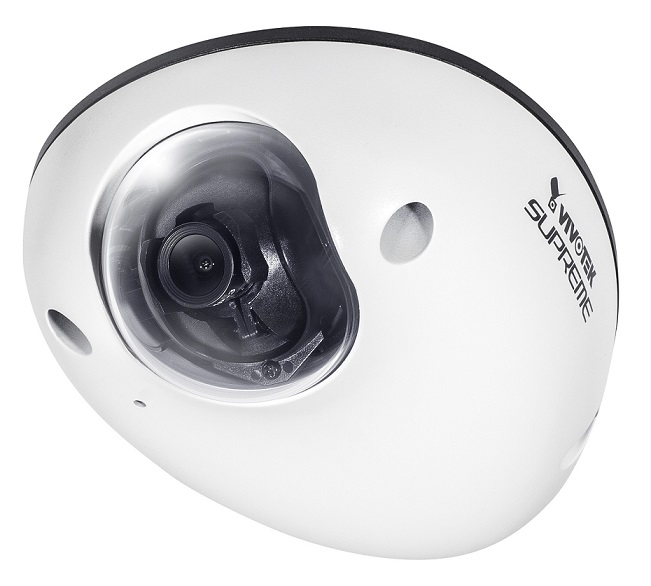

Camera IP Dome 2.0 Megapixel Vivotek MD8563-DEH
-Cảm biến hình ảnh: 1/2.7 inch CMOS.
-Chuẩn nén hình ảnh: H.264, MJPEG.
-Độ phân giải camera ip: 2.0 Megapixel (1920 x 1080).
-Hỗ trợ khe cắm thẻ nhớ microSD/SDXC/SDHC.
-Ống kính: 2.8 ~ 3.6mm (Fixed-focal).
-Zoom số: 48x.
-Hỗ trợ âm thanh: 2 chiều.
-Tích hợp microphone.
-Số người truy cập đồng thời là: 10 người.
-Chức năng quan sát Ngày và Đêm (IR-CUT).
-Chức năng chống ngược sáng WDR Pro.
-Chức năng Smart Stream II.
-Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
-Tiêu chuẩn chống va đập: IK10.
-Hỗ trợ trình duyệt Web: Internet Explorer 10/11, Mozilla Firefox 7~43 (streaming only).
-Hỗ trợ hệ điều hành: Microsoft Windows 8/7.
-Nguồn điện: 8 ~ 36VDC.
-Công suất tiêu thụ: 4.2W.
-Kích thước: 129 x 107 x 54mm.
-Trọng lượng: 455g.
Đặc tính kỹ thuật
| Model | MD8563-DEH (2.8mm): f = 2.8 mm, DC |
| MD8563-DEH (3.6mm): f = 3.6 mm, DC | |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 256MB |
| Camera Features | |
| Image Sensor | 1/2.7 inch Progressive CMOS |
| Maximum Resolution | 1920x1080 |
| Lens Type | Fixed-focal |
| Focal Length | MD8563-DEH (2.8mm): f = 2.8 mm |
| MD8563-DEH (3.6mm): f = 3.6 mm | |
| Aperture | MD8563-DEH (2.8mm): F1.8 |
| MD8563-DEH (3.6mm): F2.0 | |
| Iris type | Fixed-iris |
| Field of View | MD8563-DEH (2.8mm): |
| 114° (Horizontal) | |
| 65° (Vertical) | |
| 119° (Diagonal) | |
| MD8563-DEH (3.6mm): | |
| 96° (Horizontal) | |
| 53° (Vertical) | |
| 115° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Minimum Illumination | MD8563-DEH (2.8mm): |
| 0.21 Lux @ F1.8 (Color) | |
| MD8563-DEH (3.6mm): | |
| 0.23 Lux @ F2.0 (Color) | |
| Pan Range | ± 5° |
| Tilt Range | 90° |
| Pan/Tilt/Zoom Functionalities | ePTZ:48x digital zoom |
| (4x on IE plug-in,12x built in) | |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| 45 fps @ 1280x720 | |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | MD8563-DEH (2.8mm): 55 dB |
| MD8563-DEH (3.6mm): 60 dB | |
| Dynamic Range | 100dB |
| Video Streaming | Adjustable resolution, quality and bitrate Smart Stream II |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog |
| Audio | |
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726 |
| Interface | Built-in microphone |
| External line output | |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS, NTCIP |
| Interface | 10 Base-T/100 Base-TX Ethernet |
| (M12, Female, 4pin D-coded) | |
| It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection,manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD Card. File upload via HTTP, SMTP, FTP, NAS server and MicroSD Card |
| General | |
| Connectors | M12 for Network connection |
| Built-in microphone x 1 | |
| Audio line out | |
| Digital input x 1 | |
| Digital output x 1 | |
| DC Power input x 1 | |
| LED Indicator | System power and status indicator |
| Power Input | 8 ~ 36VDC |
| Power Consumption | Max. 4.2W |
| Dimensions | 129 (D) x 107 (W) x 54 (H) mm |
| Weight | 455g |
| Casing | IP67, IK10 |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL, EN50155 TX, IEC60571, EN61373, EN50121-3-2, EN50121-4, E-Mark |
| Operating Temperature | Working Temperature: -40°C ~ 70°C (-40°F~ 158°F) |
| Starting Temperature: -40°C ~ 70°C (-40°F~ 158°F) | |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Web Browser | Internet Explorer 10/11 |
| Mozilla Firefox 7~43 (streaming only) | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
-Bảo hành: 36 tháng.
Giá: 20.040.000 VND
(Đã bao gồm VAT)
