0916 287 068 Bộ khuếch đại âm thanh 2 kênh WHARFEDALE PRO DP-2200
Trang Chủ >>
Âm thanh thông báo >> Âm thanh Wharfedale Pro >> Bộ khuếch đại âm thanh 2 kênh WHARFEDALE PRO DP-2200
Mã số:23133825

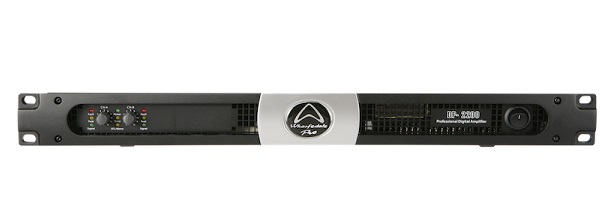

Bộ khuếch đại âm thanh 2 kênh WHARFEDALE PRO DP-2200
- Suitable for professional live sound reinforcement or fixed installations, the stereo DP-2200 delivers extreme power from a light weight box.
- Its advanced switch mode power supply and super-efficient Class D topology delivers high power with low distortion.
- DP series are also stable all the way down to 2Ω. This means they will drive multiple 8Ω or 16Ω loudspeakers.
Key Features
- Super light weight - Only 9.28kg.
- Stereo configuration.
- Power Output 8Ω: 2 x 2000W.
- 6800w@8Ω BTL.
- Ultra-quiet variable speed fans.
- Advanced protection circuitry.
- Class D topology.
- Stable at 2Ω. Drive multiple 8Ω or 16Ω loudspeakers.
- Color: Black.
Specifications
| Model | DP-2200 |
| Power Output | |
| Stereo power output 8Ω | 2 x 2000W |
| Stereo power output 4Ω | 2 x 3400W |
| Stereo power output 2Ω | 2 x 4760W |
| Bridged mono output 16Ω | 4000W |
| Bridged mono output 8Ω | 6800W |
| Bridged mono output 4Ω | 9520W |
| Input sensitivity & Impedance | |
| Sensitivity | Selectable 41/38/35/32dB |
| Balanced XLR input | 20kΩ |
| Max input level | 22dBu (9.7Vrms) |
| Voltage gain | 41dB |
| S/N | >112dB |
| Slew rate | >50V/ μs |
| Distortion (1W) | <0.02% |
| Crosstalk | <-90dB |
| Frequency response | |
| +/-1dB @ 8Ω | 20Hz - 20kHz |
| +/-3dB @ 8Ω | 20Hz - 30kHz |
| Damping factor | >5000 |
| Topology | Class D |
| Connectors | |
| Signal input | Female & Male XLR jacks |
| Power output | speakON compatible |
| Controls | |
| Front panel | AC Switch, CH and CH2 gain knobs |
| Rear panel | Parallel, Stereo & Bridge mode switch, Limiter switch Thermal, Over-current, Output DC, Output short protect |
| Indicators | Power, Protect, Signal, Limiter |
| Cooling | Variable speed fan |
| AC Power | 100 ~ 240VAC, 50 ~ 60Hz |
| Dimensions | 44 x 485 x 370mm |
| Weight (Net) | 9.28kg |
| Weight (Gross) | 11.3kg |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
