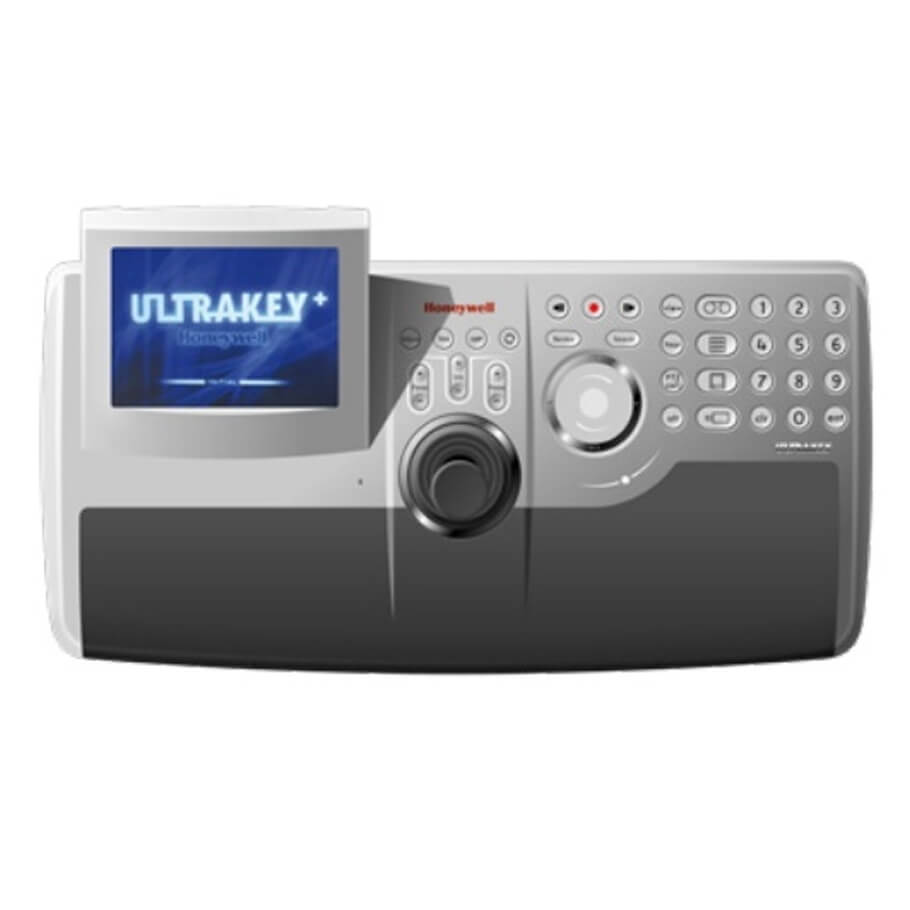

Bàn phím điều khiển HONEYWELL HJK7000
- Khả năng tương thích: MAXPRO-Net, MAXPRO VMS, MAX-1000, VideoBloX standard and NetCPU
- Tốc độ giao tiếp: 9600, 19200, 38400 baud
- Bàn phím: Tạm thời, nút ấn, số và lệnh menu tiêu chuẩn
- Kết nối:
o 1×Ethernet (10Base-T, 100Base-TX) RJ45 with LED
o 1×RS232/422/485 RJ45 with LED
- Nguồn điện: 100 - 240 VAC/10.8 to 13.2 VDC @ 1 A or POE (48 VDC, Class 3)/12 W
Thông số kỹ thuật
| Model | HJK7000 |
| Operational | |
| Compatibility | MAXPRO-Net, Pro-Watch and MAXPRO VMS, MAX-1000, VideoBloX standard and NetCPU |
| Communication Speeds | 9600, 19200, 38400 baud |
| Operating Distances | RS485/RS422: 1219m, RS232: 15.2m, Ethernet 100m |
| Color Touch Screen | TFT, LED Backlight, 320x249 |
| Joystick | 3-D axis proportional control |
| Keypad | Momentary, push-button, numeric and standard menu commands |
| Touch Wheel | Touch sensitive with 4 button touch ring |
| PTZ Dome Control | Full PTZ control using joystick, keypad control of iris open/close/auto and focus far/near/auto |
| Connections | |
| Connectors | 1×Ethernet (10Base-T, 100Base-TX) RJ45 with LED 1×RS232/422/485 RJ45 with LED Locking 12 VDC power connector |
| Electrical | |
| Input Voltage | 100 - 240 VAC |
| Operating Voltage | 10.8 to 13.2 VDC @ 1 A or POE (48 VDC, Class 3) |
| Power Consumption | 12W |
| Mechanical | |
| Dimensions (W x H x D) | 437 × 222 x 109 mm |
| Weight | 3.2kg |
| Construction Housing | ABS+PC (cool grey) |
| Environmental | |
| Temperature | Operating: 14 to 131° F (-10 to +55° C) Storage: -40 to 167° F (-40 to +75° C) |
| Relative Humidity | 0%-95% (non-condensing) |
- Bảo hành: 24 tháng.
