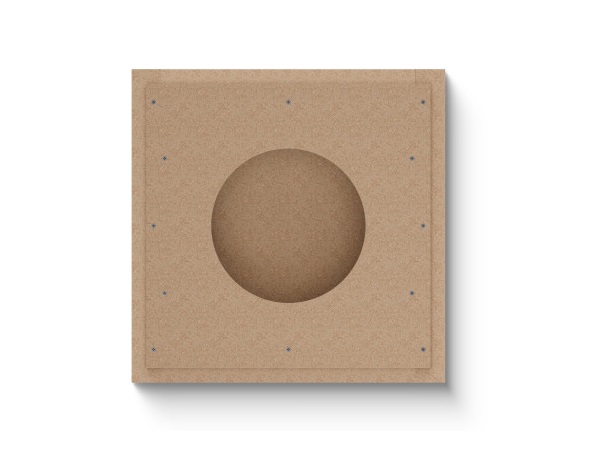

Back Box Install 10 LOXONE (610160)
Part Number: 610160
- The built-in housing is the perfect complement for the Install Speaker 10 for when you want to use it in an open installation environment (such as a perforated acoustic ceiling).
o Dimensions: 475x475 mm
o Installation depth including baffle: 136 mm
o Speaker outlet: Ø258 mm
o Internal volume: 18L
o Cable entry: 2x20 mm
o Material: medium-density fibreboard (MDF), dampened with acoustic fleece
o Pre-drilled holes and millings for easy installation
Thông số kỹ thuật
Product dimensions (baffle) | 475 x 475 mm |
Product dimensions (rear box without baffle) |
425 x 425 x 124 mm |
Installation depths | 136 mm |
Speaker outlet | Ø258mm |
Interior volume | 18L |
Net weight | 5.6 kg |
Surface | unprocessed |
Insulating material back wall | acoustic fleece (polyester) |
- Bảo hành: 24 tháng.
Giá: Vui lòng gọi
