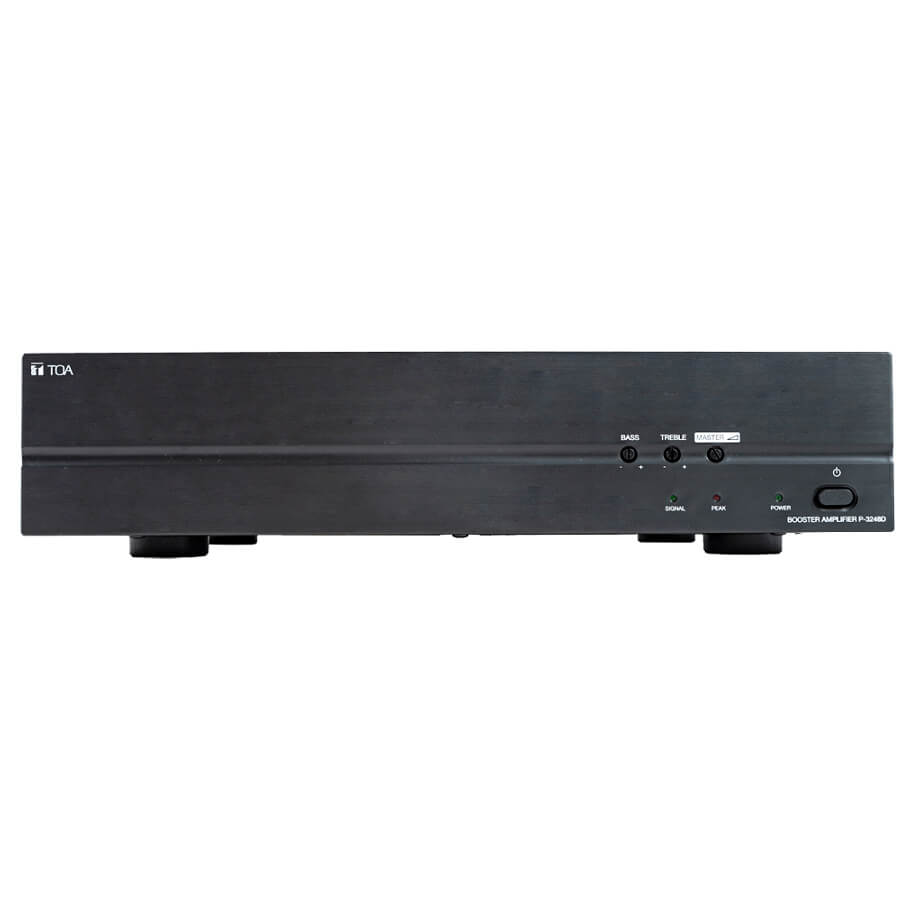

Amply công suất ClassD 480W TOA P-3248D AS

Trang Chủ >> Âm thanh thông báo >> Âm thanh TOA >> Amply công suất ClassD 480W TOA P-3248D AS
Mã số:23024223
Amply công suất ClassD 480W TOA P-3248D AS

Amply công suất ClassD 480W TOA P-3248D AS

- P-3248D AS is a high performance yet cost-effective digital booster amplifier equipped suited for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.

- High durability, high reliability and high cost performance.

- Two balanced parallel inputs, one speaker line input.

- Speaker output of constant voltage distribution system (100V) and low impedance (4Ω).

- Operate on both AC and DC Power.

- Semi fixed master volume control and independent speaker line input volume control.

- Semi fixed and independent tone control of boost and cut type for both high and low frequencies.

- Remote power control by make contact input.

- Power Source: 100 – 240VAC, 50/60Hz or 24VDC.

- Rated Output: 480W.

- Power Consumption: 99 W (AC operation at 1/8 maximum output without clip).

- Frequency Response: 50 - 20,000 Hz.

- Input: Line In: 0 dB, 10 kΩ, balanced, screw terminal.

- 100 V Line In: 40 dB, 30 kΩ, unbalanced, screw terminal.

- Output: Speaker out: Speaker Output in screw type terminal.

- Direct line (selectable): 21 Ω (100 V) or 4 Ω.

- Rec out: 0 dB, 600 Ω, unbalanced, screw terminal.

- Control: Remote power control, screw terminal.

- Remote master volume bypass, screw terminal.

- S/N Ratio: Over 70 dB.

- Total Harmonic Distortion: Under 1% at 1 kHz, 1/3 rated power.

- Tone Control: Bass: ±10 dB at 100 Hz.

- Treble: ±10 dB at 10 kHz

- Indicator: Power, Signal, Peak.

- Ventilation: Fan Cooling.

- Panel: ABS resin, black.

- Case: Steel plate, black.

- Dimensions: 420 × 100.9 × 351.3mm.

- Weight: 5.2kg.

- Xuất xứ Indonesia.

- Bảo hành: 12 tháng.
