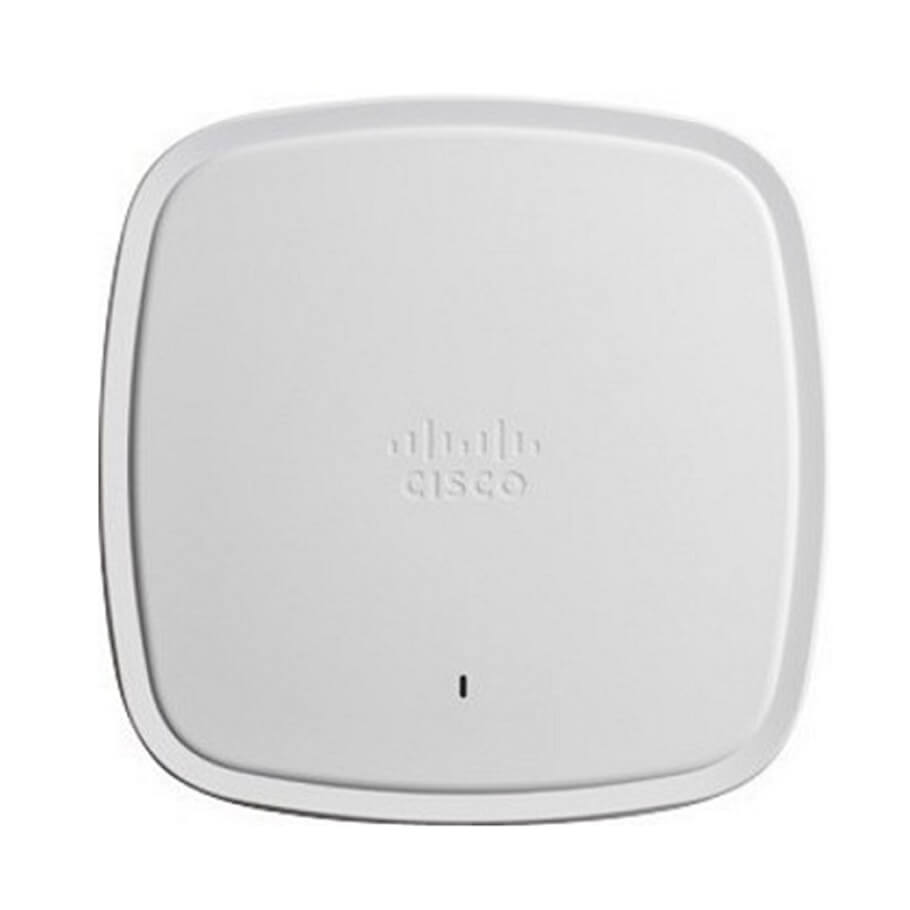

Wireless Access Point CISCO C9130AXI-S
- Cisco Catalyst 9130AXI Access Point: Indoor environments, with internal antennas.
- Interfaces: 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45); Management console port (RJ-45); USB 2.0 at 4.5W.
- System memory: 2048 MB DRAM; 1024MB flash.
- Dimensions (W x L x H): 22.6 x 22.6 x 4.8 cm.
- Weight: 1.45kg.
Specifications
| Software | - Cisco Unified Wireless Network Software Release 8.10.x or later - Cisco IOS XE Software Release 16.12.1 with AP Device Pack, or later |
| Supported wireless LAN controllers | - Cisco Catalyst 9800 Series Wireless Controllers - Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | - 4x4 MIMO with four spatial streams - Maximal Ratio Combining (MRC) - 802.11n and 802.11a/g - 20- and 40-MHz channels - PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) - 802.11 Dynamic Frequency Selection (DFS) - Cyclic Shift Diversity (CSD) support |
| 802.11ac | - 8x8 downlink MU-MIMO with eight spatial streams - MRC - 802.11ac beamforming - 20-, 40-, 80-, and 160-MHz channels - PHY data rates up to 3.4 Gbps (8x8 80 MHz or Dual 4x4 80+80 MHz on 5GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support - Wi-Fi Protected Access (WPA) 3 support |
| 802.11ax | - 8x8 uplink/downlink MU-MIMO with eight spatial streams - Uplink/downlink OFDMA - TWT - BSS coloring - MRC - 802.11ax beamforming - 20-, 40-, 80-, and 160-MHz channels - PHY data rates up to 5.38 Gbps (8x8 80 MHz or Dual 4x4 80+80 MHz on 5GHz and 4x4 20 MHz on 2.4) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support - WPA3 support |
| Integrated antenna | - 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth - 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | - 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) - Management console port (RJ-45) - USB 2.0 at 4.5W |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) (without mounting brackets) | 22.6 x 22.6 x 4.8 cm |
| Weight | 1.45 kg |
| Input power requirements | - 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE) - Cisco power injector, AIR-PWRINJ6= - 802.3af PoE - Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) |
| Environmental | - Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) - Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) - Operating temperature: 32° to 122°F (0° to 50°C) - Operating humidity: 10% to 90% (noncondensing) - Operating altitude test: 40˚C, 9843 ft (3000 m) |
| System memory | - 2048 MB DRAM - 1024 MB flash |
- Bảo hành: 12 tháng.
