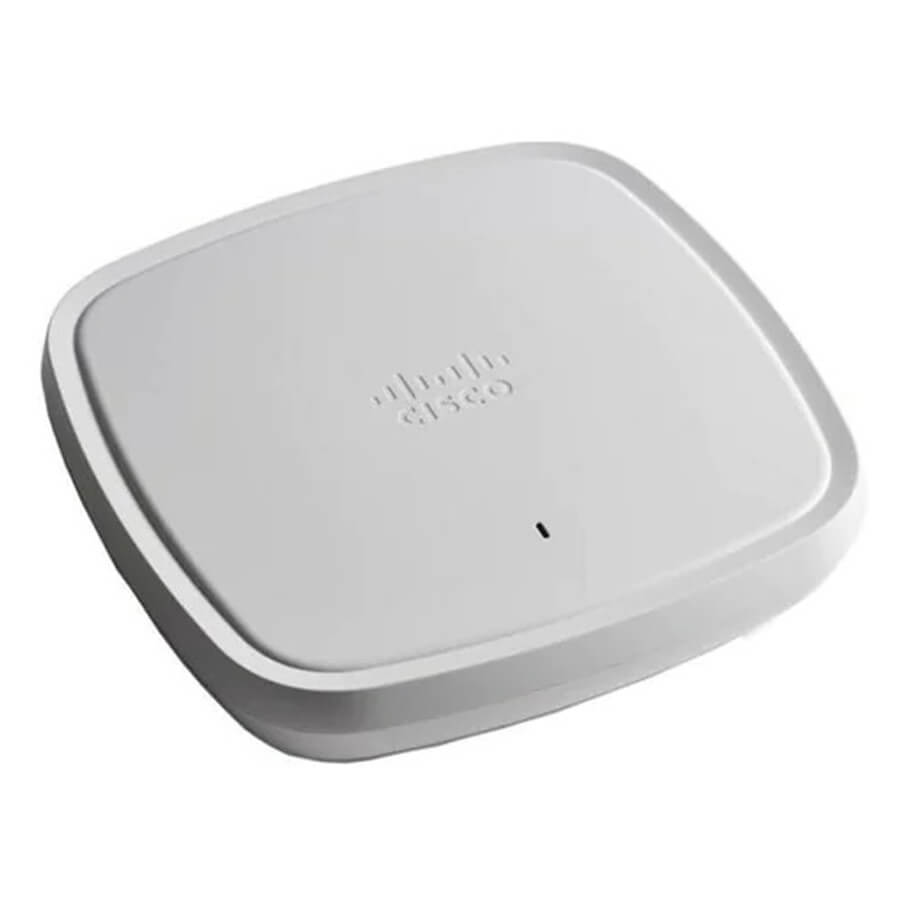

Wireless Access Point CISCO C9120AXI-S
- Cisco Catalyst 9120AXI Access Point: Indoor environments, with internal antennas.
- Interfaces: 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz; Auto-MDIX support; Management console port (RJ-45); USB 2.0 @ 4.5W.
- Integrated Bluetooth Low Energy 5 radio to enable IoT use cases such as location tracking and wayfinding.
- Dimensions (W x L x H): 21.6 x 21.6 x 4.3 cm.
Specifications
| General | |
| Software | Cisco Unified Wireless Network Software Release 8.9.x or later Cisco IOS XE Software Release 16.11 with AP Device Pack, or later |
| Supported wireless LAN controllers | Cisco Catalyst 9800 Series Wireless Controllers Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | - 4x4 MIMO with four spatial streams - Maximal Ratio Combining (MRC) - 802.11n and 802.11a/g beamforming - 20- and 40-MHz channels - PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 Dynamic Frequency Selection (DFS) - Cyclic Shift Diversity (CSD) support |
| 802.11ac | - 4x4 downlink MU-MIMO with four spatial streams - MRC - 802.11ac beamforming - 20-, 40-, 80-, and 160-MHz channels - PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support |
| 802.11ax | - 4x4 downlink MU-MIMO with four spatial streams - Uplink/downlink OFDMA - TWT - BSS coloring - MRC - 802.11ax beamforming - 20-, 40-, 80-, and 160-MHz channels - PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support |
| Integrated antenna | - Flexible radio (either on 2.4 GHz or on 5 GHz) + 2.4GHz, peak gain 4dBi, internal antenna, omnidirectional in azimuth + 5GHz, peak gain 5dBi, internal antenna, omnidirectional in azimuth - Dedicated 5-GHz radio + 5GHz, peak gain 5dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | - 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz Auto-MDIX support - Management console port (RJ-45) - USB 2.0 @ 4.5W |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): 21.6 x 21.6 x 4.3 cm |
| Weight | 1.3kg |
| Environmental | - Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) - Nonoperating (storage) altitude test: 25˚C, 15,000 ft. - Operating temperature: 32° to 122°F (0° to 50°C) - Operating humidity: 10% to 90% (noncondensing) - Operating altitude test: 40˚C, 9843 ft. |
| System memory | 2048 MB DRAM 1024 MB flash |
| Features and benefits | |
| Wi-Fi 6 (802.11ax) | The IEEE 802.11ax emerging standard, also known as High-Efficiency-Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard. |
| Cisco RF ASIC | Cisco RF ASIC is a fully integrated Software-Defined Radio (SDR) that can perform advanced RF spectrum analysis and delivers features like Cisco CleanAir, Wireless Intrusion Prevention System (wIPS), Fast Locate*, and DFS detection. (*Future) |
| Uplink/downlink OFDMA | Orthogonal Frequency-Division Multiple Access (OFDMA)-based scheduling splits the bandwidth into smaller chunks called Resource Units (RUs), which can be allocated to individual clients in both the downlink and uplink directions to reduce overhead and latency. |
| MU‑MIMO technology | Supporting four spatial streams, Multiuser Multiple Input, Multiple Output (MU-MIMO) enables access points to split spatial streams between client devices, to maximize throughput. |
| BSS coloring | Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions. |
| Target wake time | A new power savings mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices, up to three to four times greater compared to 802.11n and 802.11ac. |
| Intelligent Capture | Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. The software can track over 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks. |
| Flexible Radio Assignment | Allows the access points to intelligently determine the operating mode of serving radios based on the RF environment. The access points can operate in the following modes: + 2.4-GHz and 5-GHz mode: One radio will serve clients in 2.4-GHz mode, while the other serves clients in 5-GHz mode. + Dual 5-GHz mode: Both radios inside the access point operate on the 5-GHz band, maximizing the benefits of Wi-Fi 6 and increasing client device capacity. |
| Dual 5-GHz radio support | Enables both radios to operate in 5-GHz client serving mode, allowing an industry-leading 5.2 Gbps (2 x 2.6 Gbps) over-the-air speeds while increasing client capacity. |
| Smart antenna connector | An intelligent second physical antenna connector is included on 9120AX Series access points with an external antenna. This connector provides advanced network design flexibility for high-density and large open-area environments such as auditoriums, convention centers, libraries, cafeterias, and arenas/stadiums, allowing two sets of antennas to be connected and active on a single access point. |
| Cisco Embedded Wireless Controller | The 9120AX Series Wi-Fi 6 access points is available with a built-in controller. The Cisco Embedded Wireless Controller on Catalyst 9100 Access Points provides an easy-to-deploy and manage option that does not require a physical appliance. The control resides on the access point so there is no added footprint or complexity. And, because it uses Cisco Catalyst 9800 Series code, it’s easy to migrate your network as your needs grow. For more details refer to the EWC data sheet. |
| Application Hosting on Catalyst 9100 Access | Application Hosting on Catalyst 9100 Access Points helps future-proof and simplify IoT deployments by eliminating the need to install and manage overlay networks. Utilizing the USB interface, containerized applications and hardware modules can be deployed to reduce cost and complexity. Adding Cisco DNA Center provides workflows and deployment-wide application lifecycle management. |
| Multigigabit Ethernet support | Provides uplink speeds of 2.5Gbps, in addition to 100Mbps and 1Gbps. All speeds are supported on Category 5e cabling for an industry first, as well as 10GBASE-T (IEEE 802.3bz) cabling. |
| Bluetooth radio | Integrated Bluetooth Low Energy 5 radio to enable IoT use cases such as location tracking and wayfinding. |
| Container support for applications | Enables edge computing capabilities for IoT applications on the host access point. |
- Bảo hành: 12 tháng.
