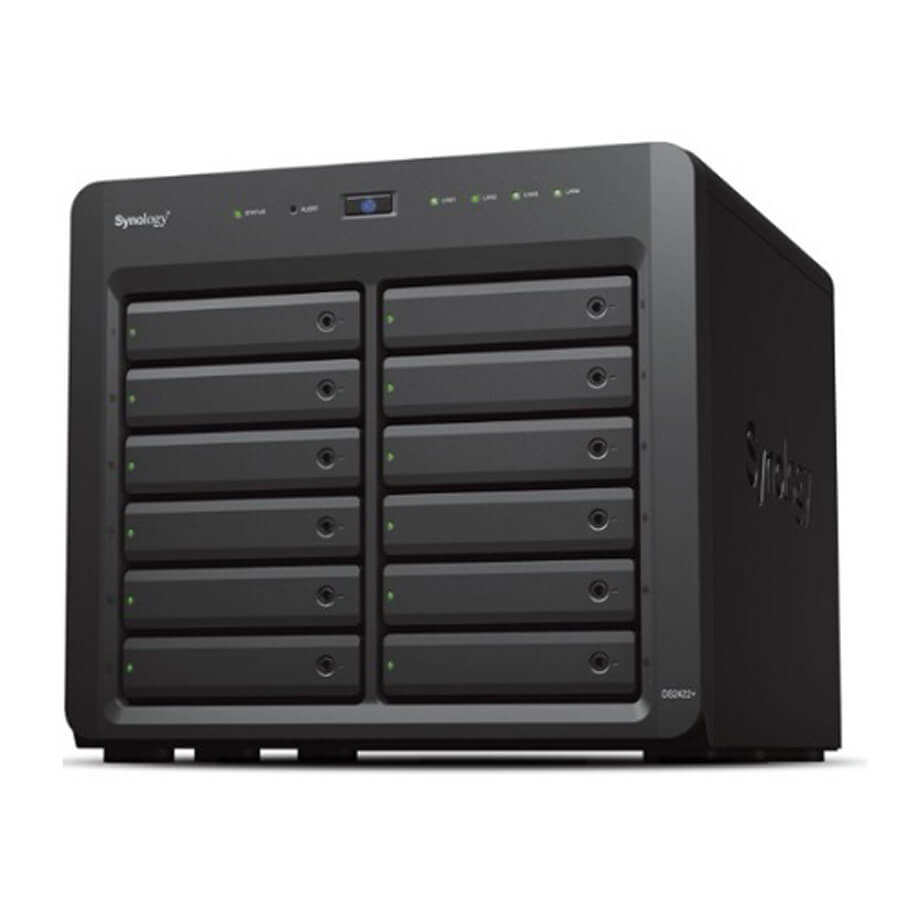

Thiết bị lưu trữ SYNOLOGY DS2422+
- Synology DiskStation DS2422+ is a compact 12-bay desktop NAS that takes file sharing and management to the next level. The unit can be scaled to 24 drive bays and excels at serving large data sets in multiuser environments. It comes with powerful file management, surveillance, and backup capabilities, and can serve as high-quality video and VM storage. With support for up to 32GB of memory, NVMe SSD cache, and 25GbE network cards, the DS2422+ is ready for large-scale business applications.
- Accelerated Performance: Delivers up to 2,201 MB/s read and 1,383 MB/s sequential write performance.
- Easy Capacity Expansion: Double storage capacity to 24 drive bays2 with one 12-bay DX1222 expansion unit.
- Supports Demanding Applications: Leverage up to 32GB memory, 10/25GbE networking, 3 or NVMe SSD Cache4 to boost read and write speed.
Đặc tính kỹ thuật
| Hardware | |
| CPU | AMD Ryzen™ V1500B quad-core 2.2 GHz |
| Hardware encryption engine | Yes (AES-NI) |
| Memory | 4 GB DDR4 ECC SODIMM (expandable up to 32 GB with 2 x D4ES01-16G) |
| Compatible drive types | • 12 x 3.5 inch or 2.5 inch SATA HDD/SSD (drives not included) • Only drives listed on the compatibility list can be used to create storage pools |
| Hot swappable drives | Yes |
| External ports | • 2 x USB 3.2 Gen 1 ports • 1 x Expansion port (Mini-SAS HD) |
| Form factor | Desktop |
| Size (HxWxD) | 270 x 300 x 340 mm |
| Weight | 9.5 kg |
| LAN ports | 4 x 1GbE RJ-45 |
| Wake on LAN/WAN | Yes |
| PCIe expansion | • 1 x 8 width slot, Gen 3.0 x4 lanes • Supports network interface cards,3 M.2 NVMe adapter cards for SSD cache,4 and combination cards |
| Scheduled power on/of | Yes |
| System fans | 2 x (120 x 120 x 25 mm) |
| AC input power voltage | 100V to 240 VAC |
| Power frequency | 50/60 Hz, single phase |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | 20°C to 60°C (-5°F to 140°F) |
| Relative humidity | 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| General DSM Specifications | |
| Networking protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP) |
| File systems | • Internal: Btrfs, ext4 • External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT |
| Supported RAID types | Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10. |
| Storage management | • Maximum single volume size: 108 TB • Maximum system snapshots: 65,536 • Maximum internal volumes: 64 |
| SSD cache | • Read/write cache support • M.2 NVMe or 2.5 inch SATA SSD support |
| File sharing capabilities | • Maximum local user accounts: 2,048 • Maximum local groups: 256 • Maximum shared folders: 512 • Maximum concurrent SMB/NFS/AFP/FTP connections: 1,000 |
| Privileges | Windows® Access Control List (ACL) and application privileges. |
| Directory services | Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/AFP/FTP/File Station using their existing credentials. |
| Virtualization | VMware vSphere®, Microsoft Hyper-V®, Citrix®, and OpenStack® |
| Security | Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite). |
| Supported browsers | Chrome®, Firefox®, Edge®, Internet Explorer® 10 and later, Safari® 10 and later, Safari® (iOS 10 and later), Chrome® (Android™ 6.0 and later) on tablets. |
- Bảo hành: 24 tháng.
