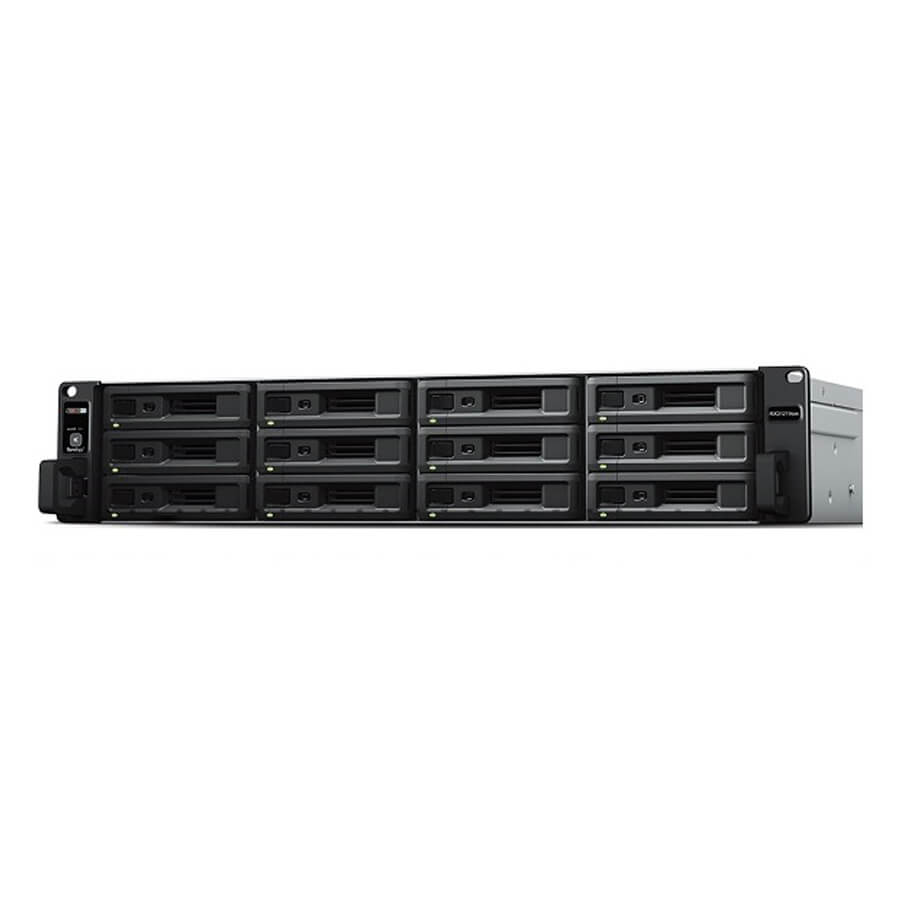

Expansion Unit SYNOLOGY RXD1219sas
- Synology RXD1219sas is a 2U expansion unit, providing an easy storage space upgrade solution for your Synology servers. It can add up to 12 additional 2.5 inch/ 3.5 inch SAS drive bays on the fly when connected directly with a mini-SAS HD cable.
- Plug-and-play design for seamless storage space upgrade.
- 12 additional SAS interface drive bays available for online volume expansion on the fly.
- Mini-SAS HD connectivity enabling high performance data transmission.
- Redundant power supplies that maximize service uptime.
- Fast rack fixing lock support with Synology Rail Kit RKS1317.
Đặc tính kỹ thuật
| Compatible drive type | 12 x 3.5/2.5 inch SAS HDD/SSD (drives not included) |
| External ports (per module) | • 1 x SAS IN • 1 x SAS OUT |
| Size (HxWxD) | • 88 x 430.5 x 692 mm • 88 x 482 x 724 mm (with server ears) • 2U |
| Weight | 18.2 kg |
| System fan (per module) | 2 (60 x 60 x 51 mm) |
| AC input power voltage | 100 V to 240 V AC |
| Power frequency | 50/60 Hz, single phase |
| Power recovery | Synchronized with connected Synology server |
| Operating temperature | 0°C to 35°C (32°F to 95°F) |
| Storage temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative humidity | 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
| Environment safety | RoHS compliant |
- Bảo hành: 60 tháng.
