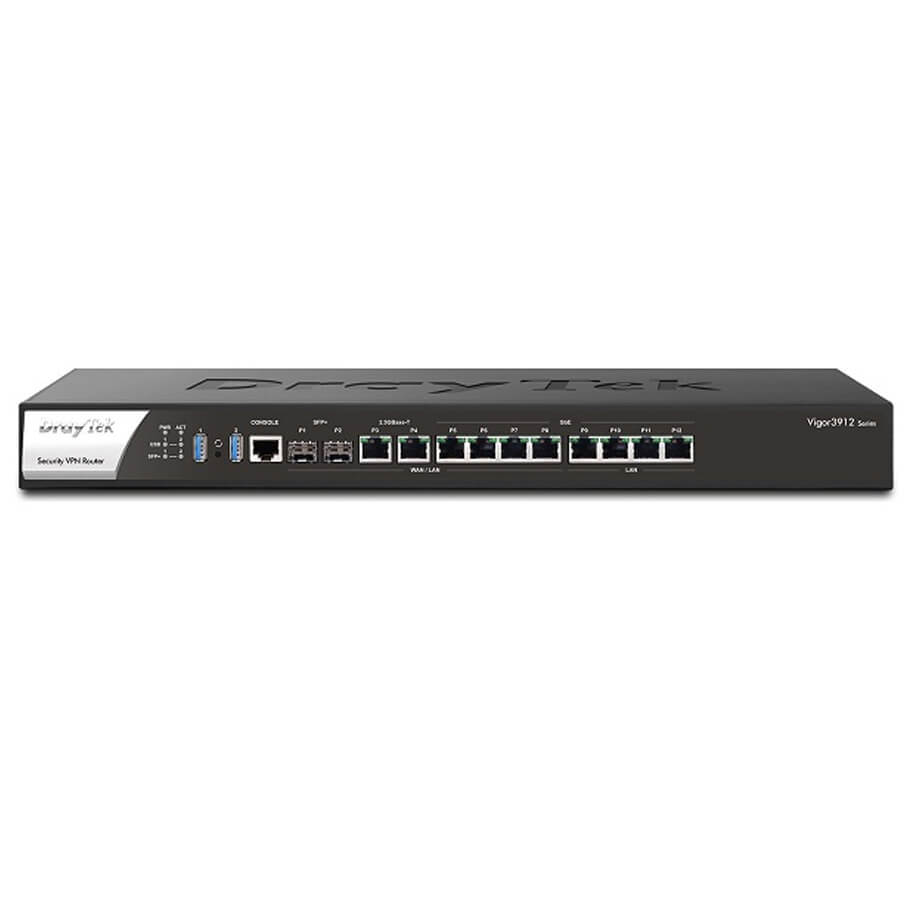

High Performance 10G Router DrayTek Vigor3912
- Hỗ trợ 2 cổng 10 Gigabit WAN/LAN slot SFP+ (cho phép chuyển đổi WAN/LAN linh hoạt).
- Hỗ trợ 2 cổng 2.5 Gigabit WAN/LAN, RJ45 (cho phép chuyển đổi WAN/LAN linh hoạt).
- Hỗ trợ 4 cổng Gigabit LAN/WAN, RJ45 (P5-P8).
- Hỗ trợ 4 cổng Gigabit LAN (Ethernet 10/100/1000Mbps), RJ45 (P9 ~ P12).
- Hỗ trợ 2 cổng USB và 1 cổng RJ45 Console.
- CPU 2GHz Qual-Core + 8GB DDR4.
- Hỗ trợ Server Load balancing (inboud load balacing).
- Hỗ trợ chia 100 lớp mạng khác nhau (801.2q VLAN Tag), DMZ LAN, IP routed LAN.
- VPN server 500 kênh (OpenVPN, IPSec, IKEv1, IKEv2, XAuth), 200 kênh VPN SSL....), VPN Trunk (Load Balancing, Failover).
- Web Portal: Hiện trang quảng cáo khi khách hàng kết nối internet.
- Tích hợp Wi-Fi Marketing từ các nhà phát triển hàng đầu như Meganet, VNWIFI, Nextify...
- Kiểm soát và quản lý băng thông tối ưu đường truyền Internet, chế độ High Availability.
- Firewall mạnh mẽ, linh hoạt (IP-based Firewall Policy, DoS Attack Defense, URL/Web Content Filter...).
- DrayDDNS tên miền động miễn phí của DrayTek.
- Quản lý tập trung cho 50 Access Point DrayTek (APM), 30 Switch (SWM)
- Quản lý tập trung Vigor3912 qua Cloud DrayTek Free https://cloud.draytek.vn.
Thông số kỹ thuật
| Interface | |
| WAN/LAN Switchable Port | 2 x 10 Gigabit SFP+ 2 x 2.5 GbE RJ-45 4 x GbE RJ-45 |
| Fixed LAN Port | 4 x GbE RJ-45 |
| Console Port | 1 x RJ-45 |
| USB Port | 2 x USB3.0 |
| LAN Management | |
| LAN Subnet | 100 |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 100 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | Yes |
| IP Pool Count | 4000 |
| PPPoE Server | Yes |
| Port Mirroring | Yes |
| Local DNS Server | Yes |
| Conditional DNS Forwarding | Yes |
| Hotspot Web Portal | 4 |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
| Networking | |
| Routing | IPv4 Static Route, IPv6 Static Route, Policy Route, Inter-VLAN Route, Fast Routing, RIP v1/v2, OSPFv2, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| Smart Action | Yes |
| High Availability | Yes |
| DNS Security (DNSSEC) | Yes |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | Yes |
| Bandwidth Management | |
| IP-based Bandwidth Limit | Yes |
| IP-based Session Limit | Yes |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type |
| VoIP Prioritization | Yes |
| APP QoS | Yes |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, Port Knocking, Fast NAT DMZ Host, UPnP, Server Load Balance |
| ALG | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | APP, URL Keyword, DNS Keyword, Web Features, Web Category* (*subscription required) |
| DoS Attack Defense | Yes |
| Spoofing Defense | Yes |
| Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | Yes |
| Multi-VLAN/PVC | Yes |
| Failover | Yes |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | PPP, Ping, ARP |
| WAN Data Budget | Yes |
| Dynamic DNS | Yes |
| DrayDDNS | Yes |
| VPN | |
| LAN-to-LAN | Yes |
| Teleworker-to-LAN | Yes |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN, Wireguard |
| Max. VPN Tunnels | 500 |
| Max. OpenVPN + SSL VPN | 200 |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP, TOTP |
| IKE Authentication | Pre-Shared Key, X.509, XAuth, EAP |
| IPsec Authentication | MD5, SHA-1, SHA-256, SHA-512 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | Yes |
| NAT-Traversal (NAT-T) | Yes |
| VPN from LAN | Yes |
| VPN Isolation | Yes |
| VPN Packet Capture | Yes |
| VPN 2FA Authentication for AD/LDAP | Yes |
| VPN Matcher | Yes |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config Backup/Restore | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Syslog | |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| VigorACS Management | |
| AP Management (APM) | 50 |
| Switch Management (SWM) | 30 |
- Bảo hành: 24 tháng.
