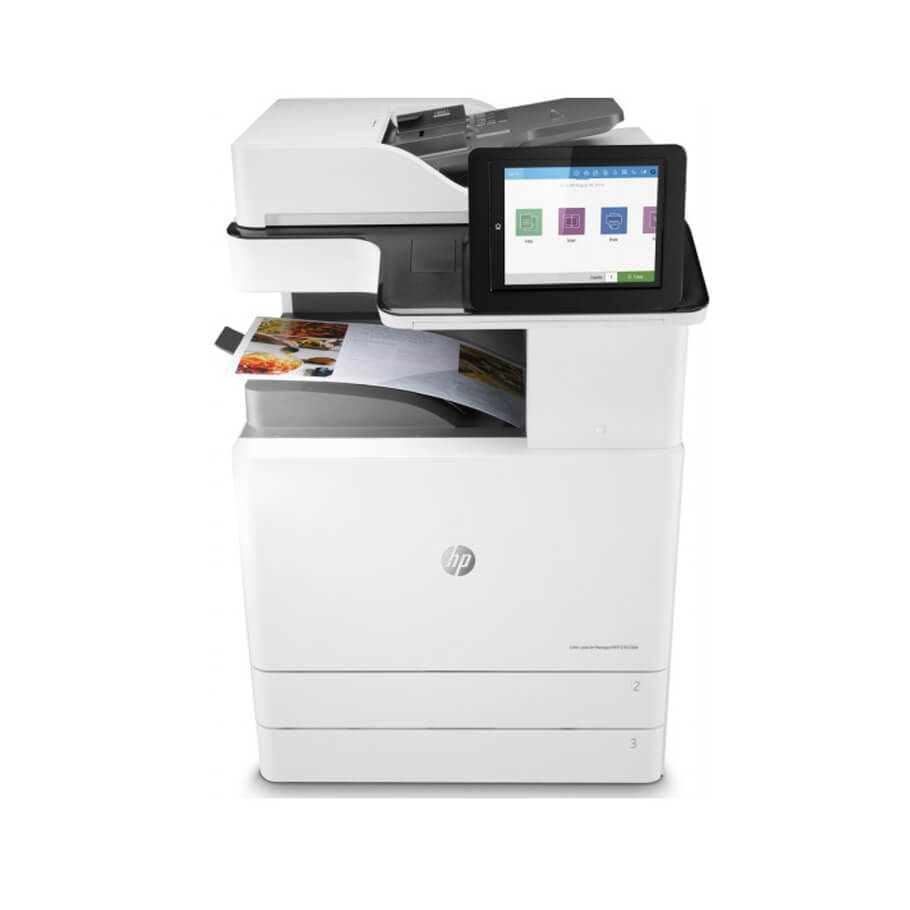

Máy in Laser màu đa chức năng HP Color LaserJet Managed MFP E78228dn
- HP Color LaserJet Managed MFP E78228dn là dòng máy in Laser màu kỹ thuật số đa chức năng: In, Copy, Scan.
- Kiểu dáng: Để bàn.
- Màn hình: Màn hình cảm ứng 8-inch.
- Tốc độ in/copy trắng đen: 28 trang/phút (A4).
- Tốc độ in/copy màu: 28 trang/phút (A4).
- Bộ vi xử lý: 1.2GHz.
- Bộ nhớ: 4.25GB.
- Ổ cứng: 2 x 16GB.
- Kết nối: 2 Hi-Speed USB 2.0 Host; 1 Hi-Speed USB 2.0 Device; 1 Gigabit Ethernet 10/100/1000T network; 1 Hardware Integration Pocket.
- Khay chứa giấy: 2 x 520 tờ, khay tay 100 tờ.
- Khay chứa giấy ra: 500 tờ.
- Định lượng giấy: Tray 1: 60 to 176 g/m²; Tray 2, 3: 60 to 220 g/m².
- Định lượng Mực: Màu đen: 25.000 bản; Màu lục/màu vàng/ màu đỏ: 20.000 bản.
- Định lượng Drum: 135.000 bản.
- Số lượng bản in khuyến nghị: 20.000 bản/tháng, Tối đa: 80.000 bản/tháng.
- Hỗ trợ chức năng tự động đảo mặt bản sao/in hai mặt (Duplex).
- Hỗ trợ chức năng tự động đảo mặt bản gôc (ADF: 100 tờ).
- Tự động chia bộ và sắp xếp bản sao điện tử.
- Tự động chọn khổ giấy, khay giấy.
- Hệ thống tái sử dụng mực thải.
- Hệ thống lấy giấy hiệu suất cao, giảm tối đa vấn đề kẹt giấy.
- Nguồn điện sử dụng: 220 – 240V (±10%), 50/60 Hz (±3%).
- Điện năng tiêu thụ: 665 watts (printing), 34 watts (ready), 9.5 watts (sleep), 0.6 watts (Final sleep), 0.01 watts (off).
- Kích thước (W x D X H): 566 x 725 x 870 mm.
- Trọng lượng: 82.9kg.
Đặc tính kỹ thuật
| Model | HP Color LaserJet Managed MFP E78228dn |
| Functions | Print, copy, scan, fax (optional) |
| General | |
| Control panel | 22.8 cm (9.0-in) functional touchscreen with 20.3 cm (8.0 in) Colour Graphics Display (CGD) with touchscreen; Tilting (adjustable angle) display; Illuminated Home button (for quick return to the Home menu); USB High-speed 2.0 port; Hardware Integration Pocket |
| Processor speed | 1.2 GHz |
| Hard disk | Standard two 16 GB encrypted eMMCs: one is located on formatter board for stored jobs and solutions, another one is located on ECB for copy/scan function; Optional HP High-Performance Secure Hard Disk; AES 256 hardware encryption or greater; Secure erase capabilities (Secure File Erase-Temporary Job Files, Secure Erase-Job Data, Secure ATA Erase Disk); Optional 500 GB Hard Disk (located on ECB for copy/scan functions). ECB: Engine Controller Board |
| Memory | Standard: 4.25 GB (Formatter 1.25 GB + ECB 3 GB); Maximum: 6.25 GB (standard memory + optional 2 GB) |
| Compatible operating systems | Windows Server 2008 R2 64-bit, Windows Server 2008 R2 64-bit (SP1), Windows Server 2012 64-bit, Windows Server 2012 R2 64-bit, Windows Server 2016 64-bit, Windows Server 2019 64-bit, Citrix Server 6.5, Citrix XenApp & XenDesktop 7.6, Novell iPrint server |
| Minimum system requirements | Windows: 2 GB available hard disk space, Internet connection, or USB port, Internet browser. Mac: 2 GB available hard disk space, Internet connection, or USB port, Internet browser |
| Security management | Management security: SNMPv3, SSL/TLS, WPA2-Enterprise, 802.1X authentication (EAP- PEAP, EAP-TLS), IPP over TLS, IPsec/Firewall with Certificate, Pre-Shared Key Authentication, and Kerberos uthentication; Support for WJA-10 IPsec Configuration using IPsec Plug in |
| Printer management | HP Printer Assistant, HP Device Toolbox, HP Web JetAdmin Software, HP JetAdvantage Security Manager, HP SNMP Proxy Agent, HP WS Pro Proxy Agent, Printer Administrator Resource Kit for HP Universal Print Driver (Driver Configuration Utility - Driver Deployment Utility - Managed Printing Administrator) |
| Dimensions (W x D x H) | 566 x 725 x 870 mm |
| Weight | 82.9 kg |
| Operating environment | Temperature: 15 to 30°C Humidity: 20 to 80% RH |
| Storage conditions | Temperature: -10 to 40°C |
| Power | Requirements: Input voltage: 220 to 240Vac (+/- 10%), 50/60 Hz (+/- 3%); Consumption: 665 watts (printing), 34 watts (ready), 9.5 watts (sleep), 0.6 watts (Final sleep), 0.01 watts (off); Typical Electricity Consumption (TEC): Blue Angel: 1.573 (kWh/Week); Energy Star: 0.386 (kWh/Week); Power supply type: Internal (Built-in) power supply; |
| Print technology | Laser |
| Print speed | Black (A4, normal): Up to 28 ppm; Colour (A4, normal): Up to 28 ppm; Black (A4, duplex): Up to 20 ipm; Colour (A4, duplex): Up to 21 ipm; |
| First page out | Black (A4, ready): As fast as 8.9 sec; Colour (A4, ready): As fast as 11.0 sec; Black (A4, sleep): As fast as 25 sec; Colour (A4, sleep): As fast as 25 sec; |
| Print resolution | Black (best): Up to 1200 x 1200 dpi reduced speed; Colour (best): Up to 1200 x 1200 dpi reduced speed; Technology: Normal (600 x 600 4-bit); Best (1200 x 1200 1-bit); |
| Monthly duty cycle | Up to 80,000 pages A4; Recommended monthly page volume: Up to 20,000 |
| Printer smart software features | Quality colour printing for a great value is a smart choice for any business. Produce premium, professional-quality colour documents at a competitive low cost with an HP Color LaserJet MFP built to make your work - and your business- look its best. Annoying interruptions and complex maintenance can slow down printing, and ultimately, the pace of business. Avoid pauses in productivity with an HP LaserJet MFP designed for maximum uptime, so you can count on reliable, results day in and day out. Only HP Enterprise printers repair themselves from attacks in real time, delivering built-in security to help keep your network safe. Automatically monitor threats, detect intrusions, and validate operating software with security offered only by HP. Accelerate workflow, improve accuracy, and easily connect people throughout your organization |
| Standard print languages | HP PCL 6, HP Postscript level 3 emulation, PDF (v 1.7), AirPrint™ compatible |
| Fonts and typefaces | 84 scalable TrueType fonts |
| Print area | Print margins Top: 4.23 mm, Bottom: 4.23 mm, Left: 4.23 mm, Right: 4.23 mm; Maximum print area : 288.5 x 423.6 mm |
| Duplex printing | Automatic (standard) |
| Copy | |
| Copy speed | Black (A4): Up to 28 cpm; Colour (A4): Up to 28 cpm |
| Copier specifications | Two-sided copying; Scalability; Image adjustments (darkness, contrast, background cleanup, sharpness); Optimised text/picture (text, mixed, printed picture, photograph); N-Up; N or Z-ordering; Content orientation; Collation; ID Scan; Job build; Job Storage; Watermark; Stamps; Book mode scans; Erase edges; Automatically detect colour/monochrome; Image Preview; Maximum number of copies: Up to 9999 copies; Reduce/Enlarge: 25 to 400% |
| Scan | |
| Scan speed | Normal (A4): Up to 46 ipm ;Duplex (A4): Up to 19 ipm |
| Scan file format | Digital Send: PDF, Hi-Compression PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht) |
| Scanner specifications | Scanner type Flatbed, ADF; Scan technology: Platen Scanner (CCD); Scan input modes: Front panel applications: Copy; E-mail; Fax; Save to Network Folder; Save to USB; Save to Device Memory; Open Extensibility Platform (OXP) applications; Twain version: Version 2.1; Duplex ADF scanning: Yes; Scan size maximum (flatbed, ADF): 297 x 432 mm; Optical scan resolution: UP to 600 x 600 dpi |
| Scanner advanced features | Scan-to-E-mail; Scan-to-network folder (stand alone solution); Scan to Cloud; Scan to USB; Scan-to-SharePoint |
| Scannable area | Maximum media size (flatbed): 297 x 432 mm ;Minimum media size (ADF): 148 x 210 mm Maximum media size (ADF): 297 x 432 mm |
| Bit depth/ Grey scale levels | 24-bit / 256 |
| Digital sending | Standard: Scan to E-mail; Save-to-Network Folder; Save-to-USB drive; Send to Sharepoint; Send to FTP; Send to sFTP; Send to LAN Fax; Send to Internet Fax; Local Address Book; SMTP over SSL; Blank Page Removal; Edge Erase; Auto Colour Sense; Compact PDF; Auto Straighten ; Optional: Scan to Job storage; Send to LAN Fax; Send to Internet Fax |
| Connectivity | |
| Standard | 2 Hi-Speed USB 2.0 Host; 1 Hi-Speed USB 2.0 Device; 1 Gigabit Ethernet 10/100/1000T network; 1 Hardware Integration Pocket |
| Optional | HP Jetdirect 2900nw Print Server J8031A; HP JetDirect 3100w BLE/NFC/Wireless Accessory 3JN69A |
| Mobile printing capability | Apple AirPrint™; Google Cloud Print™; HP ePrint; Mopria™ Certified; PrinterOn Print |
| Supported network protocols | IPv4/IPv6: Apple Bonjour Compatible (Mac OS 10.2.4 or higher), SNMPv1/v2c/v3, HTTP, HTTPS, FTP, TFTP, Port 9100, LPD, WS Discovery, IPP, Secure-IPP, IPsec/Firewall; IPv6: DHCPv6, MLDv1, ICMPv6; IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode, WS Print; Other: NetWare NDS, Bindery, NDPS, ePrint; Google Cloud Print 2.0 |
| Network capabilities | Standard (built-in Gigabit 10/100/1000T Ethernet) |
| Media handling | |
| Number of paper trays | Standard: 3; Maximum: 5 |
| Media types | Plain, HP EcoEFICIENT, HP Matte 90g, Light 60-74g, Bond, Recycled, HP Matte 105g, HP Matte 120g, Mid-Weight 96-110g, Heavy 111-130g, HP Matte 150g, Extra Heavy 131-175g, HP Matte 200g, Cardstock 176-220g, Labels, Envelope, Preprinted, Prepunched, Coloured |
| Media size | Custom (metric): Tray 1: 98 x 148 mm to 297 x 432 mm; Tray 2: 139.7 x 210 mm to 297 x 364 mm; Tray 3: 139.7 x 210 mm to 297 x 432 mm Supported (metric): Tray 1: A3, A4, A4R, A5, A5R, A6, Ra4, B4 (JIS), B5 (JIS), B6 (JIS), Oficio, 8K, 16k, Postcard, Dpostcard (JIS), Envelope B5, Envelop C5, Envelope C6, Envelope DL; Tray 2: A4, A4R, A5, Ra4, B4 (JIS), B5 (JIS), Oficio, 16k; Tray 3: A3, A4, A4R, A5, Ra3, Ra4, B4 (JIS), B5 (JIS), Oficio, 8K, 16k ADF: Oficio, Executive, Statement, Ledger, A3, A4, A4R, A5, B4, B5, 16K, 148 x 148 mm to 297 x 432 mm |
| Media handling | Standard input: 100 sheet multi-purpose tray, 2 x 520 sheet input tray, 100 sheet ADF Standard output: 500 sheet face-down output bin Optional input: Optional 2 x 520 sheet input tray ADF: Standard, 100 sheets |
| Media weight | Tray 1: 60 to 176 g/m²; Tray 2, 3: 60 to 220 g/m² |
| Input capacity | Tray 1: Sheets: 100 (75 gsm); envelopes: 10 Tray 2: Up to 520 sheets (75 gsm) Tray 3: Up to 520 sheets (75 gsm) Maximum: Up to 2,180 sheets (75 gsm); MP Tray: up to 100 sheets; Tray 2, 3, 4 and 5: up to 520 sheets ADF: Standard, 100 sheets |
| Output capacity | Standard: Up to 500 sheets Envelopes: Up to 40 envelopes Maximum: Up to 550 sheets |
- Bảo hành: 12 tháng.
