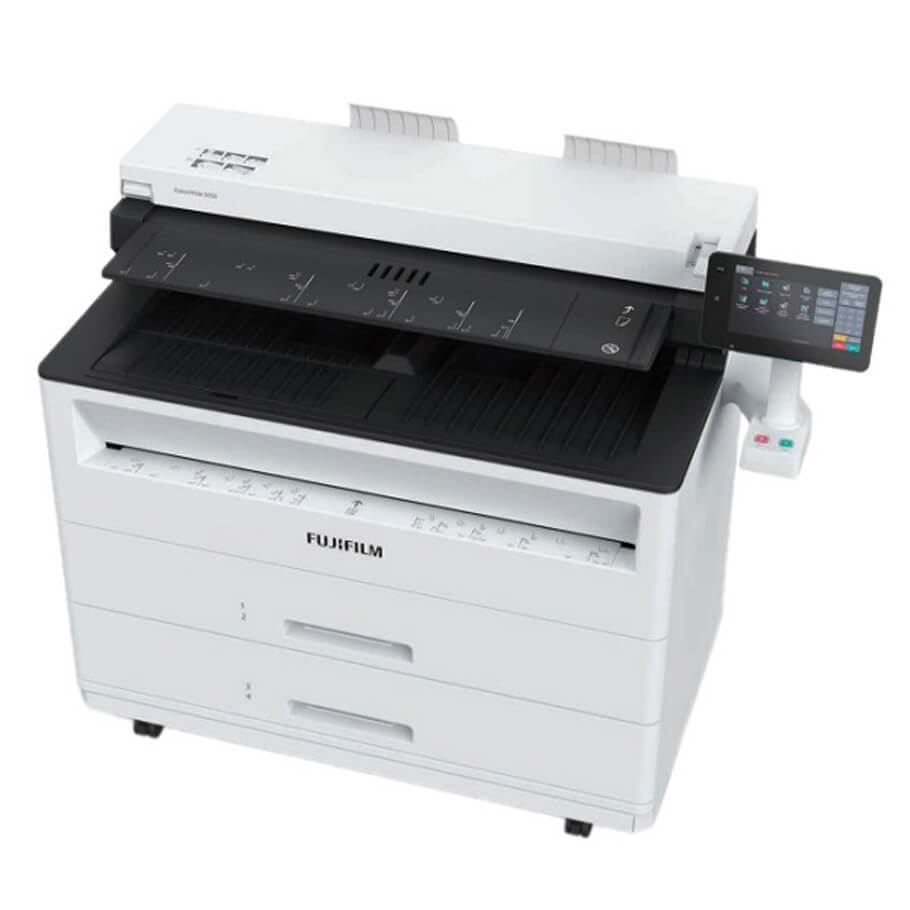

Máy in Laser A0 FUJIFILM Apeoswide 3030MF
- Máy in Laser A0 đa chức năng: In, sao chụp, quét trắng đen.
- Tốc độ in/sao chép: 3.2 tờ/phút (A0), 7 tờ/phút (A1 Landxcape).
- Dung lượng bộ nhớ: 4GB (tối đa: 4GB).
- Dung lượng thiết bị lưu trữ: 128GB.
- Độ phân giải in: 1200 x 1200 dpi.
- In liên tục: 99 tờ.
- Độ phân giải quét: 600 x 600 dpi.
- Tốc độ quét (B/W/ Grayscale): 203.22 mm/giây.
- Kết nối: thernet 1000BASE-T/100 BASE-TX/10BASE-T 2 hệ thống.
Thông số kỹ thuật
| Basic Specifications | |
| Memory capacity | 4 GB (Max: 4 GB) |
| Storage Device Capacity | 128 GB or larger |
| Printing Resolution | 1200 x 1200 dpi |
| Continuous Print Speed | A0: Portrait: 3.2 sheets/minute |
| A1: Landscape: 7.0 sheets/minute Portrait: 5.0 sheets/minute |
|
| A2: Landscape: 9.0 sheets/minute Portrait: 7.0 sheets/minute |
|
| A3: Landscape: 10 sheets/minute Portrait: 9.0 sheets/minute |
|
| A4: Landscape: 12 sheets/minute Portrait: 10 sheets/minute |
|
| Paper Tray Capacity | [2-Roll Model (MF)] |
| Roll paper feed 1-tray x 2, Manual Feed (Single-sheet feed) | |
| Paper Size | Roll paper feed [Roll paper] - A0, A1, A2, A3, JIS B1, JIS B2, JIS B3, ISO B1, ISO B2, ISO B3, 880 mm / 860 mm, 625 mm / 620 mm, 440 mm / 435 mm, 310 mm, 36 inch, 34 inch, 30 inch, 24 inch, 22 inch, 18 inch 17 inch, 15 inch, 12 inch, 11 inch - Width: 279.4 to 914.4 mm - Outside diameter of the roll: 175 mm or less |
| Manual Feed [Cut Sheet] - A0, A1, A2, A3, A4, JIS B1, JIS B2, JIS B3, JIS B4, ISO B1, ISO B2, ISO B3, ISO B4, 880 mm / 860 mm, 625 mm / 620 mm, 440 mm / 435 mm, 36 inch, 34 inch, 30 inch, 24 inch, 22 inch, 18 inch, 17 inch, 15 inch, 12 inch, 11 inch, 9 inch, 8.5 inch - Width: 210 to 914.4 mm - Length: 210 to 2000 mm |
|
| Paper cutting system | Standard size cut, synchronised cut, variable length cut |
| Paper Type / Paper Weight | Plain paper: 64 to 110 gsm, Tracing paper: 90 to 112 gsm, Film: 75 to 100μm |
| Image loss width | Roll/Cut paper: Lead Edge 5 mm, Trail Edge 5 mm, Right & Left Edges 3 mm (Outside diameter of the roll (remaining) 100 mm or larger) |
| Warm-up Time | 180 seconds or less (22 degrees Celsius room temperature) |
| Power Supply | AC220-240 V - 10 % + 6 %, 10 A, 50/60 Hz common |
| Maximum Power Consumption | 2.4 kW |
| Dimensions | W 1432 x D 729 x H 1180 mm |
| Weight | 227 kg |
| Copy Function | |
| Original Feed System | Original transfer type |
| Original Size | Maximum width: 914.4 mm, minimum width: 182 mm |
| Maximum length: 15000 mm, minimum length: 210 mm | |
| Original Thickness | When ejecting frontward: 0.05 to 0.2 mm |
| When ejecting rearward: 0.05 to 1.0 mm | |
| Original Type | Text & Line, Text/Photo, Printed Original, Photograph, Blueprint, Transparent, Uneven-Toned Background |
| Scan Resolution | 600 x 600 dpi |
| Copy Size | Width: 210 to 914.4 mm, Length: 210 to 15000 mm (plain paper) Width: 210 to 914.4 mm, Length: 210 to 2500 mm (tracing paper/film) |
| Continuous Copy | 99 sheets |
| First Copy Output Time | 25.0 sec. (with A0 size original, upper roll 1, When ejecting frontward) |
| 24.0 sec. (with A0 size original, upper roll 1, When ejecting rearward) | |
| Print Function | |
| Print Size | The same as copy size supported in copy function |
| Continuous Print Pages | 99 sheets |
| First Print Output Time | 22 sec. (with A0 size original, 1.28 MB data, upper roll 1, When ejecting frontward) |
| 21 sec. (with A0 size original, 1.28 MB data, upper roll 1, When ejecting rearward) | |
| Page Description Language | Standard: Adobe® PostScript® 3TM |
| Network Protocol | TCP/IP (IPv4 / IPv6, LPR, FTP) |
| Supported Operating System | Standard: Windows 10 (64bit/32bit) Windows 8.1 (64bit/32bit) Windows Server 2019 (64bit) Windows Server 2016 (64bit) Windows Server 2012 R2 (64bit) Windows Server 2012 (64bit) |
| Interface | Ethernet 1000BASE-T / 100 BASE-TX / 10BASE-T 2 systems |
| Scan Function | |
| Type (Standard) | Black & White Scanner |
| Scan Resolution | 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 150 x 150 dpi |
| Scan Mode | Text & Line, Text/Photo, Printed Original, Photograph, Blueprint, Transparent, Uneven-Toned Background |
| Scan Speed | B/W / Grayscale - Very high speed: 203.2 mm/sec (Resolution 300 dpi or less) - High speed: 101.6 mm/sec - Low speed: 50.8 mm/sec |
| Full Colour: - Mid speed: 67.6 mm/sec (Resolution 300 dpi or less) - Very low speed: 33.8 mm/sec |
|
| Interface | Ethernet 1000BASE-T / 100 BASE-TX / 10BASE-T |
- Bảo hành: 12 tháng.
