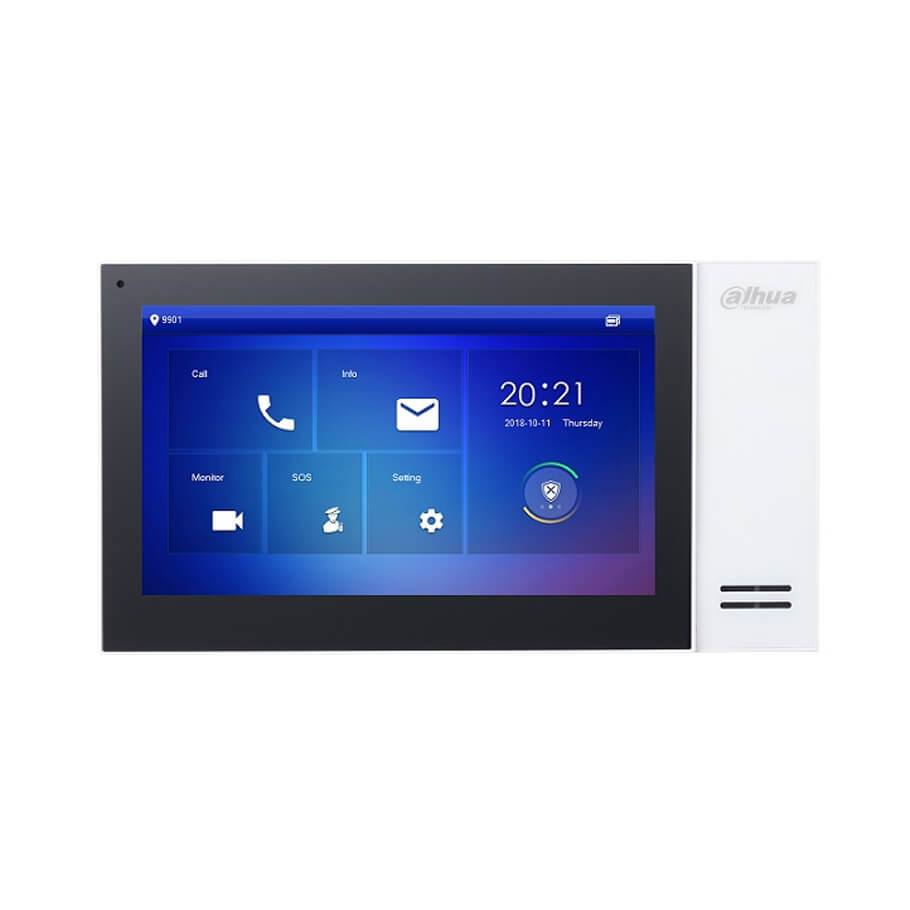

Màn hình màu chuông cửa DAHUA DHI-VTH2421FW-P
- Màn hình màu cảm ứng: 7-inch TFT LCD, 1024 x 600.
- Hỗ trợ kết nối với hệ thống camera trong nhà.
- Đóng mở khoá cửa qua màn hình đàm thoại hoặc qua điện thoại.
- Hỗ trợ cuộc gọi khẩn cấp.
- Để lại video hoặc tin nhắn văn bản.
- Hỗ trợ nhận và xem thông báo qua trung tâm.
- Các tính năng kết nối đến các cảm biến báo động.
- Tự động dò tìm và kết nối các thiết bị với nhau.
- Audio đàm thoại 2 chiều.
- Hỗ trợ báo động khẩn cấp.
- Tích hợp 1 cổng mạng 10/100, SD card.
- Nguồn cấp POE
- Kích thước: 221.2×154.3×25.8 mm.
- Trọng lượng: 0.8Kg.
Thông số kỹ thuật
| Model | DHI-VTH2421FW-P |
| Main Processor | High performace embedded processor |
| Operating System | Embedded LINUX OS |
| Screen Type | Capacitive screen |
| Display | 7-inch TFT screen |
| Resolution | 1024 × 600 |
| Video Compression | H.264 |
| Audio Compression | G.711A/G.711U/PCM |
| Audio Input | 1 channel all-direction microphone |
| Audio Output | Built-in 1.5W loudspeaker |
| Audio Mode | Support dual-way bidirectional talk |
| Audio Enhancement | Support echo cancellation/DNR |
| Audio Bit Rate | 16 kbps |
| Communication Mode | Full digital |
| Information Release | Support to receive and view notifications issued by center |
| Leave Videos or Text Messages | Support |
| DND Mode | Support to set DND period |
| Sub-station Quantity | 9 |
| Alarm Input | 6 channel (switch quantity) |
| Alarm Output | 1 channel |
| Network | 1 RJ-45 |
| SOS Alarm | Support |
| Casing | PC+ABS |
| Appearance Color | Appearance Color |
| Power Supply | Standard PoE DC12V/ 1A |
| Installation | Wall mount |
| Accessories | Default bracket Default alarm cable |
| Dimensions | 119.6 × 221.5 × 21.5 mm |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%RH-95%RH |
| Power Consumption | Standby≤4W, work≤6W |
| Gross Weight | 0.35 Kg |
| Power supply mode | PoE |
| Storage | Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G |
