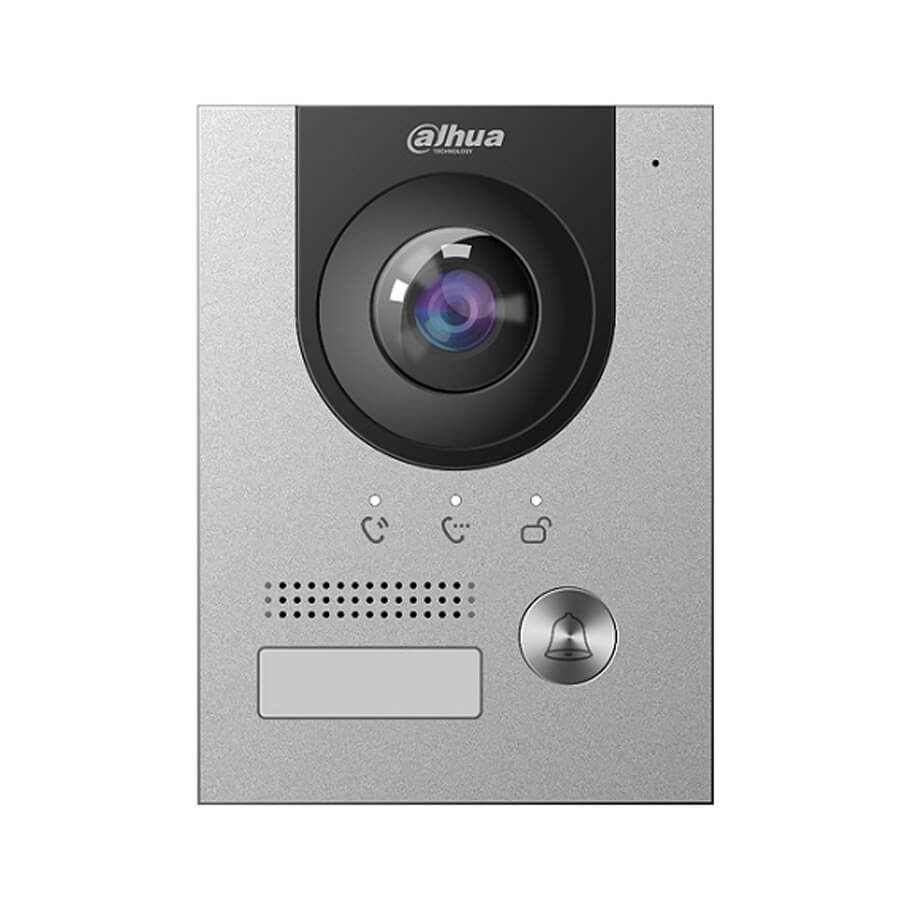

Camera chuông cửa IP DAHUA DHI-VTO2201F-P
- Nút nhấn camera chuông cửa độ phân giải 2MP CMOS.
- Góc quan sát: 138.6° (H) / 79.6°(V).
- Hỗ trợ quan sát ban đêm.
- Chuẩn nén: H265.
- Kết nối tới các smartphone qua phần mềm.
- Tích hợp mic và speaker, hỗ trợ đàm thoại 2 chiều.
- Hỗ trợ mở qua cửa từ xa.
- Chống ngược sáng thực 120dB.
- Chất liệu kim loại.
- Tiêu chuẩn bảo vệ: IP65, IK07.
- Nguồn điện: DC12V-24V/ PoE.
- Kích thước: 130 × 96 × 28.5 mm.
Đặc tính kỹ thuật
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocol | SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| Basic | |
| Camera | 1/2.9' 2MP CMOS Low Illumination HD Colorful Camera |
| Field of View | Horizontal: 138.6°; vertical: 79.6; diagonal:159° |
| Focal Length | 2.0 mm |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.265 |
| Video Resolution | 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps) |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 256 Kbps to 8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto (ICR) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | 2-way voice communication |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Status Indicator Light | 3 |
| Port | |
| RS-485 Port | 1 |
| Alarm Output | 1 |
| Power Output | 1-ch 12 VDC 100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | One RJ45 10M/100M network port |
| Storage | Micro SD card (up to 64GB) |
| General | |
| Appearance color | Silver |
| Power Supply | DC 12V-24V 1A; Standard PoE |
| Power Adapter | Optional |
| Installation | Flush/surface mount |
| Accessory | Flush/surface mount |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12' × 3.78' × 1.12') |
| Protection | IK07; IP65 |
| Operating Temperature | –30°C to +60°C (–22°F to 140°F) |
| Operating Humidity | 10%–90% (RH, non-condensing) |
| Operating Altitude | 0 m–3000 m |
| Power Consumption | ≤ 6W |
| Net Weight | 0.35 kg (0.77 lb) |
