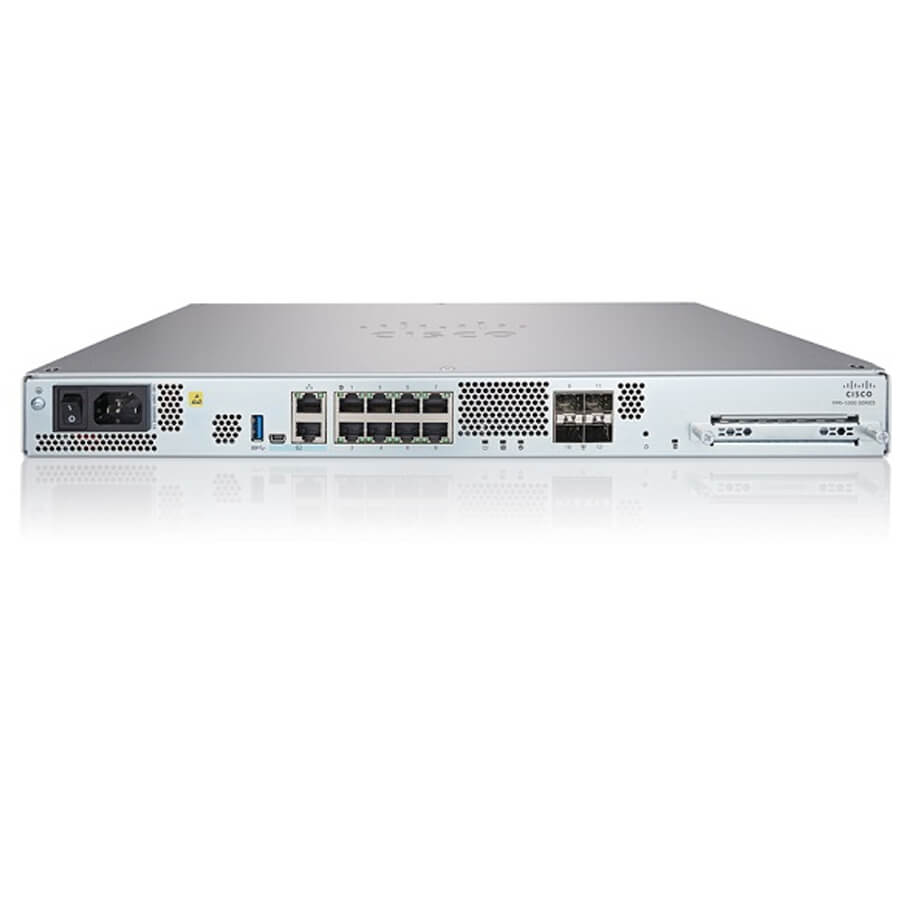

Firepower CISCO FPR1140-NGFW-K9
- Network interfaces: 8 x 1000BASE-T, 4 x SFP.
- Management interfaces: 1x 1000BASE-T, 1x Serial console (RJ-45).
- USB: 1 x USB 3.0 Type-A (500mA).
- Storage: 1 x 200GB.
- Power supply configuration: Integrated, single AC input.
- AC input voltage: 100 to 240V AC.
- Form factor: Rack mount, 1U.
- Dimensions (H x W x D): 1.72 x 17.2 x 10.58 in.
Specifications
| Performance specifications and feature highlights | |
| Throughput: Firewall (FW) + Application Visibility and Control (AVC) (1024B) | 3.3 Gbps |
| Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B) | 3.3 Gbps |
| Maximum concurrent sessions, with AVC | 400K |
| Maximum new connections per second, with AVC | 22K |
| Transport Layer Security (TLS) | 1.2 Gbps |
| Throughput: NGIPS (1024B) | 3.5 Gbps |
| IPSec VPN throughput (1024B TCP w/Fastpath) | 1.4 Gbps |
| Maximum VPN Peers | 400 |
| Cisco Device Manager (local management) | Yes |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by the Threat Defense Manager (FMC) or, alternatively, from the cloud with Cisco Defense Orchestrator |
| AVC | Standard, supporting more than 4000 applications, as well as geolocations, users, and websites |
| AVC: OpenAppID support for custom, open-source application detectors | Standard |
| Cisco Security Intelligence | Standard, with IP, URL, and DNS threat intelligence |
| Cisco IPS | Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
| Cisco Malware Defense for Networks | Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco AMP for Endpoints is also optionally available |
| Cisco Malware Analytics sandboxing | Available |
| URL filtering: number of categories | More than 80 |
| URL filtering: number of URLs categorized | More than 280 million |
| Automated threat feed and IPS signature updates | Yes: class-leading Collective Security Intelligence (CSI) from the Cisco Talos® group |
| Third-party and open- source ecosystem | Open API for integrations with third-party products; Snort® and OpenAppID community resources for new and specific threats |
| High availability and clustering | Active/standby |
| Cisco Trust Anchor Technologies | Cisco Firepower 1000 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details |
| ASA Performance and capabilities | |
| Stateful inspection firewall throughput | 6 Gbps |
| Stateful inspection firewall throughput (multiprotocol) | 3.5 Gbps |
| Concurrent firewall connections | 400,000 |
| New connections per second | 100,000 |
| IPsec VPN throughput (450B UDP L2L test) | 1.2 Gbps |
| Maximum VPN Peers | 400 |
| Security contexts (included; maximum) | 2; 5 |
| High availability | Active/active and Active/standby |
| Scalability | VPN Load Balancing |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator |
| Adaptive Security Device Manager | Web-based, local management for small-scale deployments |
| Hardware specifications | |
| Dimensions (H x W x D) | 1.72 x 17.2 x 10.58 in. |
| Form factor | Rack mount, 1U |
| Network interfaces | 8 x 1000BASE-T 4 x SFP |
| Management interfaces | 1x 1000BASE-T 1x Serial console (RJ-45) |
| USB | 1 x USB 3.0 Type-A (500mA) |
| Storage | 1 x 200 GB |
| Power supply configuration | Integrated, single AC input |
| AC input voltage | 100 to 240V AC |
| AC maximum current draw | < 2A at 100V, < 1A at 240V |
| AC maximum power draw | 100W |
| AC frequency | 50 to 60 Hz |
| AC efficiency | >85% at 50% load |
| Fans | 1 integrated fan |
| Noise | 34.2 dBA @ 25C, 56.8 dBA at highest system performance |
| Rack mounting | 2-post mounting Brackets included. |
| Weight | 3.6kg |
| Temperature: operating | 32 to 104°F (0 to 40°C) |
| Temperature: nonoperating | -13 to 158°F (-25 to 70°C) |
| Humidity: operating | 90% noncondensing |
| Humidity: nonoperating | 10 to 90% noncondensing |
| Altitude: operating | 9,843 ft (max) 3,000 m (max) |
| Altitude: nonoperating | 15,000 ft (max) |
