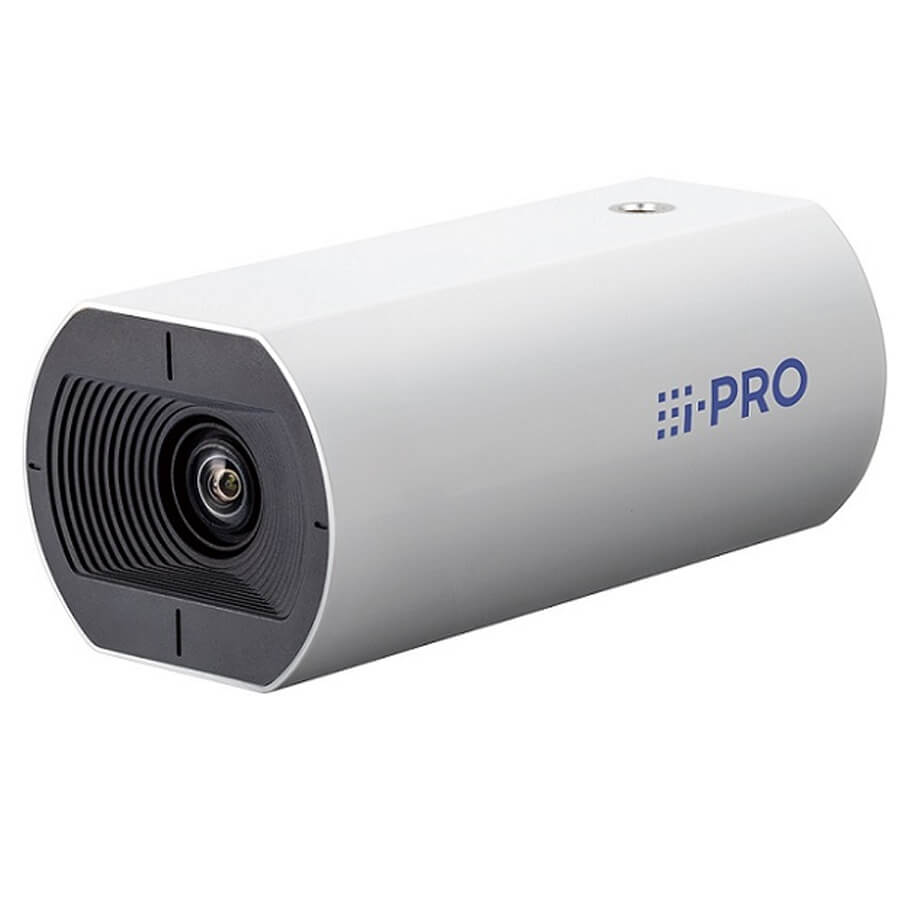

Camera IP 5.0 Megapixel I-PRO WV-U1142A
- Camera IP trong nhà 4MP Varifocal Lens.
- Cảm biến hình ảnh: 1/2.7 inch CMOS.
- Độ phân giải: 5MP (2688 × 1520).
- Tiêu cự: 2.9 ~ 7.3 mm.
- Ống kính lấy nét có động cơ và zoom có động cơ 2.5 lần.
- Hỗ trợ iA (Tự động thông minh).
- Hỗ trợ siêu động Super Dynamic 102dB.
- Tầm nhìn ban đêm có màu: 0.019 ~ 0.3 lx
- Chuẩn nén hình ảnh: H.265, Smart coding.
- Chế độ hành lang (90° hoặc 270° khi xoay hình ảnh).
- Cấu hình ONVIF G / S / T.
- Hỗ trợ thẻ nhớ
o microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
o microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
o microSD memory card: 2 GB
Thông số kỹ thuật
| Model | WV-U1142A |
| Image Sensor | Approx. 1/2.7 type CMOS image sensor |
| Minimum Illumination | Color: 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) Color: 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
| Maximum Shutter | Max. 1/10000 s to Max. 16/30 s |
| Intelligent Auto | On / Off |
| Super Dynamic | On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | 102 dB (Super Dynamic: On, Level: 31) |
| Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto: Off) |
| Fog Compensation | On / Off (only when Intelligent auto / auto contrast adjust: Off) |
| Maximum Gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Privacy Zone | On / Off (up to 8 zones available) |
| Image Rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) | On / Off Up to 20 characters (alphanumeric characters, marks) |
| Focal Length | 2.9 mm – 7.25 mm{1/8inches-9/32inches} |
| Zoom Ratio | 2.5x Optical zoom (Motorized zoom / Motorized focus) 3.3x FHD Extra Optical Zoom (when resolution is 1920x1080) |
| Angular Field of View | [16 : 9 mode] Horizontal : 44° (TELE) ~ 103° (WIDE), Vertical : 25° (TELE) ~ 57° (WIDE) *[4:3 mode] is not supported. |
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0(TELE) |
| Focusing Range | 1 m {39-3/8 inches} – ∞ |
| Camera Control | Brightness |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265 | [16 : 9 mode] 2560×1440, 1920×1080, 640×360, 320×180 *[4:3 mode] is not supported. |
| H.265 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast / Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off AUTO VIQS: On/ Off |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure Compatible microSDXC/microSDHC Memory Card: I-PRO 32 GB*, 64 GB**model *microSDHC card, **microSDXC card |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM mobile terminals |
| Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 100 mA, Approx. 4.8 W (Class 2 device) |
| Ambient Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) {Power On range: 0 °C to 50 °C (32°F to 122 °F)} |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Dimensions | 59 mm (W) x 49 mm (H) x 116 mm (D) |
| Mass (Approx.) | 200g |
| Finish | Main body: PC / ABS resin, i-PRO white |
- Bảo hành: 12 tháng.
