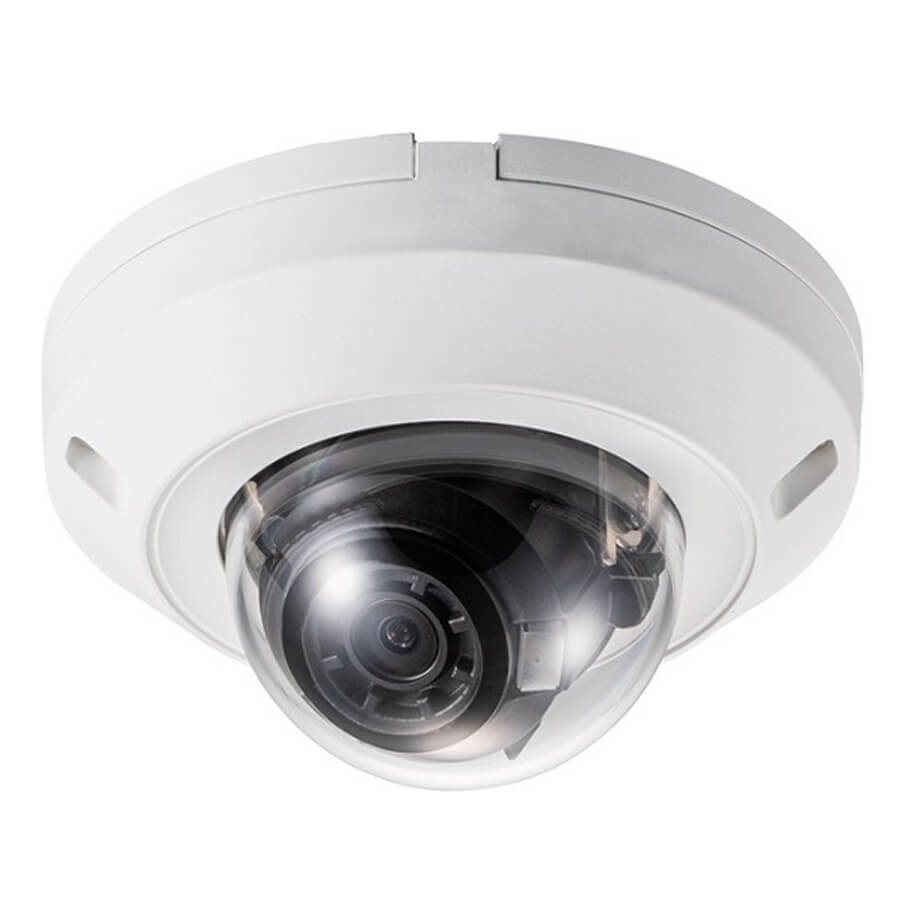

Camera IP Dome hồng ngoại 2.0 Megapixel I-PRO WV-U2530L
- Cảm biến hình ảnh: Approx. 1/3 type CMOS image sensor.
- Độ phân giải camera ip: 2.0 Megapixel.
- Tốc độ khung hình: 1 to 30 fps.
- Độ nhạy sáng tối thiểu: Color: 0.1 lx, BW: 0.04 lx; B/W: 0.0 lux (with IR LED on).
- Tầm quan sát hồng ngoại: 30 mét.
- Chuẩn nén hình ảnh: H.265.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nhiệt độ hoạt động: -30°C to 50°C.
- Nguồn điện: DC48V/100mA và PoE.
Đặc tính kỹ thuật
| Model | WV-U2530L |
| Camera | |
| Image Sensor | Approx. 1/3 type CMOS image sensor |
| Minimum Illumination | Color: 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) BW: 0 lx (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | ATW1/ ATW2/ AWC |
| Maximum shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s |
| Intelligent Auto | On/ Off |
| Super Dynamic | On/ Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.120 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back light compensation/ High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off The level can be set in the range of 0 to 31. (only when Super Dynamic/ Intelligent auto: Off) |
| Fog compensation | On/ Off, The level can be set in the range of 0 to 8. (only when Intelligent auto/ auto contrast adjust: Off) |
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light | High/ Middle/ Low/ Off Maximum irradiation distance: 30 m {Approx. 100 ft} |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Scene Change Detection (SCD) | On/ Off, 1 area available |
| Privacy Zone | On/ Off, Up to 8 zones available |
| VIQS | On/ Off, Up to 8 zones available |
| Image rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) | On/ Off, Up to 20 characters (alphanumeric characters, marks) |
| Lens | |
| Focal length | 3.2 mm {1/8 inches} |
| Optical zoom | 1x |
| Extra zoom | 1.0x - 1.5x(when resolution is 1280x720) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Angular Field of View | [16 : 9 mode] Horizontal: 100°, Vertical: 54° [4 : 3 mode] Horizontal: 81°, Vertical: 60° |
| Maximum Aperture Ratio | 1 : 2.0 |
| Focusing Range | 1 m {39-3/8 inches} – ∞ |
| Adjusting Angle | |
| Adjusting Angle | Horizontal (PAN) angle: -175°– +175° Vertical (TILT) angle: -30°– +80° Azimuth (YAW) angle: ±100° |
| Browser GUI | |
| Camera Control | Brightness |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution H.265 | [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180 [4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA |
| H.265 | - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast port(AUTO)/ Unicast port (MANUAL)/ Multicast |
| JPEG | - Image Quality: 10 steps |
| Smart Coding | - GOP (Group of pictures) control: On (Frame rate control)/ On (Advanced)/ On (Mid.)/ On (Low)/ Off - AUTO VIQS: On/ Off |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | - H.265 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/Backup upon network failure - Compatible microSDXC/microSDHC Memory Card: microSD speed class6 or higher I-PRO 32GB*, 64 GB** model *microSDHC card, **microSDXC card |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals |
| ONVIF Profile | G/ T |
| Alarm | |
| Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 100 mA, Approx. 4.8 W (Class 2 device) |
| Ambient Operating Temperature | -30 °C to +50 °C (-22 °F to +122 °F) {Power On range: -20 °C to +50 °C (-4°F to +122 °F)} |
| Ambient Operating Humidity | 10 to 100 % (no condensation) |
| Water and Dust Resistance | IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Wind Resistance | Up to 40 m/s {approx. 89 mph} |
| Dimensions | ø109 mm (W) x 62 mm (H) {ø4-9/32 inches × 2-7/16 inches (H)} Dome radius 30.5 mm {1-3/16 inches} |
| Mass (approx.) | 270 g {0.60 lbs} |
| Finish | Main body: Aluminum die cast / Polycarbonate resin, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: Polycarbonate resin, Clear |
- Bảo hành: 12 tháng.
